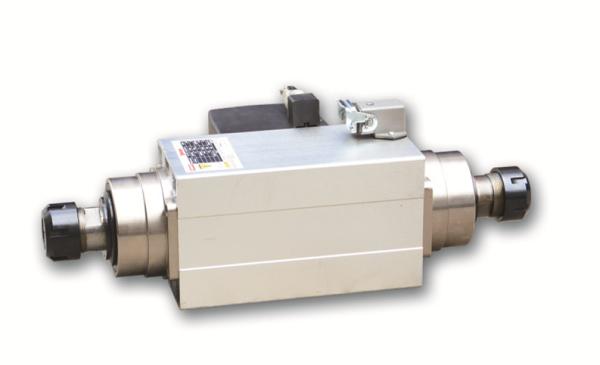

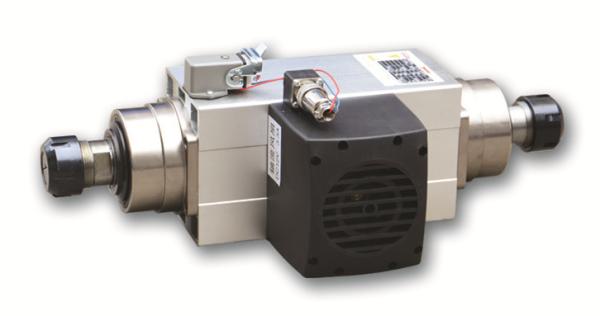

Gdz120x103-6 Cnc Milling Machine Spindle Motor ER32 6.5kw Air Cooled Double Head
Gdz120x103-6 Cnc Milling Machine Spindle Motor ER32 6.5kw Air Cooled Double Head
Gdz120x103-6 Cnc Milling Machine Spindle Motor ER32 6.5kw Air Cooled Double Head
Gdz120x103-6 Cnc Milling Machine Spindle Motor ER32 6.5kw Air Cooled Double Head
Specifications
Brand Name :
JSS
Model Number :
GDZ120*103-6D
Certification :
CE,ROHS,ISO
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
negotiate
Payment Terms :
T/T,Paypal,credit card, Western Union
Supply Ability :
2000pcs per weeks
Delivery Time :
20 work days
Packaging Details :
cartons
product name :
spindle motor double head
Key words :
spindle motor
ODM :
support
Application :
cutting plotter
Operating speed :
18000rpm
Voltage :
380V
Frequency :
300HZ
Cooling type :
air Cooling
Weight :
18kg
Diameter :
120*103mm
Lubrication :
Grease
Bearing type :
2*7008C P4
current :
12.6A
collet :
ER32
Description

CNC machine Spindle Motor Air Cooled 6.5kw double head spindle motor

Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.

We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.

1. Imported bearings; bearings with dust cover, more secure

2. Using grinding process, can improve motor concentricity and prolong life

3. Air-cooled motor, sculpture forceful, high precision, long life

Product Description

Product Features

speed:18000rpm

power :6.5Kw

Voltage :380V

size:120*103mm

The datasheet of our water cooling spindle motor

Model Speed(R/min) Voltage(V) Power(Kw) Current(A) Frequency(HZ) Lubrication Joint of nose Cooling type Bearing type Weight
GDZ120*103-6DD 18000 380 6.0 12.6 300 Grease ER32 Air-cooling 2*7008 P4
18



Motor size :

Gdz120x103-6 Cnc Milling Machine Spindle Motor ER32 6.5kw Air Cooled Double Head

Suitful pairs:

Gdz120x103-6 Cnc Milling Machine Spindle Motor ER32 6.5kw Air Cooled Double Head

Gdz120x103-6 Cnc Milling Machine Spindle Motor ER32 6.5kw Air Cooled Double Head

Gdz120x103-6 Cnc Milling Machine Spindle Motor ER32 6.5kw Air Cooled Double Head
