ER20 Cnc Router Spindle Motor Bearing 4 2.2kw 220VAC Water Cooling 24000RPM
ER20 Cnc Router Spindle Motor Bearing 4 2.2kw 220VAC Water Cooling 24000RPM
ER20 Cnc Router Spindle Motor Bearing 4 2.2kw 220VAC Water Cooling 24000RPM
ER20 Cnc Router Spindle Motor Bearing 4 2.2kw 220VAC Water Cooling 24000RPM
ER20 Cnc Router Spindle Motor Bearing 4 2.2kw 220VAC Water Cooling 24000RPM
ER20 Cnc Router Spindle Motor Bearing 4 2.2kw 220VAC Water Cooling 24000RPM
Specifications
Brand Name :
JSS-MOTOR
Model Number :
GDZ80-2.2B
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
30000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
Name :
Spindle motor
Power :
2.2KW
Speed :
24000RPM
Cooling :
water cooling
voltage :
220VAC
current :
8A
Collect :
ER20
Frequency :
400HZ
Description

2.2KW 220VAC water cooling spindle motor ER20 collect 4 bearings 24000RPM

2.2KW water cooling Spindle motor

Features:

High accuracy

Low noise

High rigidity

Long using life

Datasheet:

Model No Speed (R/Min) Power (KW) Voltage (V) Current (A) Frequency (HZ) Joint of nose Lubrication cooling type Bearing Type Weight (KG)
GDZ80*73-1.5 24000 1.5 220 5 400 ER11 Grease Air-Cooling 2*7002 2*7002 6
GDZ80*73-2.2 24000 2.2 220 6 400 ER20 Grease Air-Cooling 2*7005 2*7002 8
GDZ105*102-3.5 18000 3.5 380 220 7.5 15 300 ER20 Grease Air-Cooling 2*7005 2*7002 9
GDZ120*103-5.0 18000 5 380 12 600 ER32 Grease Air-Cooling 2*7008 P4 2*7004 P4 13
GDZ93*82-1.5 18000 1.5 380 220 3.8 6.8 300 ER20 Grease Air-Cooling 2*7005 2*7002 8
GDZ93*82-2.2 18000 2.2 380 220 5.5 10 300 ER25 Grease Air-Cooling 2*7007 P4 2*7002c P4 8
GDZ93*82-3.5 18000 3.5 380 220 8.8 15 300 ER25 Grease Air-Cooling 2*7007 P4 2*7002c P4 9
GDZ120*103-4.5 18000 4.5 380 9.5 300 ER32 Grease Air-Cooling 2*7008c P4 2*7004c P4 13
GDZ120*103-6.0 18000 6 380 12.6 300 ER32 Grease Air-Cooling 2*7008c P4 2*7004c P4 15
GDZ120*103-7.5 18000 7.5 380 17 600 ER32 Grease Air-Cooling 2*7008c P4 2*7004c P4 16
GDZ62-1.2 60000 1.2 220 4.5 1000 ER11 Grease Air-Cooling 2*7002C P4 DT 2*7000C P4 DT 4.4
36000 1.2 220 4.5 600 Grease Air-Cooling
24000 1.2 178 5 400 Grease Air-Cooling
GDZ65F-800 24000 0.8 220 5.5 10 400 ER11 Grease Air-Cooling 2*7002 P4 DT 2*7000 P4 DT 2.5
GDZ65-800 24000 0.8 150 220 6 5 400 ER11 Grease water-Cooling 2*7002C P4 DT 2*7000C P4 DT 3
GDZ80-1.5 24000 1.5 220 5 400 ER11 Grease water-Cooling 2*7002C P4 DT 1*7002C P4 4
GDZ80-1.5 24000 1.5 220 5 400 ER16 Grease water-Cooling 2*7004C P4 DT 1*7002C P4 5
GDZ80-2.2 24000 2.2 220 8 400 ER20 Grease water-Cooling 2*7005C P4 DT 2*7002C P4 5
GDZ80/1.5F 24000 1.5 220 5 400 ER11 Grease Air-Cooling 2*7002 2*7002 5
GDZ80/1.5F 24000 1.5 220 5 400 ER16 Grease Air-Cooling 2*7004 2*7002 6
GDZ80/2.2F 24000 2.2 220 5 400 ER16 Grease Air-Cooling 2*7004;2*7002 6
24000 2.2 220 5 400 ER20 Grease Air-Cooling 2*7005;2*7002
GDZ100-3.0 24000 3 380 220 7 12 400 ER20 Grease Water Cooling 2*7005C P4 1*7003C P4 9
GDZ100-3.7 24000 3.7 380 220 10 11 400 ER20 Grease Water Cooling 2*7005C P4 2*7003C P4 11.6
GDZ125-4.5 24000 4.5 380 13 400 ER25 Grease Water Cooling 2*7005C P4 2*7003C P4 22
GDZ125-5.5 24000 5.5 380 13 400 ER25 Grease Water Cooling 2*7005C P4 2*7003C P4 24

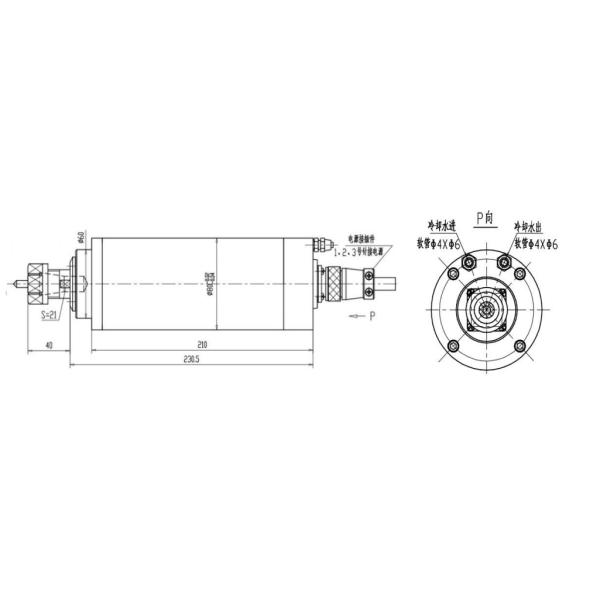

Dimensions:

ER20 Cnc Router Spindle Motor Bearing 4 2.2kw 220VAC Water Cooling 24000RPM

Application:

ER20 Cnc Router Spindle Motor Bearing 4 2.2kw 220VAC Water Cooling 24000RPM
