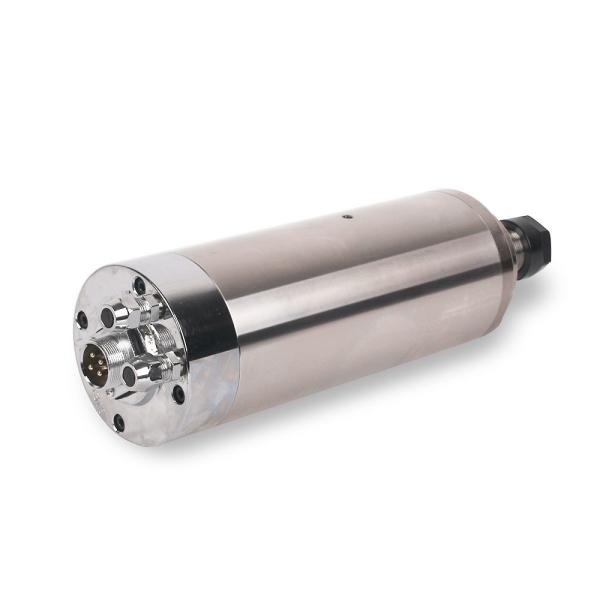

Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc
Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc
Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc
Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc
Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc
Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc
Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc
Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc
Specifications
Brand Name :
JSS
Model Number :
GDZ80-2.2B
Certification :
CE,ROHS,ISO
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
USD140-USD125
Payment Terms :
T/T,Paypal,credit card, Western Union
Supply Ability :
2000pcs per weeks
Delivery Time :
10 work days
Packaging Details :
cartons
product name :
water cooler spindle motor 2.2kw 24000rpm use for wooden cnc spindle router motor high speed spindle
Key words :
spindle motor
ODM :
support
Application :
Milling,Turning,Engraving,Grinding
Operating speed :
24000rpm
Voltage :
220V/380V
Frequency :
300HZ
Cooling type :
Water Cooling
Weight :
6.5kg
Diameter :
80mm
Lubrication :
Grease
Bearing type :
2*7008C P4 + 2*7004C P4
Description

water cooler spindle motor 2.2kw 24000rpm use for wooden cnc spindle router motor high speed spindle

Product Description

Product Features

Model:GDZ80-2.2 Torque: 0.79Nm Collet: ER20
Power: 2.2KW Voltage:220V Current:5.0A
Frequency:400HZ Speed: 24000rpm Cool: Water Cooling
Lub:Grease Weight:6.0kg
Warranty period: Bearings=half a year, other parts a year

The datasheet of our water cooling spindle motor

TYPE

speed

(rpm)

 motor Collect Product size

Weight

(kg)

power

(kw)

voltage

(V)

current

(A)

frequency

(HZ)

diameter

(mm)

 L1 L2 L3
GDZ48-300 60000 0.3 75 4.5 1000 Φ48 ER8 125 5 16.5 1.5
GDZ62-1.2 24000 1.2 178 5 400 Φ62 ER11 202 5 30.5 4.4
GDZ62-1.2 36000 1.2 220 4.5 600 Φ62 ER11 202 5 30.5 4.4
GDZ62-1.2 60000 1.2 220 4.5 1000 Φ62 ER11 202 5 30.5 4.4
GDZ65-800 24000 0.8 220 1.9 400 Φ65 ER11 161.5 5 28.5 2.6
GDZ65-800A 24000 0.8 220 1.9 400 Φ65 ER11 197 5 28.5 3
GDZ65-1.5 24000 1.5 220 5.5 400 Φ65 ER11 208 4.5 28.5 3.6
GDZ80-1.5C 24000 1.5 220 5 400 Φ80 ER11 181.5 12 27 4.4
GDZ80-1.5E 24000 1.5 220 5 400 Φ80 ER11 208 12 30 4.4
GDZ80-1.5,ER16 24000 1.5 220 5 400 Φ80 ER16 210 18 32 5
GDZ80-2.2B,ER20 24000 2.2 220 380 8 5 400 Φ80 ER20 210 40 20.5 5
GDZ85-1.5 24000 1.5 380 5 400 Φ85 ER20 251 5.5 40.5 13
GDZ85-2.2 24000 2.2 380 7.5 400 Φ85 ER20 251 5.5 40.5 13
GDZ100-3 24000 3 220 380 10 5.8 400 Φ100 ER20 221 31.5 44 9
GDZ100-3B 24000 3 220 380 12 7 400 Φ100 ER20 246 31.5 44 9.6
GDZ100-4 24000 4 220 380 13.8 8 400 Φ100 ER20 261 31.5 44 11.6
GDZ105-3.0N 24000 4 220 380 11.3 6.5 400 Φ105 ER20 235 30.5 40 13
GDZ105-3.2S 24000 3.2 380 6.5 400 Φ105 ER20 235 30.5 40 13
GDZ125-4.5 24000 4.5 380 8 400 Φ125 ER25 267 53 48 22
GDZ125-5.5 24000 5.5 380 9 400 Φ125 ER25 267 53 48 22
GDZ125-4.5S 24000 4.5 380 8 400 Φ125 ER25 267 53 48 28
GDZ125-5.5S 24000 5.5 380 9 400 Φ125 ER25 267 53 48 28

Suitful pairs:

Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc

Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc

Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc

Gdz-80-2.2b 2.2kw Water Cooled Spindle Motor For Cnc

Changzhou Jinsanshi mechatronics Co., Ltd., exporting stepper motors, servo motor,spindle motor,BLDC motor and their driver ,VFD. We spcialize in this field for many years, with the strength of high quality and competitive price in China.

We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!

our certification:
