GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
Specifications
Brand Name :
JSS
Model Number :
GDZ120*103-7.5 ATC
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
ATC spindle motor
Speed(R/min) :
24000
Power(Kw) :
7.5
Voltage(V) :
380
Current(A) :
155
Frequency(HZ) :
400
Joint of nose :
ISO30
Lubrication :
Grease
Cooling type :
Air-cooling
Bearing type :
2*7008//2*7006
Weight :
26
Description

Milling CNC machine ATC water air spindle motor 4.5kw 380V ISO30

Company information:

Changzhou Jinsanshi Mechatronics Co. Ltd. is a comprehensive company which specializes in producing and researching stepper motor and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine, textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine and other automatic controlling system.

We have pass ISO9001:2008, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.

Application:

Cutting Machine,Router machine , Engarving Machine, Milling Machine,

Date sheet

Model Speed(R/min) Voltage(V) Power(Kw) Current(A) Frequency(HZ) Lubrication Joint of nose Cooling type Bearing type Weight
GDZ120*103-47.5 ATC 24000 380 7.5 11 400 Grease ISO30 Air-cooling 2*7008//2*7006 26

Drawing

GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine

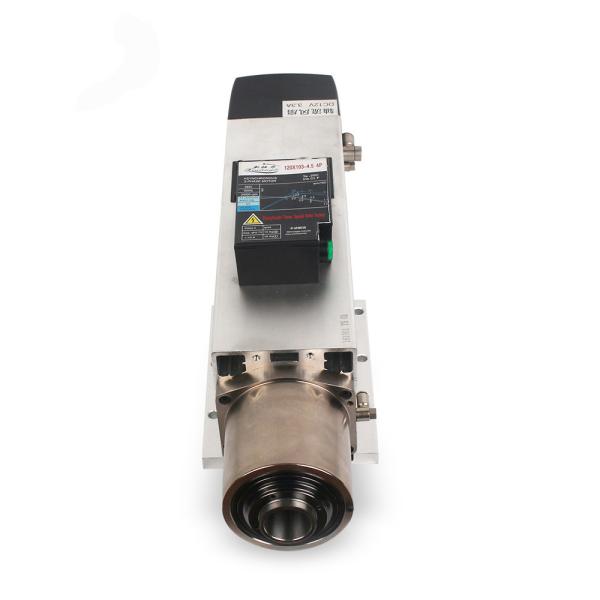

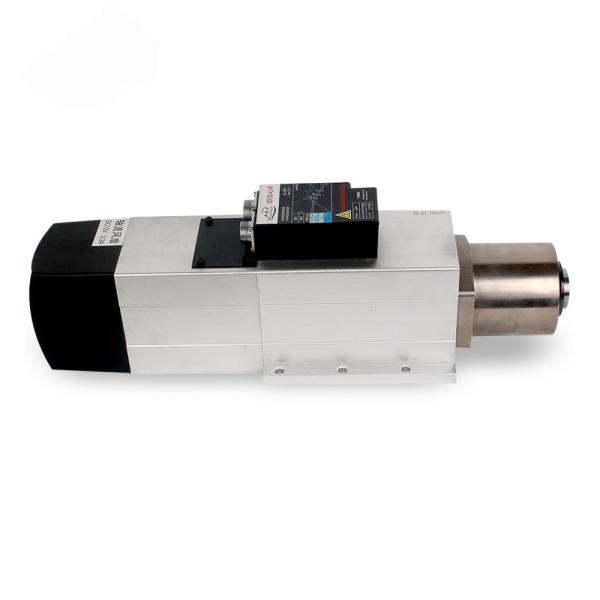

Product picture

GDZ120x103-7.5 7.5kw Cnc Atc Spindle Motor Air Cooled For Cutting Machine
