86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling Mach
86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling Mach
86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling Mach
86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling Mach
86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling Mach
86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling Mach
Specifications
Brand Name :
JSS
Model Number :
86HSE12N-BC38
Certification :
CE SGS
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
USD 98-108 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs month
Delivery Time :
5-10 days
Packaging Details :
Carton
Flange :
86*86mm
Holding torque :
12N.m
Current :
6.0A
Inductance :
6.5mH
Length :
156mm+-1
Shaft diameter :
14mm
Shaft length :
customized
Colour :
black
Rated voltage :
3.9V
Resistance :
1.3
Description

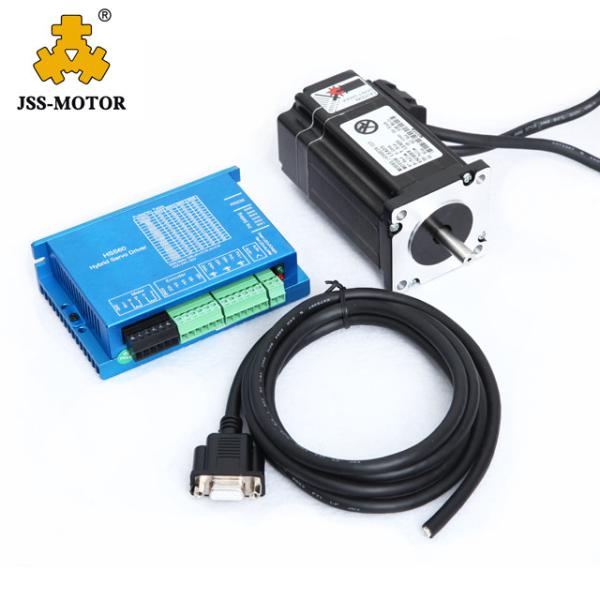

Nema 34 Closed Loop Stepper Motor 12N.m 6.0A 2 Phase Servo Motor with Encoder High Torque for CNC Engraving Milling Mach
Motor Specification

Model No. Step Angle Current (A) Resistance Inductance Holding torque Encoder Length Weight
86HSE4N-BC38 1.8 6 0.45 3.7mH 4.5N.m 1000ppr 82mm 2.8
86HSE8N-BC38 1.8 6 0.45 3.7mH 8.5N.m 1000ppr 118mm 4.2
86HSE12N-BC38 1.8 6 0.45 5.2mH 12.5N.m 1000ppr 156mm 5.65

86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling Mach

Motor Dimension

86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling MachTorque Curve

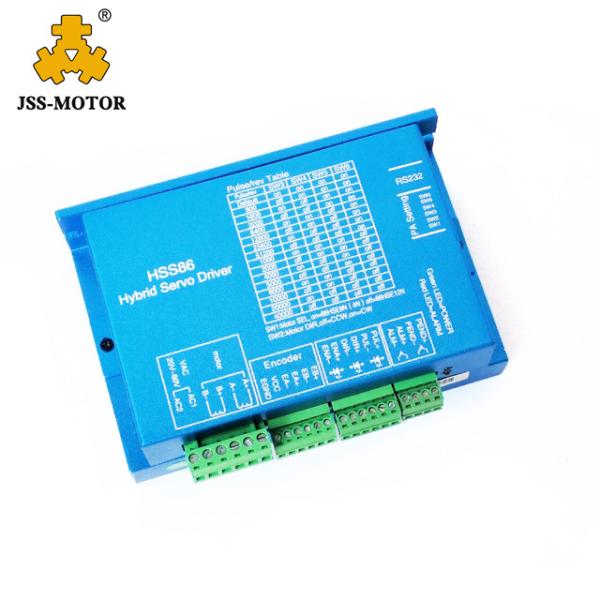

86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling MachDriver Details

​86hse12n-Bc38 Nema 34 Closed Loop Stepper Motor 12N.M 6A HSS86 For CNC Engraving Milling Mach

1.2.1 Stepper motor closed loop system, never lose step.
1.2.2 Improve motor output torque and working speed.
1.2.3 Automatic current adjustment based on load, lower temperature rising.
1.2.4 Suitable for all mechanical load conditions (include low rigidity belt pulley and
wheel), no need to adjust gain parameter.
1.2.5 Motor work smoothly and low vibration, high dynamic performance at
acceleration and deceleration.
1.2.6 No vibration from high speed to zero speed
1.2.7 Drive nema 34 series 4N.m, 8N.m, 12N.m closed loop stepper motor.
1.2.8 Pulses response frequency can reach 200KHZ
1.2.9 16 kinds microsteps choice, highest 51200microsteps/rev.
1.2.10 Voltage range: AC24~80V or DC30V~110V
1.2.11 Over-current, over-voltage and position ultra difference protection function

Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.

Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.

Packaging & Shipping

Our Services

1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.

2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C

3. We can provide you professional technical support. And our products quality gurantee is 18 months.

4. We accept products customize.

Company Information

Our main products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And by now we have new products about closed loop systems for nema 23, nema 24 and nema 34 sizes. In addition, we canproduce suitable drivers for all the motors. And we always research and develop new products.
