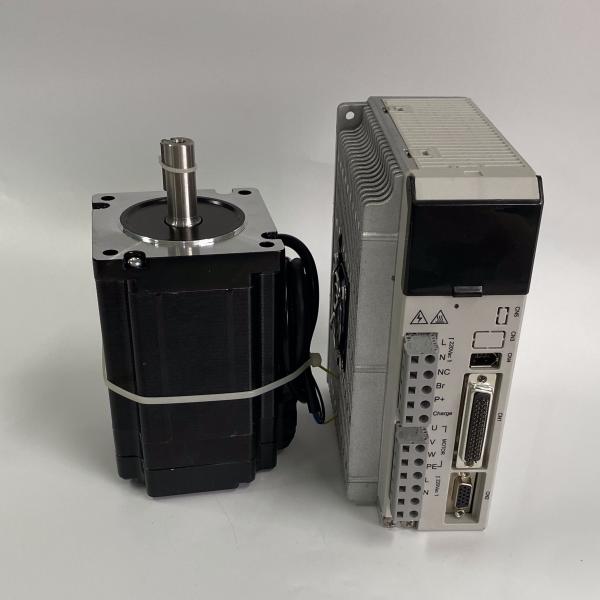

3 Phase Closed Loop Stepper Motor 110mm 12N.M 3HSS2260 Digital Stepper Driver Nema 42
3 Phase Closed Loop Stepper Motor 110mm 12N.M 3HSS2260 Digital Stepper Driver Nema 42
3 Phase Closed Loop Stepper Motor 110mm 12N.M 3HSS2260 Digital Stepper Driver Nema 42
3 Phase Closed Loop Stepper Motor 110mm 12N.M 3HSS2260 Digital Stepper Driver Nema 42
Specifications
Brand Name :
JSS-MOTOR
Model Number :
110HCE12N-B39 + 3HSS2260
Certification :
CE, RoHS, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
30000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
Name :
closed loop stepper motor
frame size :
nema 42
Step Angle :
1.2°
Current :
4.2A
Reisitance :
1.2Ω
Inductance :
13mH
Holding Torque :
12N.m
Body Length :
139mm
Encoder Resolution :
1000PPR
Suitbale Driver Type :
3HSS2260
Description

3-phase110mm 12N.m 110HCE closed loop stepper motor and digital stepper driver 3HSS2260

Electrical Parameters:

Mode Step angle Current (A) Resistance (Ω±10%)

Inductance

(mH±20%)

Holding torque

(N.m)

Motor length

(mm)

Encoder

Resolution(PPR)

Weight(kg)

 suitbale driver
110HCE12N-B39 1.2° 4.2 1.2 13 12 139 1000 8 3HSS2260

Closed Loop Stepper Motor and Driver:

Features:

1. 32-bit DSP and vector closed-loop control technology
2. Without losing step, high accuracy in position
3. Improve the motor output torque and working speed
4. Variable current control technology, restrain motor temperature rise
5. Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no need to adjust the gain parameter
6. Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate
7. The ability of zero speed static without vibration
8. Adapt to 3-phase 86(NEMA34) and 110(NEMA 42) hybrid servo motor
9. Maximum step-pulse frequency 200KHZ
10. Micro step 200-65535 pulse/rev
11. Voltage range AC150-220V
12 . Over current, over voltage and over position protection
13. Six digital tube display, easy to set parameters and monitor the motor running state


Motor Dimension:

3 Phase Closed Loop Stepper Motor 110mm 12N.M 3HSS2260 Digital Stepper Driver Nema 42

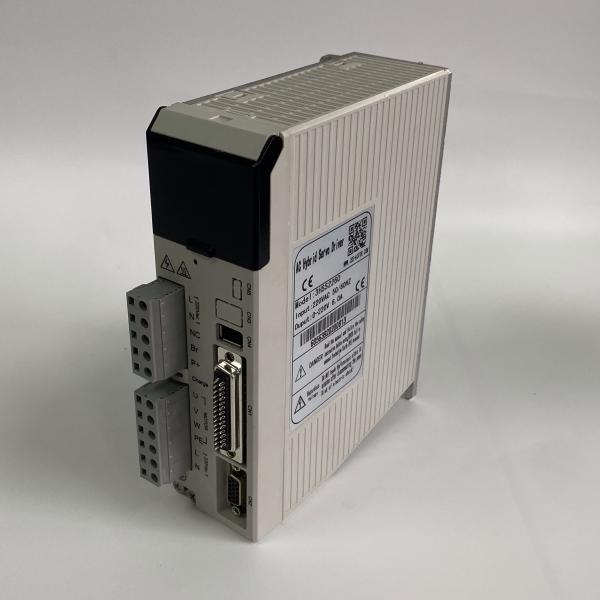

Driver installation size: (mm)

3 Phase Closed Loop Stepper Motor 110mm 12N.M 3HSS2260 Digital Stepper Driver Nema 42

Driver Wring Diagram:

3 Phase Closed Loop Stepper Motor 110mm 12N.M 3HSS2260 Digital Stepper Driver Nema 42

Applications:

It is suitable for the automation equipment and instrumentation which require
large torque, such as: engraving machine, sewing machine, wire-stripping machine, marking machine, cutting machine, laser photo composing machine, plotting instrument, numerical control machine tool, automatic assembly equipment and so on. It is with good performance in the equipment with little noise and high speed.

3 Phase Closed Loop Stepper Motor 110mm 12N.M 3HSS2260 Digital Stepper Driver Nema 42
