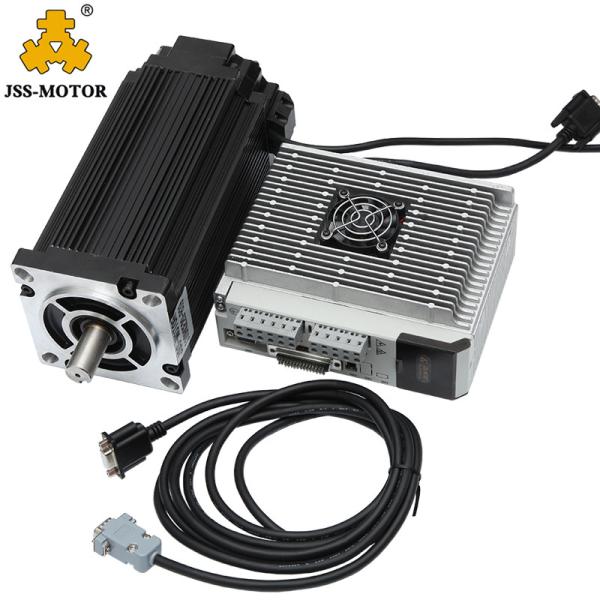

Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm
Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm
Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm
Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm
Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm
Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm
Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm
Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm
Specifications
Brand Name :
JSS-MOTOR
Model Number :
110HCE12N-B39+3HSS2206
Certification :
CE,ROHS,ISO
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
USD180-USD300
Payment Terms :
T/T,Paypal,credit card, Western Union
Supply Ability :
200pcs per weeks
Delivery Time :
10 work days
Packaging Details :
cartons
product name :
nema 42 high voltage 220VAC closed loop motor driver with screen display 2000rpm speed
Key words :
closed loop motor
Encoder resolution :
1000ppr
shape :
square
Weight :
25kg
Color :
black
Motor type :
closed loop
driver model :
HSS2206
RS232 :
support
ODM :
support
Usage :
Automatic Industry,CNC Router,Universal,industry machine,pharmaceutical equipment
Description

nema 42 high voltage 110-220VAC closed loop motor driver with screen display 2000rpm speed

Product Description

Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.

NEMA42 Easy Servo Series(NEMA42 Closed Loop series)

Mode Step angle Current (A) Resistance (Ω±10%)

Inductance

(mH±20%)

 Holding torque(N.m) Motor length(mm)

Encoder

Resolution(PPR)

 Applicable Driver
110HCE12N-B39 1.2° 4.2 1.2 13 12 139 1000 3HSS2260
110HCE12N-B39 1.2° 6.4 0.9 9.5 16 180 1000 3HSS2260
110HCE20N-B39 1.2° 4.2 1.88 18 20 221 1000 3HSS2260

Motor Eelctrical Parameters:

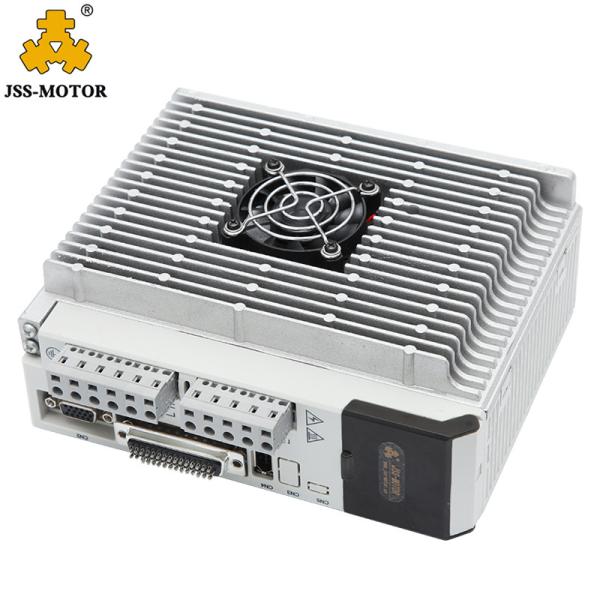

Close Loop Driver 3HSS2260

Features

1, 32-bit DSP and vector closed-loop control technology
2, Without losing step, high accuracy in position
3, Improve the motor output torque and working speed
4, Variable current control technology, restrain motor temperature rise
5, Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no
need to adjust the gain parameter
6, Smooth and reliable moving, low vibration, great improvement in accelerate and
decelerate
7, The ability of zero speed static without vibration
8, Adapt to 3-phase 86(NEMA34) and 110(NEMA 42) hybrid servo motor
9, Maximum step-pulse frequency 200KHZ
10, Micro step 400-60000 pulse/rev
11, Voltage range AC150-240V
12, Over current, over voltage and over position protection
13, Six digital tube display, easy to set parameters and monitor the motor running
state

Driver installation size: (mm)

Driver dimension (mm):

Wiring Diagram:

Packing and shipment:

Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm

We have standard package for our products. We can also make it as per your special requirements.

Closed Loop Stepper Driver Nema 42 220VAC With Screen Display 0-2000 Rpm

Shipping can be arranged as per your requirements.

1. By sea

2. By Air

3. By Express, like DHL, Fedex, UPS etc.

Changzhou Jinsanshi mechatronics Co., Ltd., exporting stepper motors, servo motor,spindle motor,BLDC motor and their driver ,VFD. We spcialize in this field for many years, with the strength of high quality and competitive price in China.

We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!
