NEMA42 Easy Servo Series(NEMA42 Closed Loop series)

Motor Eelctrical Parameters:

Motor dimension:mm

Torque/Frequency Curve

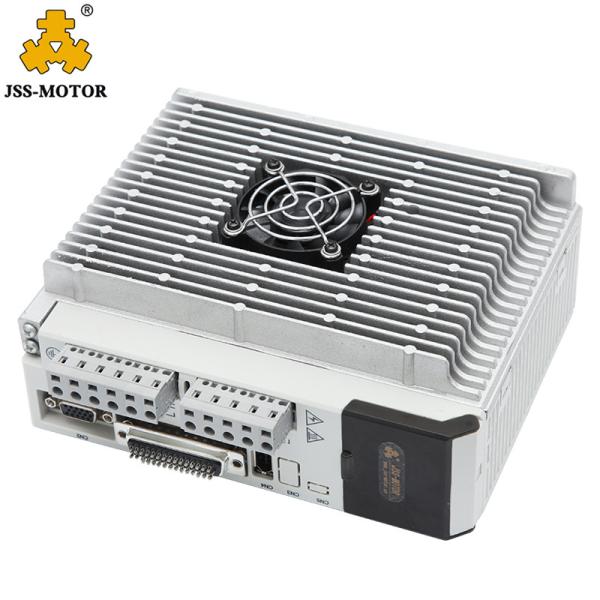

Driver 3HSS2260

Features

1, 32-bit DSP and vector closed-loop control technology
2, Without losing step, high accuracy in position
3, Improve the motor output torque and working speed
4, Variable current control technology, restrain motor temperature rise
5, Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no
need to adjust the gain parameter
6, Smooth and reliable moving, low vibration, great improvement in accelerate and
decelerate
7, The ability of zero speed static without vibration
8, Adapt to 3-phase 86(NEMA34) and 110(NEMA 42) hybrid servo motor
9, Maximum step-pulse frequency 200KHZ
10, Micro step 400-60000 pulse/rev
11, Voltage range AC150-240V
12, Over current, over voltage and over position protection
13, Six digital tube display, easy to set parameters and monitor the motor running
state

Microstep selection:

Driver dimension (mm):

Wiring Diagram:

Produce process

Different specification of stepper motor with competitive price for your choice:

We have standard package for our products. We can also make it as per your special requirements.

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.

Changzhou Dewo Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.

Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.

If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!

Certifications:

Contact Informations:

Changzhou Dewo Motor Co.,Ltd

Website: Http://dewochina.com

Address: Dai Luo Road 135,Luoyang Town, Wujin District, Changzhou City, Jiangsu Province, China

1.Q:Can I get some samples first?

A:Sure, we are honored to offer you samples for your check.

2.Q:Do you have the products in stock?

A:Our products are manufactured according to your order except the normal products.

3.Q:What's the delivery time?

A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
