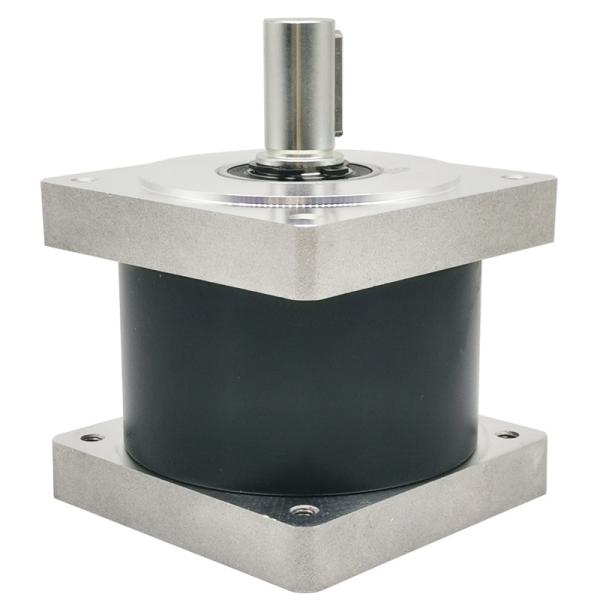

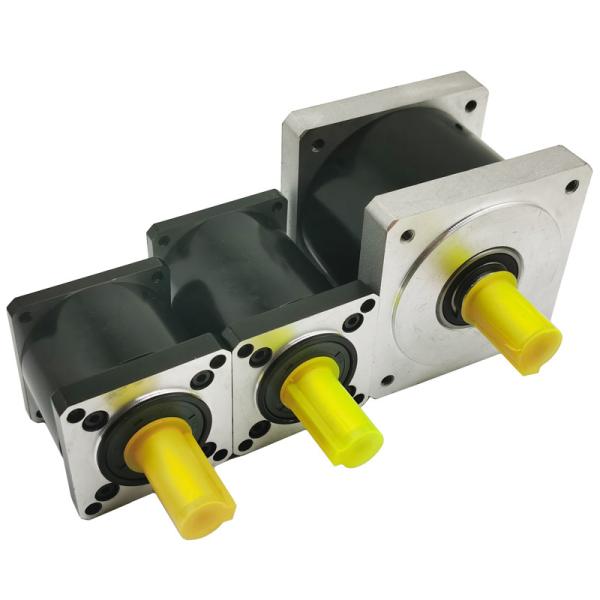

Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm
Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm
Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm
Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm
Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm
Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm
Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm
Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm
Specifications
Brand Name :
JSS
Model Number :
JSS86PX60
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
USD$65/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
800pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
Planetary gearbox
Gear ratio :
50
Length :
87mm
Rated load :
80N.M
Max load :
160N.M
Efficiency :
94%
Back flash :
<=155arcmin
Weight :
2.5kg
Rated input speed :
3000rpm
Max input speed :
5000rpm
Protection level :
IP65
Noise :
<=45dB
Life :
20000h
Application :
CNC machine
Description
Stepper motor with nema34 planetary gear box 1:50 gear ratio
Product Description

Application:

Our gear boxes are widely used in engraving machine, 3d printer ,bending machine.

Changzhou Jinsanshi Mechatronics Co.,Ltd.., Ltd, located in Changzhou city, Jiangsu Province, We have two our own production base and a strong R&D team.

Till now, JSS has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake.

Any interest, please contact with us, We will reply you asap.

Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm

Gear box use with stepper motor to reach high torque , it have varied gear ratio.

General specification:

Specification Second level
Gear Ratio 60
Length L1/mm 87
Rated Load/Nm 80
Mad Load/Nm 160
Efficiency 94
Back flash/arcmin <=25
Weight/Kg 2.5
Rated input speed/rpm 3000

Max input speed/rpm

 5000
Protection level IP65
lubricating Grease (lubricating the body)
Noise/dB <=45
Life/h 20000


Dimensions:

(Unit=mm)

Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm

Firstclass service:

customization and OEM is available.

Warranty: 12 months

Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.

Contact me :Daniel Chen

WhatsApp: +86 18306110590

Phone: +86 18306110590

Product Description

Produce process

Engraving Machine Stepper Motor With Nema 34 Planetary Reducer Gearbox Ratio 1 50 87mm

Our Services

Different specification of stepper motor with competitive price for your choice:

Packaging & Shipping

We have standard package for our products. We can also make it as per your special requirement..

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.

Company Information

Certifications:
