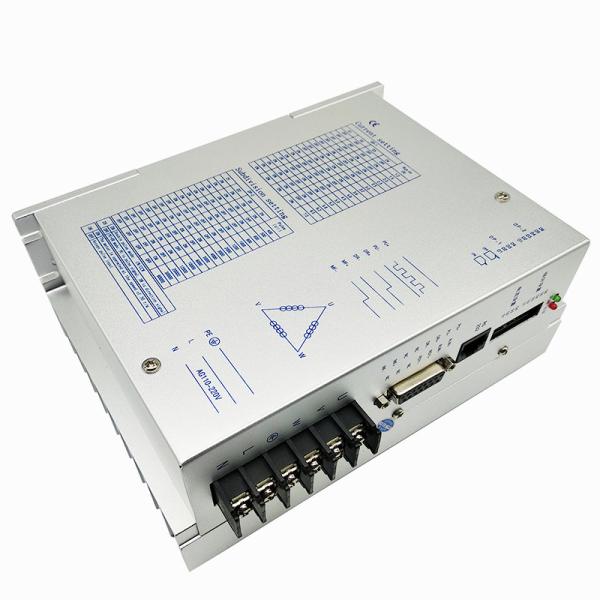

5a 5 amp stepper motor driver 3 phase 110-220VAC input 3DM860D
5a 5 amp stepper motor driver 3 phase 110-220VAC input 3DM860D
Specifications
Brand Name :
JSS-MOTOR
Model Number :
3DM860D
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
30000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
Name :
step driver
Voltage Range :
110-220VAC
Current Range :
1.2-7A
Microstep :
400-60000
Highest Respond frequency :
200KHZ
Phase No. :
3 phase
Suitable driver :
nema 34, nema 42, nema 52 3-phase stepper motor
weight :
1.7kg
Description

110-220VAC input 3-phase step motor driver for 3-phase step motor

3 -Phase Digital Hybird Stepper Driver

Features

1. 3-phase digital stepper driver, adoption of 32-bit DSP technology

2. Low-noise, low-vibration and low temperature rising

3. Voltage 110v-220VAC

4. With 8 stalls output current setting, peak current 7.0A

5. With 16 stalls microstep subdivision setting, the highest resolution of 60000 steps / turn

6. Automatic half current, self-test, over voltage, under voltage, over current protection

7. Internal optical isolation, the highest response frequency of up to 200Kpps

8. Suitable for nem42, nema52 3-phase Hybird stepper motor between1.2-7.0A

9. When the step pulse stops for more than 100ms, the coil current is automatically reduced to half of the set current, effectively reducing the motor heat

10. Signal voltage : 5V ~ 24V compatible

11. Working temperature: -30 ℃ ~ 85 ℃

Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor, brushless dc driver. And we are always researching and developing new products.


Application:

It can be applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.

Current selection

Current D1 D2 D3 D4
1.2A off off off off
1.5A off off off on
2.0A off off on off
2.3A off off on on
2.5A off on off off
3.0A off on off on
3.2A off on on off
3.6A off on on on
4.0A on off off off
4.5A on off off on
5.0A on off on off
5.3A on off on on
5.8A on on off off
6.2A on on off on
6.5A on on on off
7.0A on on on on


5a 5 amp stepper motor driver 3 phase 110-220VAC input 3DM860D

Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.

Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.

Packaging & Shipping

Our Services

1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.

2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C

3. We can provide you professional technical support. And our products quality gurantee is 18 months.

4. We accept products customize.

Company Information
Our main products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And by now we have new products about closed loop systems for nema 23, nema 24 and nema 34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.

Company Show:
