6 Amp 3 Phase Digital Stepping Driver 3dm683 Driver 24-60VDC 3.2-8.3A
6 Amp 3 Phase Digital Stepping Driver 3dm683 Driver 24-60VDC 3.2-8.3A
6 Amp 3 Phase Digital Stepping Driver 3dm683 Driver 24-60VDC 3.2-8.3A
6 Amp 3 Phase Digital Stepping Driver 3dm683 Driver 24-60VDC 3.2-8.3A
Specifications
Brand Name :
JSS-MOTOR
Model Number :
3DM683
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
30000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
Name :
step driver
Voltage Range :
24-60VDC
Current Range :
3.2-8.3A
Microstep :
200-51200
Highest Respond frequency :
200KHZ
Phase No. :
3 phase
Suitable driver :
nema 23 and nema 34 3-phase stepper motor
size :
118*75*33mm
weight :
0.3kg
Description

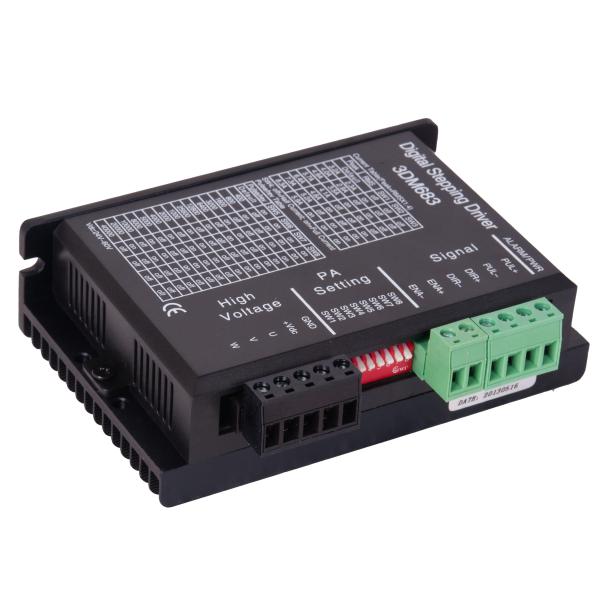

3-phase digital stepper driver 3DM683 voltage 24-60VDC current 3.2-8.3A


3-phase stepper motor driver:

Features

1. Adoption of 32-bit DSP, pure sine wave subdivision technology.

2. Low-noise, low-vibration and low temperature rising

3. Voltage 24-60VDC

4. With 8 stalls output current setting, peak current 8.3A

5. With 16 stalls microstep subdivision setting

6. Automatic half current, self-test, over voltage, under voltage, over current protection

7. Internal optical isolation, highest frequency response 200KHZ.

8. Suitable for current range 3.2-8.3A nema23, nema34 3-phase Hybird stepper motor

Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor, brushless dc driver. And we are always researching and developing new products.


Application:

It can be applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.

Current selection

Peak RMS SW1 SW2 SW3
Default OFF OFF OFF
3.2A 2.3A ON OFF OFF
4.0A 2.9A OFF ON OFF
4.9A 3.5A ON ON OFF
5.7A 4.1A OFF OFF ON
6.4A 4.6A ON OFF ON
7.3A 5.2A OFF ON ON
8.3A 5.9A ON ON ON

Microstep selection

Pulse/Rev SW5 SW6 SW7 SW8
Default ON ON ON ON
800 OFF ON ON ON
1600 ON OFF ON ON
3200 OFF OFF ON ON
6400 ON ON OFF ON
12800 OFF ON OFF ON
25600 ON OFF OFF ON
51200 OFF OFF OFF ON
1000 ON ON ON OFF
2000 OFF ON ON OFF
4000 ON OFF ON OFF
5000 OFF OFF ON OFF
8000 ON ON OFF OFF
10000 OF ON OFF OFF


Dimensions:
6 Amp 3 Phase Digital Stepping Driver 3dm683 Driver 24-60VDC 3.2-8.3A

Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.

Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.

Packaging & Shipping

Our Services

1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.

2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C

3. We can provide you professional technical support. And our products quality gurantee is 18 months.

4. We accept products customize.

Company Information
Our main products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And by now we have new products about closed loop systems for nema 23, nema 24 and nema 34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.
