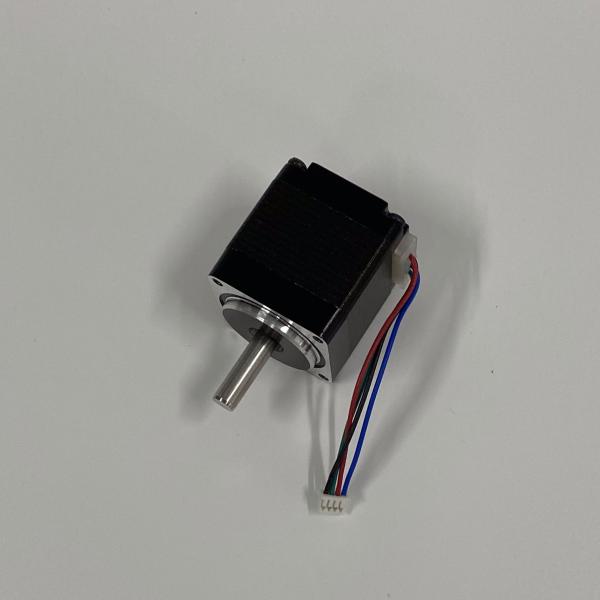

28hs32-0674 Micro Nema 11 Stepper Motor 1.8 2 Phase 0.67A 0.06N.M 28x28x32mm Chip Mounter Machine
28hs32-0674 Micro Nema 11 Stepper Motor 1.8 2 Phase 0.67A 0.06N.M 28x28x32mm Chip Mounter Machine
28hs32-0674 Micro Nema 11 Stepper Motor 1.8 2 Phase 0.67A 0.06N.M 28x28x32mm Chip Mounter Machine
28hs32-0674 Micro Nema 11 Stepper Motor 1.8 2 Phase 0.67A 0.06N.M 28x28x32mm Chip Mounter Machine
Specifications
Brand Name :
JSS-MOTOR
Model Number :
28HS32-0674
Certification :
CE, RoHS, ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
50000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
name :
mini stepper motor
size :
28*28*32mm
phase NO. :
2
step angle :
1.8°
phase current :
0.67A
phase voltage :
3.88VDC
phase resistance :
5.8Ω
phase inductance :
3.2mH
holding torque :
0.6kg.cm
motor length :
32mm
lead wires :
4
weight :
0.11kg
Description

Micro Nema 11 Stepper Motor 0.67A 28HS32 Two Phase 0.06N.M Chip Mounter Machine

Model No Step Angle(°) Rated Voltage(V) Rated Current (A) Phase Resistance(Ω) Phase Inductance (mH) Holding Torque (g.cm) Rotor Inertia (g.cm²) Motor Length (mm) Leads No. Motor Weight(g)
28HS32-0674 1.8 3.88 0.67 5.8 3.2 600 9 32 4 110

High-quality raw material

High-specification permanent magnet silicon steel

High positioning accuracy, output torque,

Fast response, low noise and low vibration.

Applications:

Stepper motor are widely applied in 3D printer, mini cnc router, engraving machine, textile machine, medical equipment, stage light equipment, robotic, CNC router, music fountain, and other industrial automatic equipment.

Our main products include from size NEMA 8, NEMA11, NEMA14, NEMA16, NEMA17, NEMA 23, NEMA24, NEMA 34, NEMA 42, NEMA52 series hybrid stepper motor, and variable sizes linear stepper motor, geared stepper motor, stepper motor with brake. And we have products about easy servo system of nema17, nema23, nema24 and nema34 sizes. In addition, we can produce suitable drivers for all the motors. And we are always researching and developing new products.

NEMA 11 2-phase 1.8° hybrid stepper motor

Specification:

Step Angel 1.8°
Temperature Rise 80℃
Ambient Temperature -20℃ Max ~ +50℃
Isulation Resistence 100MΩ min., 500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02 Max (450g-load)
Shaft Axial Play 0.08 Max (450g-load)
Max. Radial Force 75N (20mm from the flange)
Max. Axial Force 15N

Electrical Specifications:

Model No Step Angle(°) Rated Voltage(V) Rated Current (A) Phase Resistance(Ω) Phase Inductance (mH) Holding Torque (g.cm) Rotor Inertia (g.cm²) Motor Length (mm) Leads No. Motor Weight(g)
28HS28-0354 1.8 4.2 0.35 12 5.8 450 6 28 4 105
28HS28-0604 1.8 2.52 0.6 4.2 2.2 450 6 28 4 105
28HS32-0674 1.8 3.88 0.67 5.8 3.2 600 9 32 4 110
28HS45-0674 1.8 4.56 0.67 6.8 4.9 950 12 45 4 140
28HS51-0674 1.8 3.2 0.67 9.2 7.2 1200 18 51 4 200

Dimensions:

28hs32-0674 Micro Nema 11 Stepper Motor 1.8 2 Phase 0.67A 0.06N.M 28x28x32mm Chip Mounter Machine

Company information:

28hs32-0674 Micro Nema 11 Stepper Motor 1.8 2 Phase 0.67A 0.06N.M 28x28x32mm Chip Mounter Machine

Packing:

28hs32-0674 Micro Nema 11 Stepper Motor 1.8 2 Phase 0.67A 0.06N.M 28x28x32mm Chip Mounter Machine
FAQ
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5. Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
