Nema 52 3 Phase 220VAC Hybrid Stepper Motor 50N.M Torque For Packing Machine
Nema 52 3 Phase 220VAC Hybrid Stepper Motor 50N.M Torque For Packing Machine
Specifications
Brand Name :
JSS-MOTOR
Model Number :
130HC286-7003
Certification :
CE, RoHS, ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
50000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
name :
step motor
size :
nema 42
phase NO. :
2
step angle :
1.8°
phase current :
7A
phase resistance :
1.82Ω
phase inductance :
18.5mH
holding torque :
50N.m
motor length :
286mm
weight :
22kg
Description

Nema 52 3-Phase 220VAC Stepper Motor 50N.M Torque For Packing Machine

NEMA 52 2-phase 1.2° hybrid stepper motor

Electrical Specifications:

Model No Step Angle(°) Rated Current (A) Phase Resistance(Ω) Phase Inductance (mH) Holding Torque (N.M) Motor Length (mm) Wiring. Motor Weight(Kg)
130HC125-10003 1.2 10 0.83 7.65 15 125 Four-pin Plug 6
130HC135-10003 1.2 10 0.82 7.99 17 135 7
130HC139-10003 1.2 10 0.75 9 20 139 8
130HC230-10003 1.2 10 1.3 12.66 40 230 15
130HC286-7003 1.2 7 1.82 18.5 50 286 20

Specification:

Step Angel 1.8°
Temperature Rise 80℃
Ambient Temperature -20℃ Max ~ +50℃
Isulation Resistence 100MΩ min., 500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02 Max (450g-load)
Shaft Axial Play 0.08 Max (450g-load)
Max. Radial Force 75N (20mm from the flange)
Max. Axial Force 15N

Our main products includes all series hybrid stepper motor, stepper servo motor, intergrated stepper motor, and linear stepper motor, geared stepper motor, stepper motor with brake. And stepper motor driver for all the motors.

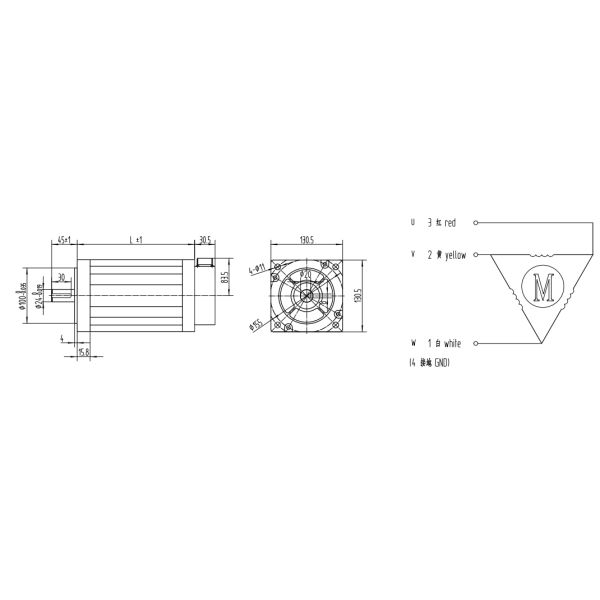

Dimensions:

Nema 52 3 Phase 220VAC Hybrid Stepper Motor 50N.M Torque For Packing Machine

Nema 52 3 Phase 220VAC Hybrid Stepper Motor 50N.M Torque For Packing Machine
