110HS201 1pc 1.8 Degree Nema 42 High Torque Stepper Motor For Textile Equipment
110HS201 1pc 1.8 Degree Nema 42 High Torque Stepper Motor For Textile Equipment
Specifications
Brand Name :
JSS
Model Number :
JSS110HS201-8004A19-B55
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
US$102.17~103.08/pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
China high quality nema42 1.8degree 33N.M 2phase hybrid stepper motor used for robot arm
Phase :
2 phase
Step Angle :
1.8degree
Rated Current :
8.0A
Phase Resistance :
0.71Ω
Phase Inductance :
16mH
Holding torque :
24N.M
Motor Length :
201mm
Lead wires No. :
4
Motor Weight :
11.7kg
Color :
black
Description
Product Description
China high quality nema42 1.8degree 33N.M 2phase hybrid stepper motor used for robot arm

Changzhou JSS Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.

Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.

If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!

Application

(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical treatment.

Technical Parameters:

Step Angle 1.8°
Temperature Rise 80℃ Max
Ambient Temperature -20℃ Max∼+50℃
Insulation Resistance 100M ΩMin.,500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02Max (450g-load)
Shaft Axial Play 0.08Max (450g-load)
Max. Radial Force 220N (20mm from the flange)
Max. Asial Force 60N

Technical Specifications:
Model No.

Step Angle

(°)

 Current /Phase (A)

Resistance /Phase

(Ω)

 Inductance Phase (mH) Holding Torque (kg.cm) Rotor Inertia (g.cm²) Motor Length (mm) Lead Wires No. Motor Weight (kg)
110HS99-5504 1.8 5.5 0.72 10.9 11 5500 99 4 5
110HS115-6004 1.8 6 0.44 7.17 12 7200 115 4 6.2
110HS150-6504 1.8 6.5 0.72 12.8 20 10900 150 4 8.4
110HS168-6004 1.8 6 0.9 16 24 13000 168 4 9.8
110HS201-8004 1.8 8 0.71 15.38 33 16200 201 4 11.7

Installation Size: Wiring Diagram:

(Unit=mm)

L1 and L2 can be customized according to customers' requirements.

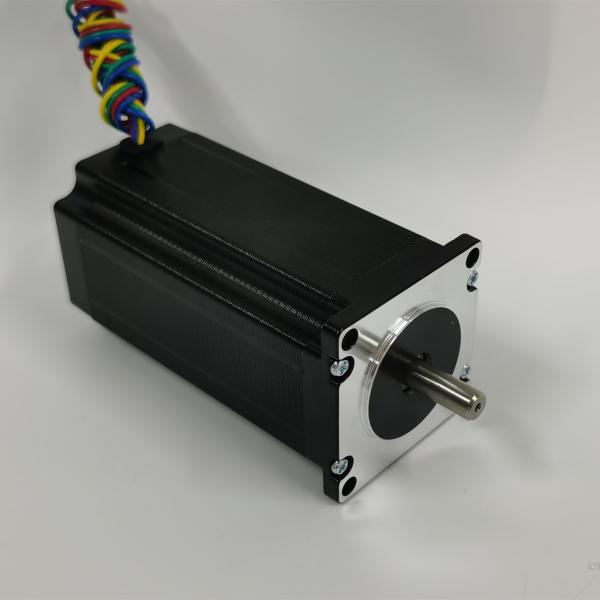

Picture of real products

110HS201 1pc 1.8 Degree Nema 42 High Torque Stepper Motor For Textile Equipment110HS201 1pc 1.8 Degree Nema 42 High Torque Stepper Motor For Textile Equipment

First-class service:

customization and OEM is available.

Warranty: 12 months

Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.

Contact me :

WhatsApp: +86 18306110590

Phone: +86 18306110590

Packaging & Shipping

We have standard package for our products. We can also make it as per your special requirements.

110HS201 1pc 1.8 Degree Nema 42 High Torque Stepper Motor For Textile Equipment

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
