Specifications
Brand Name :
JSS
Model Number :
57HS76-3004A
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 8-13 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pcs month
Delivery Time :
5-10 days
Packaging Details :
Carton
Flange :
57*57mm
Holding torque :
2N.m
Current :
3.0A
Length :
76mm
Shaft diameter :
8mm
Shaft length :
customized
Colour :
black
Product name :
NEMA23 stepper motor
ODM :
support
Key word :
stepping motor
Description

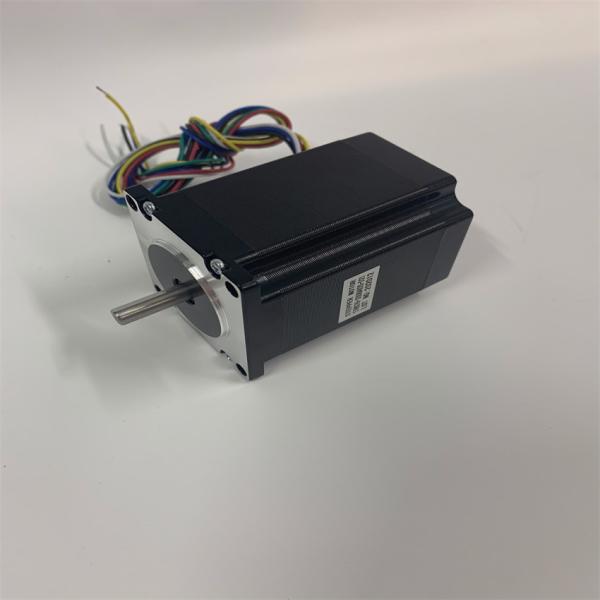

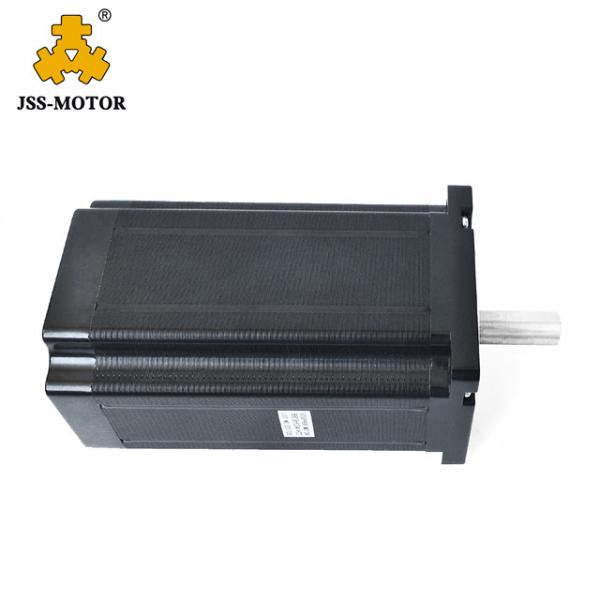

NEMA23 stepper motor CNC engraving milling 57x76mm 2NM hybrid stepper motor

Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.

Products Electrical specification:

Model No Step Angle(°) Rated Voltage(V) Rated Current (A) Phase Resistance(Ω) Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque(g.cm Max) Rotor Inertia (g.cm²) Motor Length (mm) Leads No. Motor Weight(Kg)
57HS76-2004 1.8 8.6 2 4.3 16.2 24 680 480 76 4 1
57HS76-3004 1.8 2.7 3 0.9 3.5 20 680 480 76 4 1
57HS76-4004 1.8 2.4 4 0.6 2.2 20 680 480 76 4 1
Above only for representative products,products of special request can be made according to the customer request.

Motor Dimensions:

23 Nema Stepper Motor 2NM 270 Oz 57x76mm CNC Engraving Milling

Wiring Diagram:

23 Nema Stepper Motor 2NM 270 Oz 57x76mm CNC Engraving Milling
