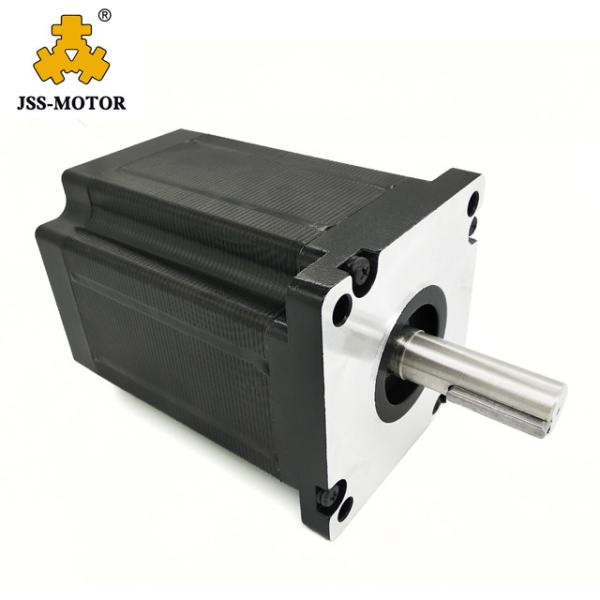

Nema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driver
Nema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driver
Nema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driver
Nema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driver
Specifications
Brand Name :
JSS
Model Number :
JSS110HS168-6004A19-B55
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
US$88.37~91.54/pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
Nema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driver
Phase :
2 phase
Step Angle :
1.8degree
Rated Current :
6.0A
Phase Resistance :
0.9Ω
Phase Inductance :
16mH
Holding torque :
24N.M
Motor Length :
168mm
Lead wires No. :
4
Motor Weight :
8.4
Color :
black
Description
Product Description
Nema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driver

Application

(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.

Technical Parameters:

Step Angle 1.8°
Temperature Rise 80℃ Max
Ambient Temperature -20℃ Max∼+50℃
Insulation Resistance 100M ΩMin.,500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02Max (450g-load)
Shaft Axial Play 0.08Max (450g-load)
Max. Radial Force 220N (20mm from the flange)
Max. Asial Force 60N

Technical Specifications:
Model No.

Step Angle

(°)

 Current /Phase (A)

Resistance /Phase

(Ω)

 Inductance Phase (mH) Holding Torque (kg.cm) Rotor Inertia (g.cm²) Motor Length (mm) Lead Wires No. Motor Weight (kg)
110HS99-5504 1.8 5.5 0.72 10.9 11 5500 99 4 5
110HS115-6004 1.8 6 0.44 7.17 12 7200 115 4 6.2
110HS150-6504 1.8 6.5 0.72 12.8 20 10900 150 4 8.4
110HS168-6004 1.8 6 0.9 16 24 13000 168 4 9.8
110HS201-8004 1.8 8 0.71 15.38 33 16200 201 4 11.7

Installation Size: Wiring Diagram:

(Unit=mm)

L1 and L2 can be customized according to customers' requirements.

Picture of real products

Nema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driverNema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driver

First-class service:

customization and OEM is available.

Warranty: 12 months

Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.

Contact me :

WhatsApp: +86 18306110590

Phone: +86 18306110590

Packaging & Shipping

We have standard package for our products. We can also make it as per your special requirements.

Nema42 110mm flange 24N.M 2phase 1.8degree hybrid stepper motor with STD3722 stepper driver

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
