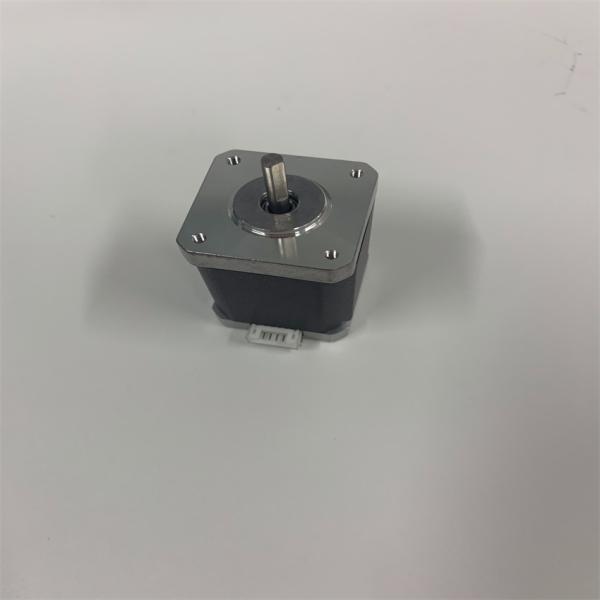

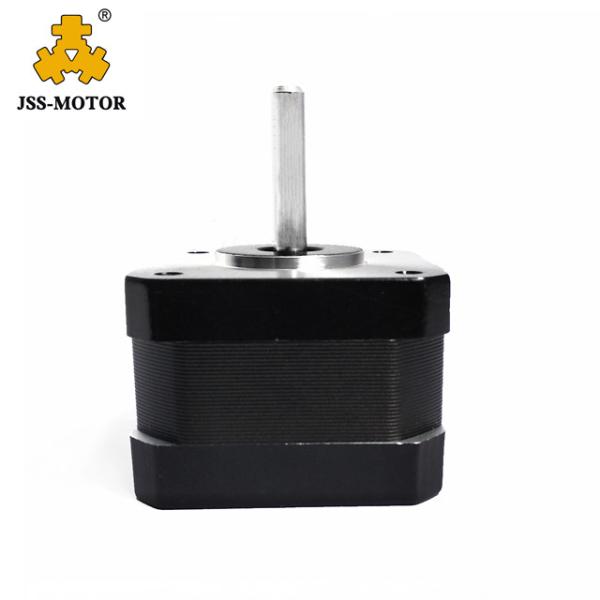

42hs48-1504a nema 17 stepper motor 4 wire bipolar or unipolar 1.8deg 40mm Medical machinery
42hs48-1504a nema 17 stepper motor 4 wire bipolar or unipolar 1.8deg 40mm Medical machinery
42hs48-1504a nema 17 stepper motor 4 wire bipolar or unipolar 1.8deg 40mm Medical machinery
42hs48-1504a nema 17 stepper motor 4 wire bipolar or unipolar 1.8deg 40mm Medical machinery
42hs48-1504a nema 17 stepper motor 4 wire bipolar or unipolar 1.8deg 40mm Medical machinery
42hs48-1504a nema 17 stepper motor 4 wire bipolar or unipolar 1.8deg 40mm Medical machinery
Specifications
Brand Name :
JSS
Model Number :
42HS48-1504A
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 5-7 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 pcs month
Delivery Time :
12 days
Packaging Details :
Carton
Flange :
42*48mm
Holding torque :
5.5kG.CM
Current :
1.50A
Length :
48mm
Shaft diameter :
5MM
Shaft length :
customized
Colour :
black
Product name :
stepping motor
ODM :
support
application :
textile machine
Key words :
hybrid stepper motor
Description

Medical machinery Nema 17 Stepper motor bipolar stepper motor hybrid stepper motor

Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.

our main products:

hybrid stepper motor and drives

Brushless DC motor and drives

planetary gearbox

AC servo motor

Spindle motor

Linear guide and its pairs

Ball screw and its pairs

General specifiation

Step Angle 1.8°
Temperature Rise 80℃ Max
Ambient Temperature -20℃ Max∼+50℃
Insulation Resistance 100M ΩMin.,500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02Max (450g-load)
Shaft Axial Play 0.08Max (450g-load)
Max. Radial Force 28N (20mm from the flange)
Max. Asial Force 10N

Electrical Specification:

Model No Step Angle() Rated Voltage(V) Rated Current (A) Phase Resistance() Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque(g.cm Max) Rotor Inertia (g.cm) Motor Length (mm) Leads No. Motor Weight(Kg)
42HS48-0404 1.8 12 0.4 30 45 4.5 280 68 48 4 0.38
42HS48-1004 1.8 4.5 1 4.5 10 5 280 68 48 4 0.38
42HS48-1304 1.8 4.6 1.3 3.5 6.6 5.5 280 68 48 4 0.38
42HS48-1504 1.8 4.2 1.5 2.8 5.5 5.5 280 68 48 4 0.38
42HS48-1684 1.8 3.4 1.68 2 3.8 5.2 280 68 48 4 0.38
42HS48-0406 1.8 12 0.4 30 28 3.2 280 68 48 4 0.38
