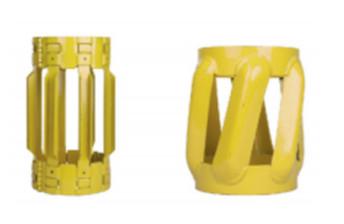

Non Welded Well Casing Centralizers 104 Series Casing Accessories Red Yellow
Non Welded Well Casing Centralizers 104 Series Casing Accessories Red Yellow
Non Welded Well Casing Centralizers 104 Series Casing Accessories Red Yellow
Non Welded Well Casing Centralizers 104 Series Casing Accessories Red Yellow
Specifications
Model Number :
104 SERIES
Place of Origin :
CHINA
Payment Terms :
T/T or LC irrevocable In sight
Packaging Details :
Export standards packaging and others requirements should be clarified in advance
Brand Name :
SWS
MOQ :
MOQ as per type requirements
Price :
Details pls contact our staff
Delivery Time :
Delivery ex-mill details need to discuss
Supply Ability :
As requirement
Function :
easy for transport ,store and install
Size :
4-1/2''~20''
Function 2 :
drag force in deviated hole condition
Function3 :
100% standoff when run insde a cased hole.
Description

104 SERIES CASING CENTRALIZER, NON-WELDED POSTIVE

104 SERIES CASING CENTRALIZER, NON-WELDED POSTIVE , OILFIELD TOOLS

ADVANTAGES AND MAIN FEATURES

1- Reduce frictional drag when used in deivated cased holes and can provide nearly 100% standoff in cased-off applications

2- Formed U-profile bows provide additional flow area to aid in mud removal ,which contributes to a high-quality primary element job

FEATURES

›Hinged design for easy transporting, storing and installing.
› Use hinged pins to secure the hinged end collars together around the casing.
› Straight formed positive bars are attached onto the hinged end collar with rivets.
› Easy installation and normally run over a stop collar or coupling.
› U-profile design instead of spring bows can ensure maximum fluid passage and reduce frictional
› drag force in deviated hole conditions.
› Almost 100% standoff when run inside a cased hole.
› Flat U profile is fitted in self locking retaining lips for firm and positive hold.
› Available in sizes 4-1/2" to 20" and special sizes are also available.

Non Welded Well Casing Centralizers 104 Series Casing Accessories Red Yellow

Non Welded Well Casing Centralizers 104 Series Casing Accessories Red Yellow

Non Welded Well Casing Centralizers 104 Series Casing Accessories Red Yellow

hopping 1.D. (mm) hooping thickness(mm) total length(mm) max od amounts of spring(mm)
142-148 3-5 650±50 225±5 5
181-186 3-5 650±50 255±5 6
181-186 3-5 650±50 235±5 7
223-228 3-5 650±50 330±5 8
250-255 3-5 650±50 330±5 8
274-276 3-5 650±50 330±5 9
342-347 3-5 650±50 450±5 11
475-477 3-5 600±50 610±5 12
509-511 3-5 600±50 660±5 12
