API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
Specifications
Brand Name :
SWS
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product name :
Float Shoe and Float Collar
Standard :
API
Thread Type :
EU\NU\BTC\LTC\Special Thread
Steel Grade :
N80\L80\P110
Specification :
2-3/8~20
Valve Material :
PDC
Bearing Pressure :
35MPa
Valve Size :
70mm
Used for :
Cementing Wells
Valve type :
Single Valve & Double Valve
Function :
Multifunctional
Feature :
Simple Operation
Description

COMPANY PROFILE

API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve

We(SWS) are specialized in cementing tools and casing accessories, engaging in the development, manufacturing, sales and service. Advanced downhole tool manufacturing technology is used to provide products that exceed industry quality standards to meet the challenging cementing tools' needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities, together with raw material and production storage.

MAIN PRODUCTS

API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve

API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

CERTIFICATES

API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve

We get the certificate of API Q1, 7-1 and 5CT.

PRODUCT DESCRIPTION

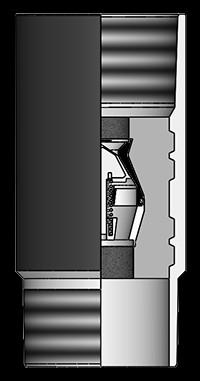

A float shoe is a specialized piece of equipment installed at the bottom of the casing string. It contains a check valve or a backflow preventer mechanism that allows fluid to flow downward during casing placement but prevents fluid from flowing back up the casing once it's in place. This design helps maintain hydrostatic pressure in the wellbore, prevents the influx of formation fluids, and ensures proper cementing of the casing.

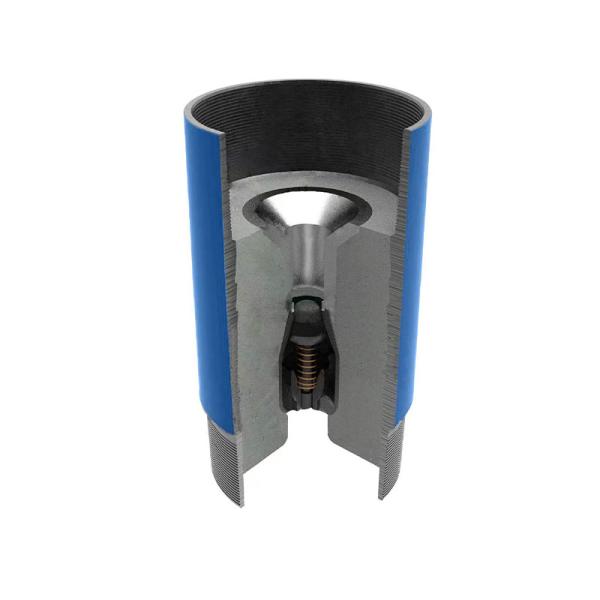

A float collar is another critical component placed near the bottom of the casing string, just above the float shoe. Like the float shoe, it also contains a check valve or backflow preventer mechanism. The float collar serves similar functions as the float shoe, ensuring one-way flow of fluids during casing placement and preventing fluid migration after cementing. Additionally, the float collar typically incorporates guide fins or other features to help centralize the casing string within the wellbore, facilitating proper cement placement and enhancing wellbore stability.
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
API ISO Standard Cement Float Collar And Shoe With 70mm PDC ValveAPI ISO Standard Cement Float Collar And Shoe With 70mm PDC ValveAPI ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve

FACTORY PHOTOS

API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve

EXHIBITION

API ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve

PACKAGE & TRANSPORTATION

API ISO Standard Cement Float Collar And Shoe With 70mm PDC ValveAPI ISO Standard Cement Float Collar And Shoe With 70mm PDC Valve
