Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material
Specifications
Place of Origin :
China
Brand Name :
JSUS
Certification :
CE&ROHS
Model Number :
JS-35
MOQ :
1000PCS
Price :
FOB SHENZHEN USD
Packaging Details :
20sets/Bag
Delivery Time :
5-7days
Payment Terms :
L/C,T/T,Paypal, Western Union
Supply Ability :
100,000sets/month
Color :
White or Brown
Description

www.jsustech.com

Model: JS-35
Certificate: CE
Dimension: Φ10.5*21.5mm
Housing: ABS ,white /brown
Gap: 15-25mm; 20-25mm availAble
Output: N.C. N.O. & Changeover available
Leads: 1007UL22AWG430mm; wire with cable available
Package:
Outer packing: 1600 sets/carton
Gross Weight: 20.0KG

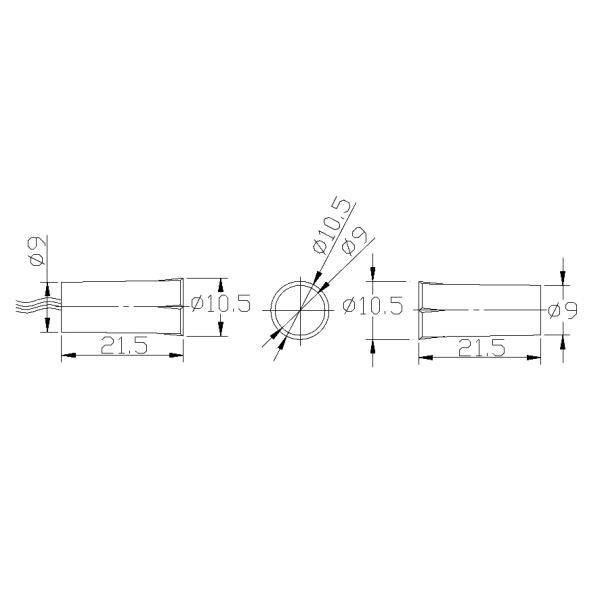

2.0 Dimension(mm)

Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material

3.0 Order information

Specification Output Casing Material Action Gap(mm) Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) MOQ(PCS)
NC-ABS-1525 NC ABS 15-25 0.5A/100V/10W/200mΩ 0
NC-ABS-2025 NC ABS 20-25 0.5A/100V/10W/200mΩ 1000
NO-ABS-1525 NO ABS 15-25 0.2A/30V/3W/200mΩ 500
COM-ABS-1525 changeover ABS 15-25 0.2A/30V/3W/200mΩ 500

Key words : magnetic contact reed switch magnetic switch sensor door switch sensor recessed mount switch
