vertical installation float level switch, ideal for water
vertical installation float level switch, ideal for water
vertical installation float level switch, ideal for water
vertical installation float level switch, ideal for water
Specifications
Brand Name :
JSUS
Model Number :
FS-P45
Certification :
CE&ROHS
Place of Origin :
CHINA
MOQ :
500PCS
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
5-8DAYS
Description

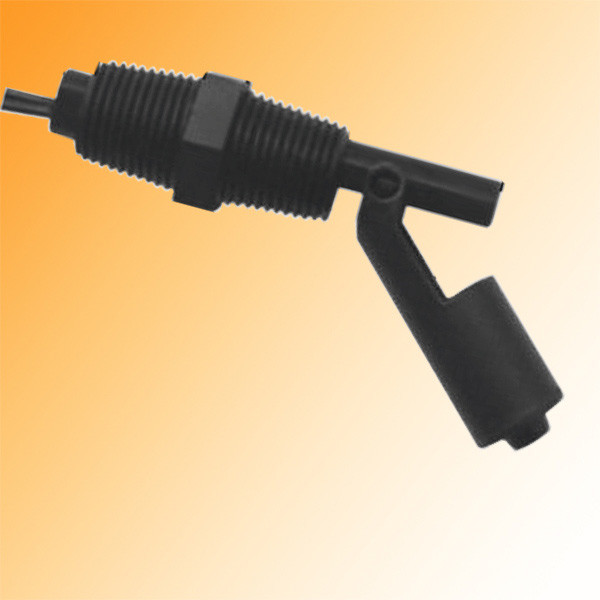

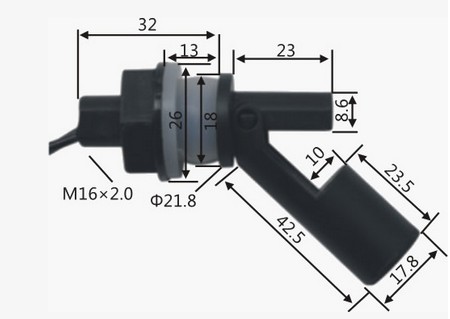

vertical installation float level switch, ideal for water

FS-P45

NO type

Max. Contact Rating: 10W / 50W
Max. Switching Voltage: 100VDC / 200VDC
Max. Switching Current: 0.5A / 1.5A
Min. Breakdown Voltage: 220VDC / 300VDC
Max. Carry Current: 1.0A / 3.0A
Max. Initial Contact Resistance: (Do not include the wire) 100m Ω
Temperature Rating: -10 ~ +85 ℃
Float Ball Material: PP
Float Body Material: PP+GF
Screw Nut Material: PP+GF
E-Ring Material: PP
