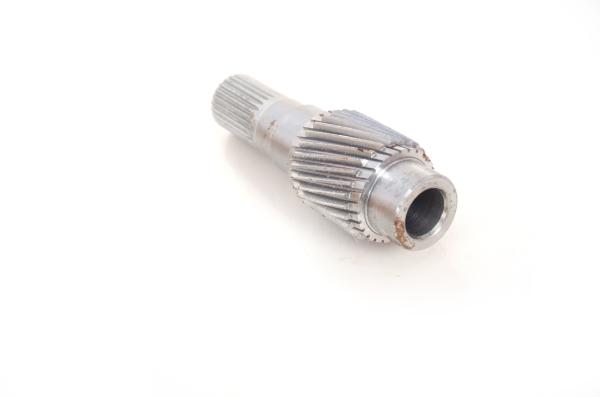

Circle Spline Gear Shaft Engineering Machinery External Involute Spline 1.4kg
Circle Spline Gear Shaft Engineering Machinery External Involute Spline 1.4kg
Specifications
Brand Name :
WINNER
Certification :
IATF16949
Place of Origin :
TAIZHOU-CHINA
MOQ :
5000
Price :
CNY+100-400+YUAN
Payment Terms :
T/T, MoneyGram
Supply Ability :
1200+SET+DAY
Delivery Time :
5-8 workdays
Packaging Details :
According to customer's requirement
modulus :
1.79
number of teeth :
85
tooth depth :
9.39
tooth width :
(44±0.1）
weight :
1.4kg
material :
8620H
appearance :
circle
application :
engineering machinery
Description

The number of teeth of the gear shaft is 85 and the weight is 1.4kg, The processing technology of gear shaft is:

1. Blank blanking

2. The car

3. Quenching and tempering treatment (improve the toughness and stiffness of the gear shaft)

4. Fine the gear blank to size

5. If there is a keyway on the shaft, the keyway can be processed first

6. Roll teeth

7. Medium frequency quenching of tooth surface (high frequency quenching of pinion), quenching hardness HRC48-58 (the specific hardness value needs to be determined according to the working condition, load and other factors)

8. Grinding

9. Final inspection of finished products

Product specification:

modulus 1.79
number of teeth 85
tooth depth 9.39
tooth width (44±0.1)
weight 1.2kg-2.0kg
material 8620H
appearance circle
gear surface hardness 58-63
tooth line shape involute
application engineering machinery
product description: engineering core components
accuracy of gear 8-10
processing module 1.5-1.8
gear type involute external spline
materials low carbon alloy steel
surface treatment carburizing and quenching
processing technic forging+machine work+heat treatment
fabricating machinery mechanical press+digital controlled lathe+machining center
checkout equipment Klingberg Gear Btesting Center+Zeiss CMM+Mitoyo contourgraph

Circle Spline Gear Shaft Engineering Machinery External Involute Spline 1.4kgCircle Spline Gear Shaft Engineering Machinery External Involute Spline 1.4kgCircle Spline Gear Shaft Engineering Machinery External Involute Spline 1.4kg

Related products:

engineering shaft
shaft mechanical engineering
electric motor shafts
mechanical shaft
machine shaft
gears and shafts
spur gear shaft
spline gear shaft
machine shaft
external involute spline
involute shaft

FAQ:

Q:What's your sample?

A: We will make samples according to the drawings, which can be viewed, but the customer has to pay the relevant fees of samples.

Q:How do you make our business long-term and a good relationship?

A:1.we maintain good quality and competitive prices to ensure the interests of our customers;

2.We see every customer as a friend, sincere business with them, friends, no matter where they come from.

Q: Have all your goods been tested before delivery so far?

A: Yes, we will test the product quality according to customer's requirements before delivery.
