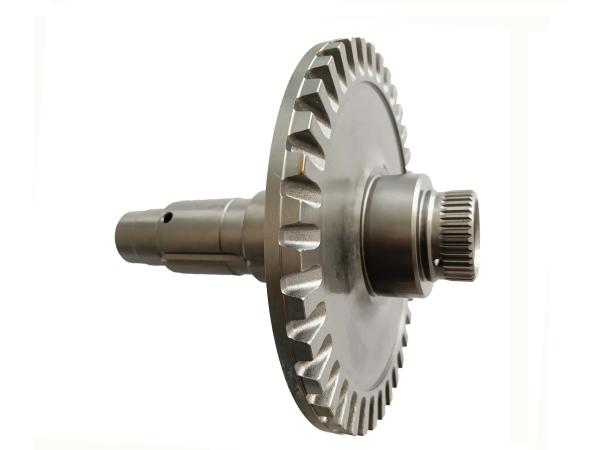

Heat Treatment CVT Pulley Shaft 2.9kg 59HRC Drive Pulley Shaft
Heat Treatment CVT Pulley Shaft 2.9kg 59HRC Drive Pulley Shaft
Specifications
Brand Name :
WINNER
Model Number :
CVT 250
Certification :
IATF16949
Place of Origin :
TAIZHOU-CHINA
MOQ :
5000
Price :
CNY+100-400+YUAN
Payment Terms :
T/T, MoneyGram
Supply Ability :
1200+SET+DAY
Delivery Time :
5-8 workdays
Packaging Details :
According to customer's requirement
modulus :
1
tooth width :
32
gear surface hardness :
59HRC
number of teeth :
13
tooth depth :
3
weight :
2.9
material :
20CrMoH/20CrMo5
boundary dimension :
（φ150-φ180）x（60-270）
Description

The heat treatment process used for 2.9 kg CVT Pulley Shaft is carburizing and quenching, Quenching process is widely used in modern machinery manufacturing industry. The important parts of machinery, especially the steel parts used in automobiles, airplanes and rockets, are almost all quenched. In order to meet the technical requirements of various parts, various quenching processes have been developed.

For example, according to the part of the treatment, there are integral, local and surface quenching; According to whether the phase transformation is complete during heating, there are complete quenching and incomplete quenching (for hypoeutectoid steel, the method is also called subcritical quenching);

The process includes heating, heat preservation and cooling. Taking the quenching of steel as an example, the principle of selecting process parameters in the above three stages is introduced below.

Quenching heating temperature
According to the critical point of transformation of steel, fine and uniform austenite grains are formed during heating and fine martensite microstructure is obtained after quenching.

Product specification:

boundary dimension (φ150-φ180)x(60-270)
modulus 1-3
number of teeth 10-36
tooth depth 1-8
tooth width 10-45
weight 2.5-6kg
material 20CrMoH/20CrMo5
heat treatment carburizing and quenching
gear surface hardness 58-62HRC
application splined coupling/signal collection/parking
product description: CVT transmission core components
accuracy of gear 7-10
processing module 1-2
gear type signal tooth+parking tooth+involute external spline
materials low carbon alloy steel
surface treatment carburizing and quenching
processing technic forging+machine work+heat treatment
fabricating machinery mechanical press+CNC Lathe+machining center+Rub tooth machine
+gear hobbing machine
checkout equipment Klingberg Gear Btesting Center+Zeiss CMM+Mitoyo contourgraph

Heat Treatment CVT Pulley Shaft 2.9kg 59HRC Drive Pulley ShaftHeat Treatment CVT Pulley Shaft 2.9kg 59HRC Drive Pulley ShaftHeat Treatment CVT Pulley Shaft 2.9kg 59HRC Drive Pulley Shaft

Related products:

shaft and pulley
pulley for motor shaft
drive shaft pulley
drive pulley shaft
splined pulley
pulley on shaft
sheave shaft
spline shaft stock
6 spline shaft
spline gear shaft
metric spline shaft
cvt shaft
transmission input shaft
shaft heat treatment
forging shaft
shaft forging
alloy shaft
drive shaft gear
motor shaft gear
custom splined shaft

FAQ:

Q: Why do customers choose your products?

A: The company has many years of experience, reliable quality, reasonable price, professional technology and sound after-sales service commitment.

Q: What are your company's main products?

A: Automotive precision forging products.

Q: Can you send me a sample?

A: Yes, we can send you the sample to check the quality, but you need to pay all the cost of the sample.

Q: How to get the best price?

A: You can consult our commercial department for pricing.
