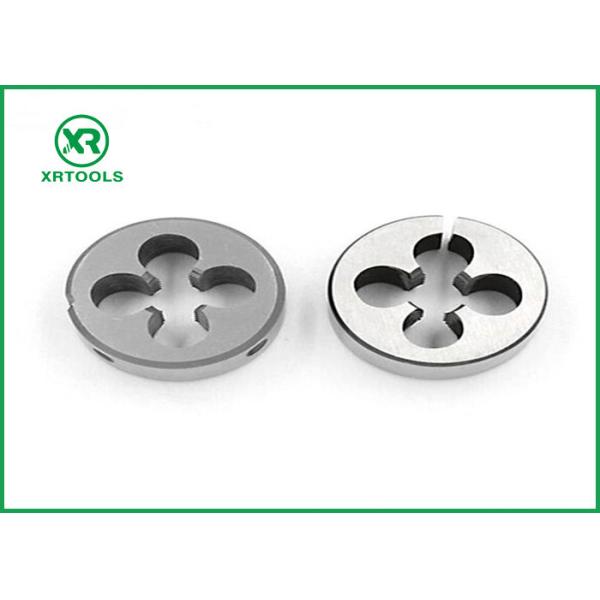

Metric / Inch Pipe Threading Dies , High Hardness 1 Inch Die TIAIN Coated
Metric / Inch Pipe Threading Dies , High Hardness 1 Inch Die TIAIN Coated
Specifications
Brand Name :
STARRY AND OEM
Model Number :
M3-M30
Certification :
ISO9000
Place of Origin :
JIANG SU CHINA
Material :
HSS-4341,HSS-M2
Type :
Thread Dies
Surface :
Bright
Standard :
DIN223
Description
Measuring Metric and Inch
Application For making outer threads; Adjustment screw allows die to be set for different classes of fit.
Can be used to cut new threads or clean up existing threads
Business Type Manufacturer

1. Description

Metric / Inch Pipe Threading Dies , High Hardness 1 Inch Die TIAIN Coated

Metric / Inch Pipe Threading Dies , High Hardness 1 Inch Die TIAIN Coated

Product Name

Threading Die,thread die,round die
Material Alloy Steel, HSS(M2,M42,M35)
Type Round Dies, Open Mouth Dies, Adjustable Die;Machine Die,Hand Die
Standard DIN(Metric Size/UNC/UNF/BSW/BSF),GOST 9740, ANSI standard.
Hardness Alloy steel: HRC56-57, HSS4241: HRC59-61, HSS4341: HRC61-63, HSS 6542: 62-64
Coating TIN,TICN,TIAIN
Measuring Metric and Inch
Application For making outer threads; Adjustment screw allows die to be set for different classes of fit.
Can be used to cut new threads or clean up existing threads
Business Type Manufacturer

2. Size

Metric / Inch Pipe Threading Dies , High Hardness 1 Inch Die TIAIN Coated

d1 p d2 h1
mm (pitch) (f9)
mm		 mm
M 3 0,35 20 5
M 3,5 0,35 20 5
M 4 0,35 20 5
M 4 0,5 20 5
M 5 0,5 20 5
M 6 0,5 20 5
M 6 0,75 20 5
M 8 0,5 25 9
M 8 0,75 25 9
M 8 1 25 9
M 9 1 25 9
M 10 0,5 30 11
M 10 0,75 30 11
M 10 1 30 11
M 10 1,25 30 11
M 11 1 30 11
M 12 1 38 10
M 12 1,25 38 10
M 12 1,5 38 10
M 14 1 38 10
M 14 1,25 38 10
M 14 1,5 38 10
M 16 1 45 14
M 16 1,5 45 14
M 18 1 45 14
M 18 1,5 45 14
M 20 1 45 14
M 20 1,5 45 14
M 20 2 45 14
M 22 1 55 16
M 22 1,5 55 16
M 22 2 55 16
M 24 1 55 16
M 24 1,5 55 16
M 24 2 55 16
M 26 1,5 55 16
M 26 2 55 16
M 27 1,5 65 18
M 27 2 65 18
M 28 1,5 65 18
M 28 2 65 18
M 30 1,5 65 18
M 30 2 65 18
○ Ask Price and Deadline

3. Packing:

Metric / Inch Pipe Threading Dies , High Hardness 1 Inch Die TIAIN Coated

Metric / Inch Pipe Threading Dies , High Hardness 1 Inch Die TIAIN Coated

4. Why you choose us:

1. Low MOQ: Along with your promotional business very well.

2. OEM Accepted : We can produce any your design .

3. Logo: All products well packaged with or without labels , Customers required labels and logos are acceptable

4. Good Service : Clients are our Friends

5. Stock : Standard hand taps ,machine taps are Rich in Stock .

6. Reasonable price:Best quality along with reasonable prices. Discount based on Quantity

7. Good Quality :Quality can be guaranteed with the CNC Machine and our serious QC .Good reputation in the market.

8. Payment Grading: You can pay 30% in advance first , then pay the rest 70% when we finished the goods before shipping.

5. FAQ:

Q1: Do you have your own brand?
A1: Yes, the brand name is STARRY Tools, we can provide OEM services to our customers as well.

Q2: What's your target market?
A2: We mainly focus on Europe and South America right now.

Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest HSS Cutting tools supplier in China.


Q4: What is your MOQ?
A4: 500 pcs

Q5: What about the payment and delivery time?
A5: Delivery time: All items are ready in stock and can be sent within one week.
Payment: T/T.

100% protection for product quality, on-time shipment and payment

Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check at your freight cost.

Q7: How does your factory do regarding quality control?
A7: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
