Specifications
Brand Name :
Jingtu
Place of Origin :
China
Style :
Vertical
Performance :
Efficient Filtration
Transport Package :
Wooden Box
Specification :
#2 1.5㎡
Description

Product Overview

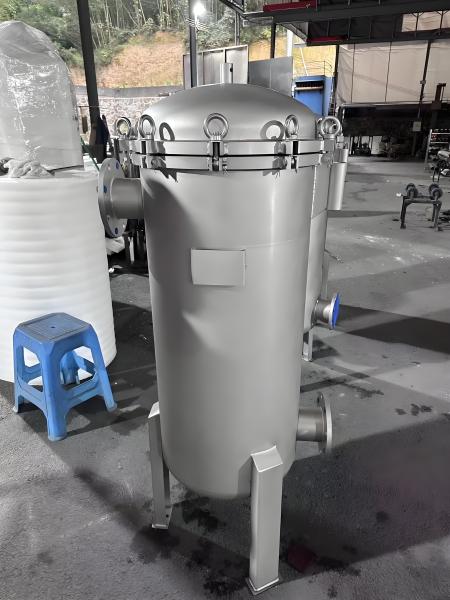

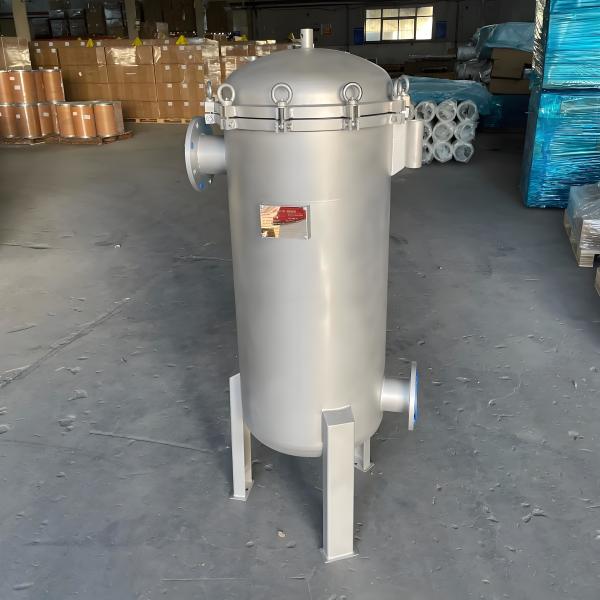

The Filter Bag is a durable and cost-effective solution designed for liquid filtration during e-coating processes. Built with high-quality 304 stainless steel, this unit is engineered for efficient removal of particles and contaminants from liquids before they enter sensitive coating systems.

Working Principle

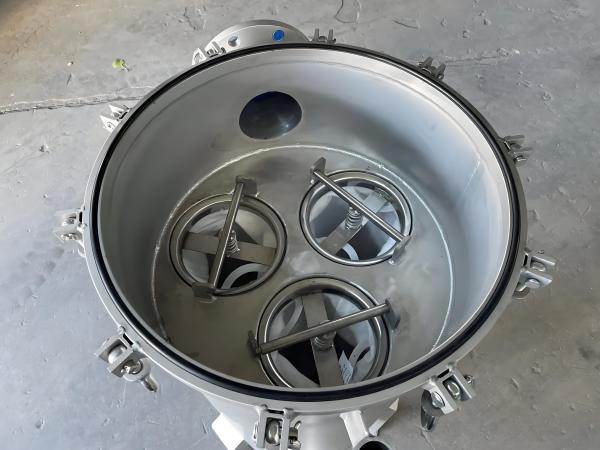

Liquid enters the housing through the inlet and flows into the filter bag, which is supported by an internal stainless steel mesh. As the liquid passes through the bag, impurities are trapped inside. The clean liquid then exits through the outlet. The filter bag can be reused after cleaning and is easy to replace, offering long-term operational efficiency.

Product Specification

Number of Bags 3
Filter Bag Number #2 (17.78×81.28cm, 25micron)
Maximum Operating Pressure 145 PSI (10 Bar)
Design Temperature Range 5 to 50°C
Materials of Construction 304 Stainless Steel
Number of Gaskets 1

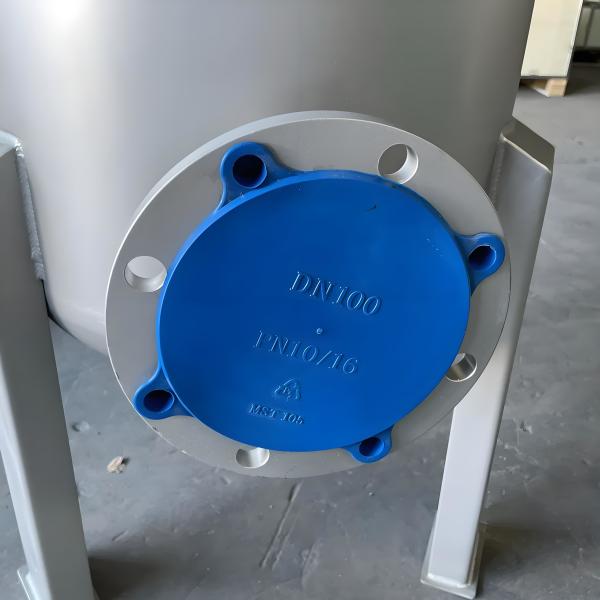

Connections DN100 Flange
Surface Finish Polish or sand blast
Gasket Material Buna-N rubber
Gross Weight 80kgs

Key Features

  • Material: High-grade SS304 stainless steel for corrosion resistance and long life
  • Structure: Compact design with single-bag configuration, easy to install and maintain
  • Reusable Bags: Filter bags are washable and replaceable, reducing operating costs
  • Cross-Compatible: Designed to be interchangeable with FSI-style bag filter vessels
  • Efficient Filtration: Excellent for removing particles in e-coating systems

Stainless Steel 304 Cartridge Filters 3-Bags 10-Bar Pressure For Electrocoating Progress

Applications

  • Electrocoating
  • Chemical and pharmaceutical processing
  • Food and beverage industries
  • Water treatment systems

Flow Rate Specification

Number of Bags 3
Filter Bag Number #2 (17.78×81.28cm, 25micron)
Surface Area per Bag 0.5m²
Surface Area per Vessel 1.5m²
Inlet and Outlet Size 4.0"
Max Flow Rate, GPM 390
