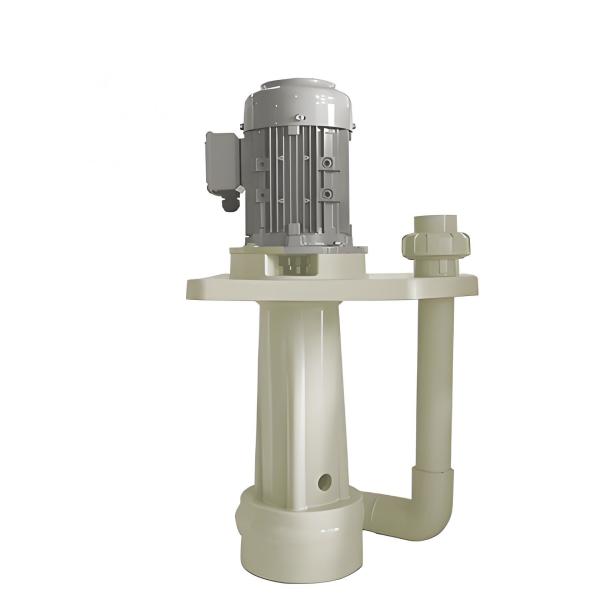

Square Plate Plating Tank Vertical Pump for Efficient, Corrosion-Resistant Fluid Transfer in Electroplating and Chemical Processing

Product Description
The Square Plate Plating Tank Vertical Pump is a robust and reliable fluid transfer solution designed for electroplating, chemical processing, and other industrial applications where high-flow and high-efficiency are essential. Featuring a vertical design with a square plate mounting base, this pump is ideal for use in square plating tanks, where effective fluid circulation and gas-liquid separation are critical for achieving consistent coating and processing quality.

Built with PPH (Polypropylene Homopolymer) and PVDF (Polyvinylidene Fluoride), the Square Plate Plating Tank Vertical Pump offers exceptional corrosion resistance, making it perfect for handling electrolyte solutions, acids, alkalies, and other corrosive chemicals. The pump’s fluid dynamics optimization, anti-vortex impeller design, and reinforced body ensure efficient operation, reduced energy consumption, and minimal maintenance. With a flow rate of up to 440 L/min and a head range of 0-19 meters, this pump is designed for continuous operation in demanding environments.

Key Features
1. Optimized Fluid Flow Design

• The Square Plate Plating Tank Vertical Pump utilizes fluid dynamics principles to optimize the internal flow path. This design minimizes internal friction and energy loss, improving overall efficiency and allowing for higher flow rates (up to 440 L/min) and smoother fluid transfer.

2. Anti-Vortex Impeller for Gas-Liquid Separation

• Featuring an anti-vortex impeller design, the pump effectively separates gases from liquids during operation. This is especially beneficial in electroplating applications where air bubbles can affect fluid flow and plating quality. The impeller ensures the uniform distribution of the electrolyte solution and minimizes disturbances.

3. Reinforced Body Design with Four Strengthening Ribs

• The pump body is reinforced with four strengthening ribs, ensuring structural stability and the ability to withstand high pressures and heavy-duty continuous operation. This design improves the pump's longevity and helps maintain consistent performance over time.

4. Energy-Efficient Motor with IE3/IE4 and Variable Frequency Drive (VFD)

• The Square Plate Plating Tank Vertical Pump is equipped with IE3/IE4 motors, which are high-efficiency and energy-saving. The variable frequency drive (VFD) allows for precise control over motor speed, optimizing power consumption and adapting to different operating conditions. This feature helps reduce overall energy costs and increases the pump's operational lifespan.

5. Square Plate Mounting Base for Easy Installation

• Designed with a square plate mounting base, the pump can be easily installed in square plating tanks, providing better space efficiency and easier setup. The design also helps ensure that the pump is securely positioned, minimizing vibration and maximizing stability during operation.

Technical Parameters

Applications
1. Electroplating

• Ideal for continuous circulation of electrolyte solutions in plating tanks. The pump ensures uniform electrolyte distribution and minimizes the formation of air bubbles, resulting in high-quality plating.

2. Chemical Processing

• Used to transfer acids, alkalies, and other chemical solutions safely and efficiently. Its corrosion-resistant construction allows it to handle aggressive fluids commonly used in chemical plants.

3. Wastewater Treatment

• Suitable for use in wastewater treatment facilities where slurries or chemical additives need to be moved efficiently and safely, ensuring consistent fluid handling without leakage.

4. Food and Beverage

• Used in food-grade liquid transfer such as juices, syrups, and oils, ensuring hygienic, efficient, and leak-free fluid handling.

5. Pharmaceutical Manufacturing

• Ideal for safely transferring pharmaceutical chemicals and solvents in a controlled and sterile environment, maintaining the integrity of the product.
