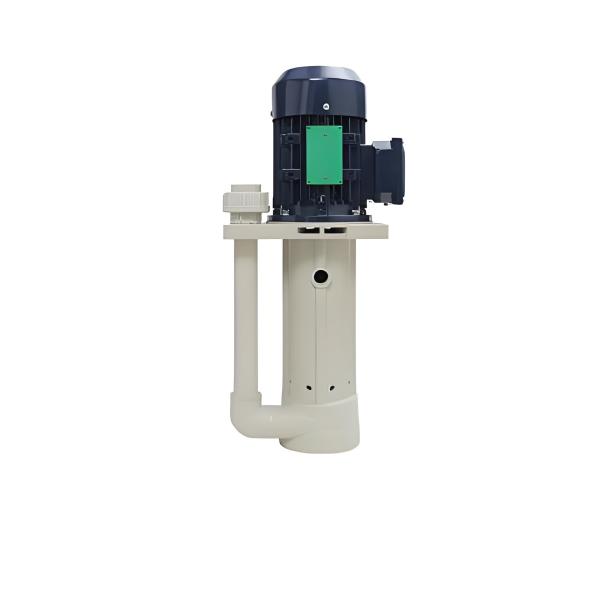

Continuous Plating Tank Vertical Pump for High-Flow, Corrosion-Resistant Fluid Circulation in Electroplating and Chemical Applications

Product Description
The Continuous Plating Tank Vertical Pump is a high-performance, corrosion-resistant pump designed specifically for electroplating and chemical processing industries. This pump is optimized for continuous fluid circulation in plating tanks, ensuring the uniform distribution of electrolytes and improving the overall plating process efficiency. Designed with PPH (Polypropylene Homopolymer) and PVDF (Polyvinylidene Fluoride), the pump materials offer excellent resistance to corrosive chemicals commonly found in electroplating liquids, ensuring long-term durability and reliable operation.

With a flow rate of up to 170 L/min and a head range of 0-10 meters, the Continuous Plating Tank Vertical Pump is engineered to handle the demanding conditions of continuous plating processes. The pump’s optimized flow path design, dual impeller system, and rotary seal ensure efficient performance and separation of gases and liquids, improving fluid dynamics and enhancing operational stability.

Key Features
1. Optimized Fluid Path Design

• The pump uses fluid dynamics principles to optimize the internal flow path, ensuring smooth fluid transfer and reducing friction and energy loss. This results in a highly efficient pump that minimizes energy consumption while maximizing fluid handling capacity.

2. Dual Impeller Design and Rotating Seal for Gas-Liquid Separation

• The pump features a dual impeller design and a rotary seal, which effectively separates gases from liquids during the pumping process. This is especially important in electroplating applications where air bubbles can interfere with fluid flow and affect plating quality.

3. Reinforced Pump Body with Four Strengthening Ribs

• The pump body is designed with four strengthening ribs, improving the overall structural strength and ensuring the pump can handle the pressure and stresses associated with continuous fluid circulation in demanding applications.

4. Energy-Efficient E3/E4 and Variable Frequency Motors

• The pump is equipped with E3/E4 class motors and variable frequency (VF) motors, ensuring high energy efficiency and the ability to adjust the motor speed according to operational requirements. This allows for greater flexibility, energy savings, and optimal pump performance during long operating cycles.

5. Multiple Overflow Ports for Fast Liquid Discharge

• The pump is designed with multiple overflow ports, facilitating the quick discharge of liquid and improving overall system efficiency by preventing liquid buildup in the pump chamber.

6. Corrosion-Resistant Materials

• Constructed from PPH and PVDF, the pump offers superior corrosion resistance, making it ideal for handling electrolyte solutions and other corrosive chemicals used in electroplating and chemical processing industries. These materials ensure long service life and low maintenance.

Technical Parameters

Applications

1. Electroplating

• Used for continuous electrolyte circulation in electroplating tanks, ensuring uniform distribution of plating solutions for consistent coating quality.

2. Chemical Processing

• Ideal for chemical mixing and fluid circulation in industries where aggressive chemicals or acids are used, thanks to its corrosion-resistant construction.

3. Water and Wastewater Treatment

• Used in wastewater treatment systems for continuous fluid movement and chemical injection, ensuring efficient processing and reducing downtime.

4. Pharmaceutical Industry

• Suitable for handling pharmaceutical liquids, ensuring uniform mixing and safe, efficient fluid transfer.

5. Food and Beverage

• Ideal for food-grade liquids such as syrups, oils, and juices, ensuring safe and hygienic fluid handling in food processing operations.
