Powder Coating Booth Overview

Powder Coating Booth is an essential piece of equipment in the powder coating process, designed to efficiently apply powder coatings to metal parts and components. This booth provides a controlled environment where the powder coating is applied electrostatically and then cured under heat, resulting in a durable, high-quality finish.

Our Advantages

1. Jingtu Intelligent Gun: Features a unique circuit board design that effectively solves the issue of powder buildup in workpiece grooves, eliminating dead angles. It offers exceptional cost performance.
2. Exclusive Wind System: Jingtu's advanced wind system ensures temperature fluctuations in the furnace are controlled within 3ºC, guaranteeing consistent product quality with no color differences and preventing coating detachment.
3. High-Efficiency Cyclone Recovery System: With a powder recovery rate of up to 95%, Jingtu’s system ensures minimal dust spillage. The unique fast color-change powder supply center allows color changes in just 10 to 15 minutes.

Pretreatment System
Based on the characteristics of the products and customer requirements, we design customized pretreatment lines, including spraying lines or dipping lines, tailored to different pretreatment processes.

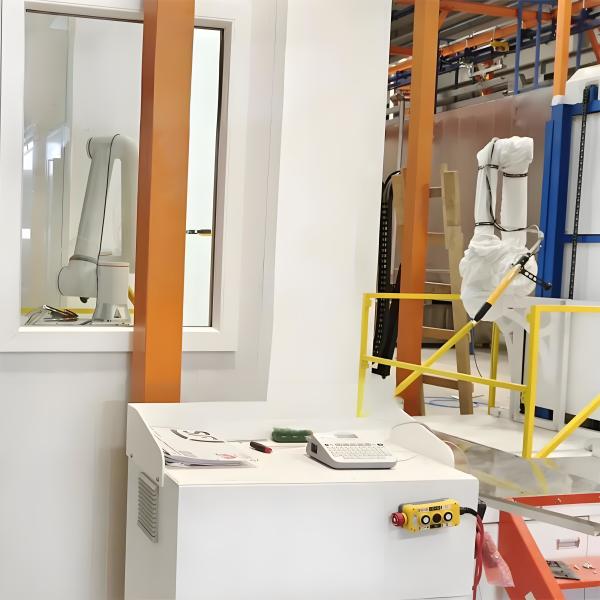

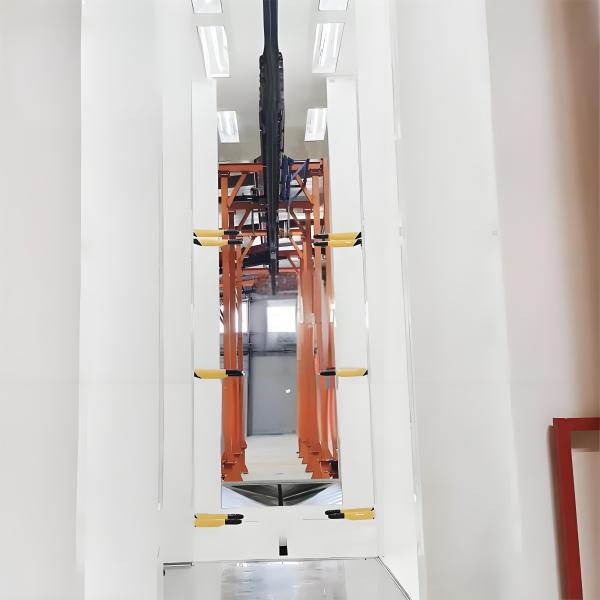

Powder Spraying PP Booth with Cyclone Recovery System

• Quick Color Change: Achieved within 10 minutes.
• High Powder Recovery Rate: Over 99.2%, ensuring minimal waste and no powder spillover.

Powder Spraying PVC Booth with Filter Recovery System

• Efficient Filter System: Equipped with quick-remove and install filters, supported by air cylinders for easy disassembly and color change.
• Cost-Effective: High efficiency and significant cost savings.

Curing Oven
Types Available:

• Bridge Type
• Tunnel Type: Effectively resolves height limitations in workshops.

Key Features:

• Air Curtains (Patent): Installed on both sides of the oven to prevent heat loss and save fuel.

Heating System

• Flexible Fuel Options: Choose from GAS, diesel, electricity, coal, bio-particles, or other fuels based on local availability.
• Advanced Burner Technology: Equipped with RIELLO Italy proportional control burners for precise temperature management.
• Automatic Temperature Adjustment: The burner automatically adjusts based on signals from the oven probe, maintaining a temperature difference within ±3°C.
• Stable Performance: Ensures consistent curing quality and optimal energy efficiency.
