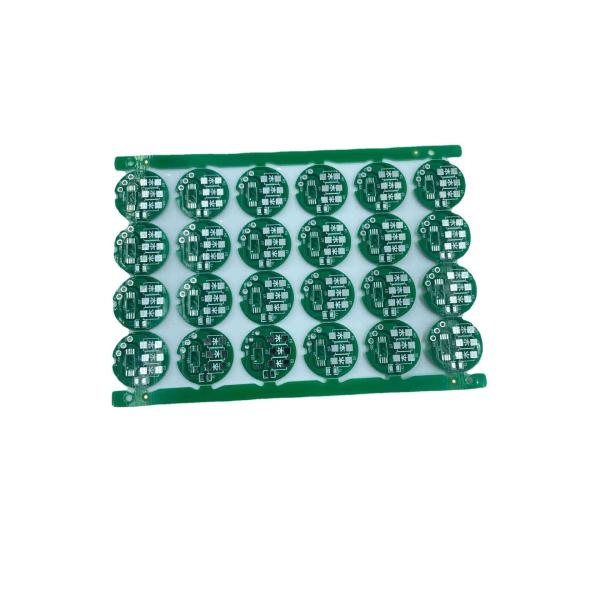

Rogers High Frequency Board , Eight Layer Blind Hole PCB Nickel Palladium Gold
Rogers High Frequency Board , Eight Layer Blind Hole PCB Nickel Palladium Gold
Specifications
Brand Name :
JIETENG
Model Number :
Rogers 4003
Certification :
ISO/TS16949/RoHS/TS16949
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
150000 square meters / year
Delivery Time :
5-8 working days
Packaging Details :
Blank carton vacuum packing
Copper Thickness :
0.5oz-4oz
Board Thickness :
0.1-7MM
Min. Hole Size :
0.15mm
Min. Line Width :
0.075MM
Board Size :
Customize
Sheet thickness :
0.1MM-7MM
Description

Rogers High Frequency Board Eight-layer Blind Hole Board Nickel Palladium Gold

Specification Of PCB Printed Circuit Board

1 Layer 1-80 layer
2 Material FR-4, CEM-1, CEM-3, Hight TG, FR4 Halogen Free, FR-1, FR-2, Aluminum
3 Board thickness 0.2mm-7mm
4 Max.finished board side 500mm*500mm
5 Min.drilled hole size 0.25mm
6 Min.line width 0.075mm(3mil)
7 Min.line spaceing 0.075mm(3mil)
8 Surface finish/treatment HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold Inmersion Silver/Gold, Osp, Gold Plating
9 Copper thickness 0.5-4.0oz

Professional rapid proofing and multi-variety batch expedited
The technology is mature and the warehouse is always stocked with various types of high-frequency high-speed sheet materials, high-frequency mixed-pressure sheet materials, halogen-free high TG sheet materials, thick copper and thick plates and other materials.
Mature production of various blind slots, back drilling, nickel-palladium gold, electro-thick gold, partial electro-gold + immersion gold, gold wire bonding, double-sided and multi-layer orders below 1.2 meters.

Shenzhen Jieteng Circuit is a factory specializing in the production of PCB circuit boards, which can provide one-stop services such as development and design, OEM and other materials

Rogers High Frequency Board , Eight Layer Blind Hole PCB Nickel Palladium Gold
