Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Fast Cure Heat Resistant Epoxy For CT PT Transformer Core Coating Repair
Specifications
Brand Name :
JT
Model Number :
JT8028
Certification :
ISO
Place of Origin :
Guangdong, CHINA
MOQ :
20kg
Price :
negotiable
Packaging Details :
drum
Application :
Dry type transformer core coating
Characteristics :
Good process performance
Color :
Transparent
application environment :
Room temperature
Application object :
Dry type transformer core
Adhesion Strength :
High
Chemical Resistance :
High
Curing Temperature :
Room Temperature
Curing Time :
24-48 Hours
Elongation :
Low
Flexibility :
Low
Hardness :
High
Heat Resistance :
High
Impact Strength :
High
Product Name :
Room Temperature Curing Epoxy Resin
Shelf Life :
12 Months
Solvent Resistance :
High
Tensile Strength :
High
Viscosity :
Medium
Description

ROOM TEMPERATURE EPOXY RESIN FOR REPAIR FOR CT PT WITH CURING PROCESS

ROOM TEMPERATURE CURING EPOXY RESIN

PRODUCT DESCRIPTION:

JT8028 is a room temperature epoxy resin

APPLICATION:

For REPAIR FOR CT PT

Characteristics:

Strong adhesion

Good insulation

Good process performance

Good surface gloss and electrical resistance

Excellent moisture resistance

1. Appearance& Characteristics:

Item Color Viscosity@25℃(mPa·s) Density@25℃( g/cm3 )
JT2051A Epoxy resin clear liquid 1000-3000 1.00-1.20
JT2051B Hardener Yellowish liquid 10-80 0.90-1.00

2. Mixing ratio: JT2051A/JT2051B=4/1(pbw)

3. Applicable time: 25-40mintus at 25℃( mixture: 100g)

4. Curing condition: 8-12h@25℃ or 6h@60℃, full curing takes 3days at Room temperature.

5. Process:

Mixing two components in a certain proportion and keep it for 10minutes, brush them to the iron core after the viscosity is increasing.

6. Properties:

Hardness(Shore D) 70-80
Bending strength (MPa) 30-50
Impact strength (kJ/m2) 20-40
Dielectric strength (kV/mm) 10-15
Volume resistivity (W·cm) >1013

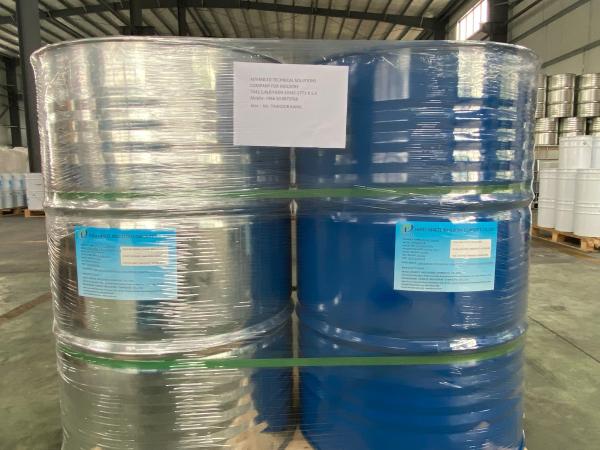

7. Packing:

Component A: 24kg

Component B: 6kg

8. Storage

The product should be sealed in the original packaging container, stored in a dry and ventilated place to save. The shelf life is 6 months under 18~40℃ condition . If exceeds the shelf life time, it needs to be tested again to confirm whether it can be used or not.
