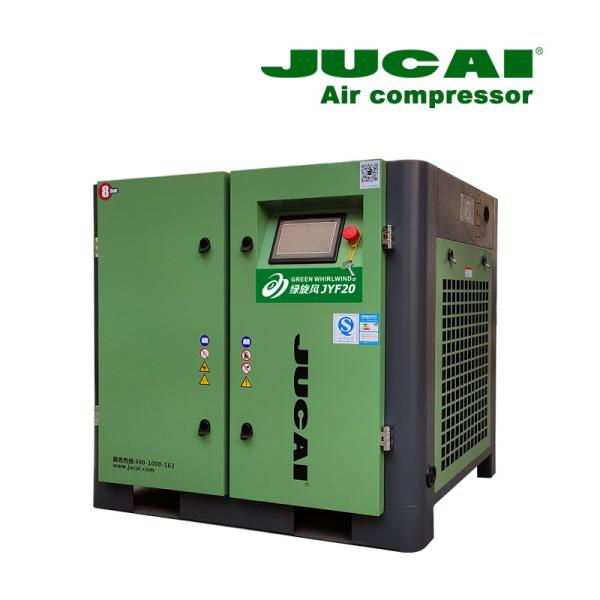

Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor
Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor
Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor
Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor
Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor
Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor
Specifications
Brand Name :
JUCAI
Model Number :
JYF20
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T Pay 30% deposit first
Packaging Details :
Environmental protection wooden box packaging
Model :
JYF20
Volt/Ph/Hz :
380/3/50
Power KW/HP :
15/20
Pressure :
8bar
Dimension :
1080*780*1020mm
Weight :
270kg
Description

Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor

Supply most effective, easily maintainable

and more economic air system

Primary energy efficiency, reasonable structure and easy maintenance

Product Features

1. Easy installation and maintenance, resist to oil and corrosion.

2. Compact structure and high transmission efficency can effectively improve the efficiency of the
air compressor and save energy.

3. It guarantees accurate transmission ratio, and has high damping characteristics, strong damping ability,
which can effectively eliminate the vibration and shock generated by the host.

Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor

Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor

Remote IoT monitoring system

Remote IoT detection system, equipment full life cycle management,

online monitoring remote management, mobile phone warning, data collection

Product Description

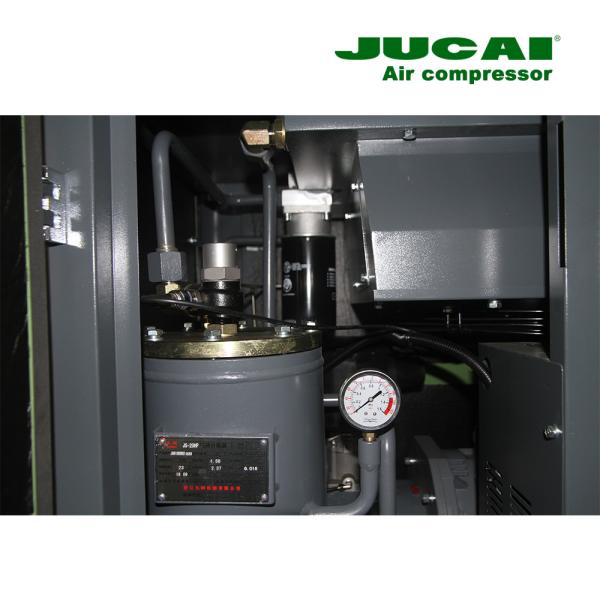

Screw air compressor

Type

Oil Filter: Germany filters ensure longer working life and save the maintenance time and cost.
Stainless Steel Pipes: High and low temperature resistant, high pressure resistan.
Compressed Air Vessel: Reduction of pressure drops and energy costs, quality air with low oil content.
Air End: Original Germany DENAIR air end, advanced profile design.
Electric Motor: Premium efficiency Totally TEFC IP54/IP55 motor (Class F insulation) protects against dust and chemicals etc.
Air Filter: Two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environment.
Cooler: High quality aluminum material, alternating expression cooler fins, ensure the perfect radiating effect.
Advantages:

1.State-of-the-art screw element, original Germany DENAIR air end, advanced SAP profile design, superior Sweden SKF
element bearings.
2.Adopts world-renowned components, such as Schneider electronics from France, Mann filters from Germany, Danfoss pressure sensor
from Denmark, etc. contribute to guarantee the compressor longer service life.
3.Smart touch screen design and 0 pressure drop design.
4.Higher efficiency cooling system and electrical motor.
5.Stainless steel pipes, reasonable inner design, ensure long service life without maintenance.

Remote IoT monitoring system

Remote IoT detection system, equipment full life cycle management,

online monitoring remote management, mobile phone warning, data collection

Product features Famous Brand integrated screw air end
High Efficiency and Energy Saving Permanent Magnet Motor
Efficient fan cooling system
Thickening sound insulation cotton
Using excellent oil-air separator
Inverter produced by the world's top electrical supplier
The air filter has high capacity of absorbing pollutants

Eco-friendly machine case made of excellent steel, corrosion

resistance

Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor

Specifications

Model JYF10 JYF15 JYF20 JYF30 JYF50 JYF75 JYF100
Volt / Ph / Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Power KW / HP 7.5/10 11/15 15/20 22/30 37/50 55/75 75/100
Pressure bar 8 8 8 8 36.2 8 8
Flow m³/min 1.1 1.75 2.25 3.6 24 9.6 12.5
Lubricant 6 10 10 16 35 53
Noise db(A) 68±2 70±2 70±2 72±2 75±2 77±2 78±2
Air Outlet Pipe Diameter G1/2 G3/4 G3/4 G3/4 G1 1/2 G1 1/2 DN40
Dimension 900*700
*910		 1080*780
*1020		 1080*780
*1020		 1080*880
*1220		 1200*1000
*1400		 1560*1140
*1440		 1740*1300
*1610
Weight (KG) 170 260 270 350 500 940 1220

Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor

Wide range of application

Easy Installation 15kw 8bar 20 Hp Screw Compressor Compact Jucai Air Compressor

Our Services

Perfect sales and service management system

Pre-sale services

JUCAI air compressor innovation design not only save maintenance cost, ensure that a low temrature and low system of compressed air temperature, all of the parts good cooling effect, thus the more reliable. Easy to open the door, regular maintenance time, more air filter, oil filter, oil separator is designed to reduce downtime and maintenance costs.

Sale of services

In order to obtain more customer satisfaction and establish long-term stable cooperative relation with our dedication to each and the dealer provide timely, professional services and technical training, so that you will not have to worry about,

1. Free compressed air system consulting, design, planning and any other services, to help customers to design a reasonable compressed air system, economic, and reliable.

2. Free for users training qualified personnel.

After-sales service

1.We have a national sales network, meet the customers' needs to repair and maintenance service and spare parts.

2. 24 hours service, and actively cooperate with the production needs.

3. Parts delivery, installation, debugging, ensure that users receive professional, comprehensive service.

4. Help the customer to run the whole document, in order to keep the latest machine running condition, regular tracking service.

5. The company of engineering and technical personnel, professional engineers and authorized dealers to provide professinal, rapid, efficient service.
