Specifications
Brand Name :
JUCAI
Model Number :
JSC20
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T Pay 30% deposit first
Packaging Details :
Environmental protection wooden box packaging
Motor :
15KW
Exhaust volume :
2.25m³/min
Pressure :
8 bar
Revolve speed :
2940
Dimension :
1080*780*1030
wight :
278KG
Description

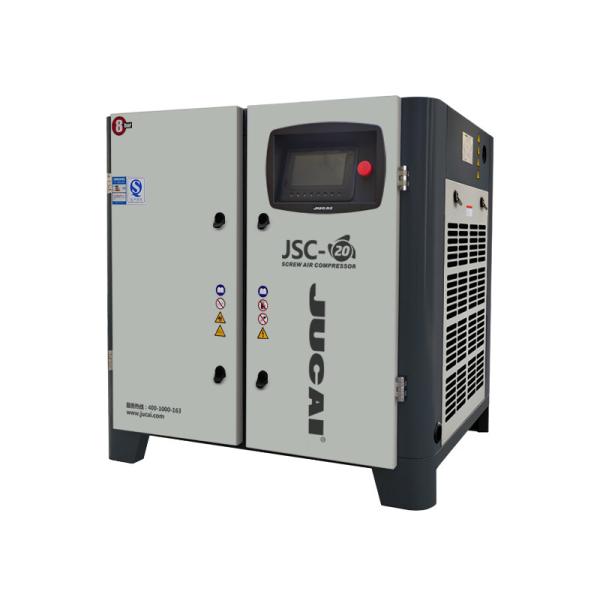

JSC-20 15KW 20HP Screw Air Compressor Industrial Equipment Rotary Screw air compressor to fit the polyurea spray machine

Product display

15KW High Pressure Screw Compressor 2.25m3/Min 20 Hp Rotary Screw Air Compressor JSC-2015KW High Pressure Screw Compressor 2.25m3/Min 20 Hp Rotary Screw Air Compressor JSC-20

15KW High Pressure Screw Compressor 2.25m3/Min 20 Hp Rotary Screw Air Compressor JSC-20

15KW High Pressure Screw Compressor 2.25m3/Min 20 Hp Rotary Screw Air Compressor JSC-20

Product features

Famous Brand integrated screw air end
High Efficiency and Energy Saving Permanent Magnet Motor
Efficient fan cooling system
Thickening sound insulation cotton
Using excellent oil-air separator
Inverter produced by the world's top electrical supplier
The air filter has high capacity of absorbing pollutants

Eco-friendly machine case made of excellent steel, corrosion

resistance

Excellent remote Internet of Things function

Work conditions are well known by the Internet of Things function,
which truly realizes the unattended operation.

Compressor control system is adopted with fully intelligent micro-computer monitoring system,

which is easy to operate. By collecting large data, you can enjoy a relaxed and

pleasant operation experience in the client. Simply through the Internet,

you can view the real-time data of your compressed air system on any computer or

mobile phone without any additional software, which truly realizes the unattended operation.
This product has overload auto-stop protection function,

long-time no-load auto-stop protection function, stop delay protection function,

anti-phase protection function, lack-phase protection function,

high temperature auto-stop protection function, etc.

Air filter, oil filter and oil-air separator element can be displayed the operation time and

have the maintenance instructions. The unit has automatic fault diagnosis,

display, alarm, protection and other functions.

Specifications

Model JSC10HA JSC15HA JSC20HA JSC30HA
Volt/ph/Hz 380/3/50 380/3/50 380/3/50 380/3/50
Power (kw/hp) 7.5/10 11/15 15/20 22/30
Pressure (bar) 8 8 8 8
Flow (m³/min) 1.1 1.6 2.25 3.4
Air Outlet Pipe Diameter G1/2 G3/4 G3/4 G3/4

Dimension

(W x D x H mm)

900*700*900 1080*780*1030 1080*780*1030 1080*880*1220
Weight (kg) 180 268 278 360

FAQ

Q1: What is your product ?
A: Our products includes Piston air compressor; Screw air compressor; Air cooling type compressed air dryer; Air tank; air compressor pump; Air compressor parts.


Q2:Where is your factory located?
A: We are manfacturer, we have office in Shenzhen, and our factory is located in Huizhou Duangdong which nears Shenzhen YANTIAN port and Shenzhen Shekou Port about 2 hours.

Q3:How many air compressor do you produce every year?
A: We can produce 50000set everyday.

Q4: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.

Q5: Can you use our brand?
A: Yes, OEM is available. The M.O.Q can be confirmed base on your request.
