100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
Specifications
Brand Name :
Jufeng
Model Number :
JF-100AHV
Certification :
CE, ISO9001, ASME, etc
Place of Origin :
China
MOQ :
1 unit
Price :
contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram and so on
Supply Ability :
2000 units per month
Delivery Time :
3-7 days after the payment
Packaging Details :
wooden case
Power :
75 KW
Free Air Delivery :
8.82-19.95m3/min 311-704cfm
Voltage Frequency :
380V 50HZ
Protection Grade :
IP54/IP55/IP65
Oil Content :
Less than 3 ppm
Power Source :
Electric
Mute :
Yes
Motor Type :
High Efficiency
Oem :
Avaliable
Color :
Blue
Gas Type :
Air
Marketing Type :
Hot Product 2022
Application :
General Industry
Description

100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment

The efficient main engine and JF series inherent air intake regulation design, cooling flow field design, oil and gas separation technology, efficient motor, intelligent automatic control and other innovative technologies will bring real energy saving benefits to our customers. Using two-stage compression and interstage cooling, the compression process is closer to isothermal compression, and the efficiency is higher. The spray curtain cooling between the two compression stages makes the compression process tend to isothermal compression to achieve the maximum work saving. The key components of the compressor are made of top products, making the JF series with excellent cost performance.

Product parameters

Model Power KW Pressure Mpa Exhaust volume m³/min Noise dB(A) Outlet diameter Size L*W*H Oil capacity Cooling type
JF-100AHV 75 0.5 19.95 70±2 DN80" 2500*1700*1900 70 Air cooling
0.7 15.4 DN65" 2150*1740*1550
0.8 15.2
1.0 12.65
1.3 11.73
1.5 8.82

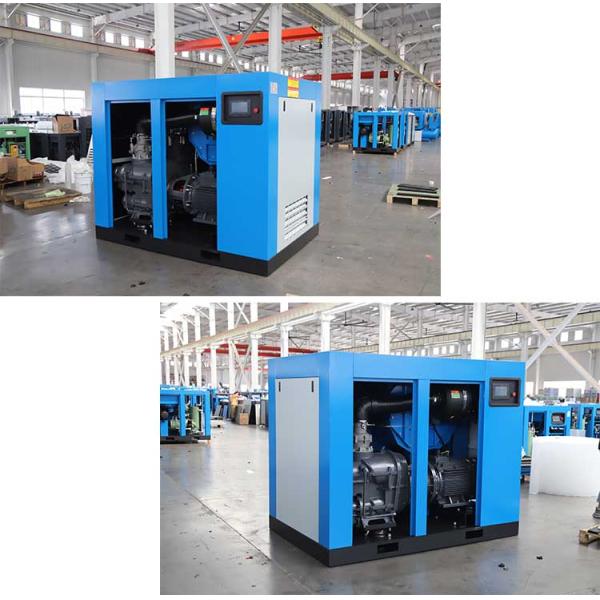

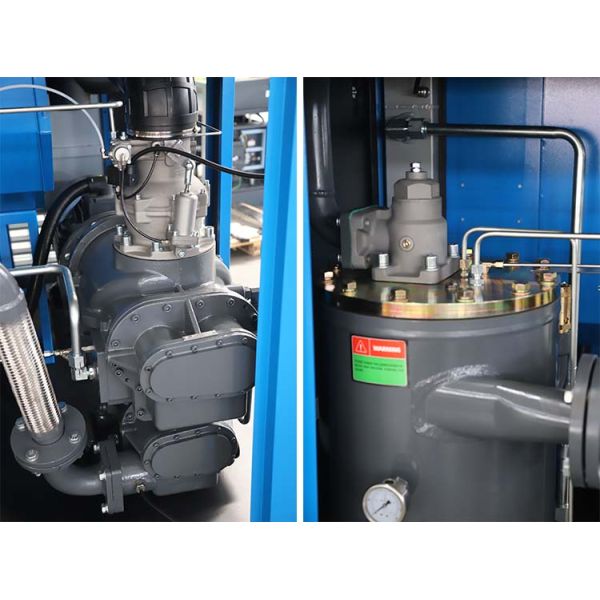

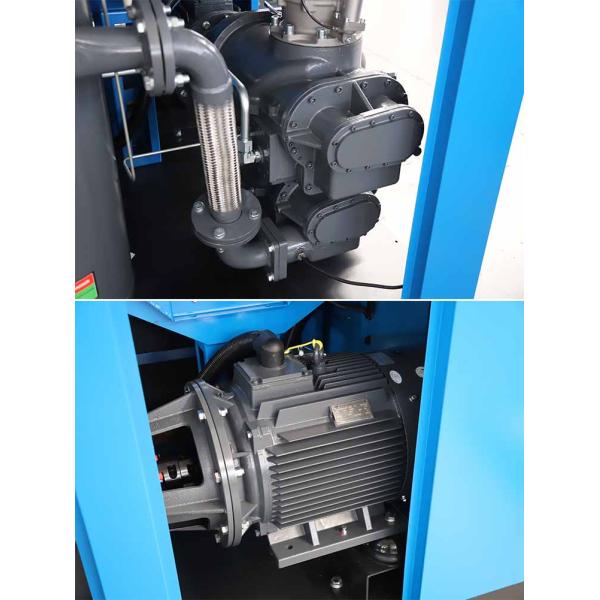

Product pictures

100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment

100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment

100hp 75kw Two Stage Screw Air Compressor For General Industrial Equipment
