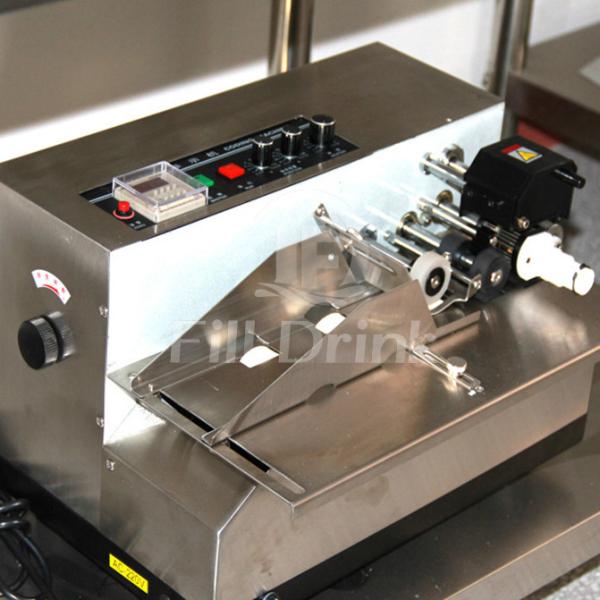

High Definition Automatic Solid Ink Roll Coding Machine With No Consumables
Product Description:
The use of photoelectric integration technology, advanced solid ink wheel, has the excellent performance of instant printing and instant dry, which is not easy to erase. The machine is advanced in design, precise in manufacturing, stable in operation, longitudinally controlled in position by electronic control, arbitrarily adjustable, photoelectrically controlled printing actions and counts, and the number of printable sheets can be set.
Applicable to the surface indentation or color printing production date, product batch number, expiration date, inspection qualification, etc. of paper boxes, labels, tags, certifications, etc., with automatic sorting, automatic counting, random positioning, preset printing times, Indentation is clear, color is optional, printing speed is fast, instantaneous printing instant dry, loss and other advantages.
Technical parameters:
Model | YM-100 |
Voltage | AC 220/50V 110/60HZ |
Power | 180W |
Solid Ink Roller | 35*32MM |
Printing Speed | ≤300Pcs/min |
Object Size | L: 50-500mm W: 30-190mm |
Max Printing Line | T type(10.5PT):11Lines(Max.10 Types/Line) R Type(10.5PT):8 Lines(Max.8Types/Line) |
Printing Size | Within 60 - 250mm |
Type Size | 2*1.5mm(8PT) 2.5*2mm(9PT) 3*3mm(10.5PT) 4*2.5mm(18PT) |
Net Weight | 23kg |
Dimension | 440*345*300mm |
The details of product:
Service:
1. we can send you the video of the running machine.
2. you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3. If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.
Customized service
1. we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2. at the same time we will give you our professional suggestion .
After-sales service
1. we will provide the bill of load on time to make sure you can get the machine quickly
2. when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3. we provide one year warranty with spare parts free.
