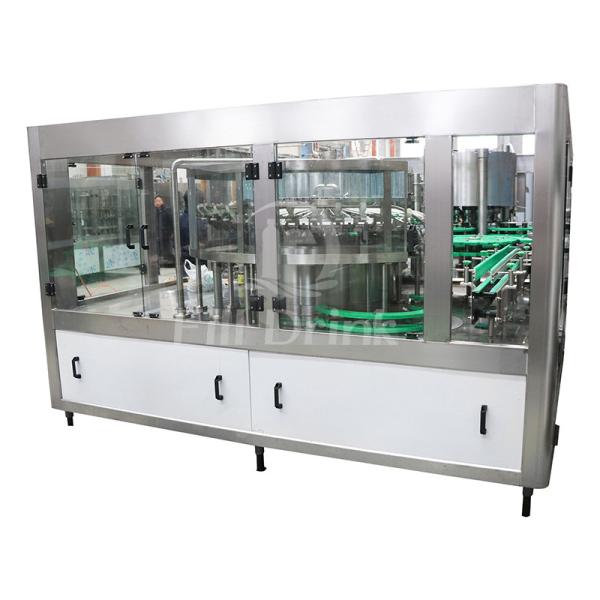

20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor
20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor
20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor
20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor
20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor
20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor
Specifications
Brand Name :
Fill drink
Model Number :
CGF40-40-12
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
51200USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
30days
Packaging Details :
Wood
Automatic grade :
Automatic
Driven type :
Electric
Condition :
New
Dimension(l*w*h) :
3800*2200*2200MM
Type :
Filling Machine
Application :
Beverage
After-sales service provided :
Engineers available to service machinery overseas
Packaging material :
Wood
Voltage :
Can be designed
Packaging type :
Bottles
Weight :
6000kg
Power :
7.8KW
Warranty :
1 Year
Name :
CE SGS ISO juice filling machine
Capacity :
20000BPH
Material :
SS304
Product name :
Complete Production Line for Bottled juice
Filling material :
juice
Processing :
Filling Machine
Description

CGF40-40-12 Juice Filling Machine 20000BPH With Motor Conveyor

Product Description:

The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

Production Advantage

  • Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
  • Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
  • The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
  • High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
  • Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

Fill drink supply and manufacture the followings machines

Model CGF40-40-12
Capacity (B/H) 20000
Bottle size Neck :φ50-100mm:Height:150-320mm
Water Pressure 0.18-0.25Mpa
Washing Water consumption(kg/h) 4500
Washing station 18
Dripping station 15
Filling precision ＜+1MM
Air pressure 0.5Mpa
Air consumption 0.8m3/min
Power(kw) 7.8motor
Weight(kg) 6000
Dimension(L*W*H) 3800*2200*2200 mm

Product Photos:

20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor

20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor

20000B/H Juice Bottle Filling Machine Juice Bottling Equipment With Motor Conveyor

After sale service

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

2. We supply below necessary documents with the machine:

a. Machine layout

b. Electricity diagram

c. Machine certificate

d. General manual book/maintenance book

Customized service
1. we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2. At the same time we will give you our professional suggestion on factory design , bottle design , label design .... etc
