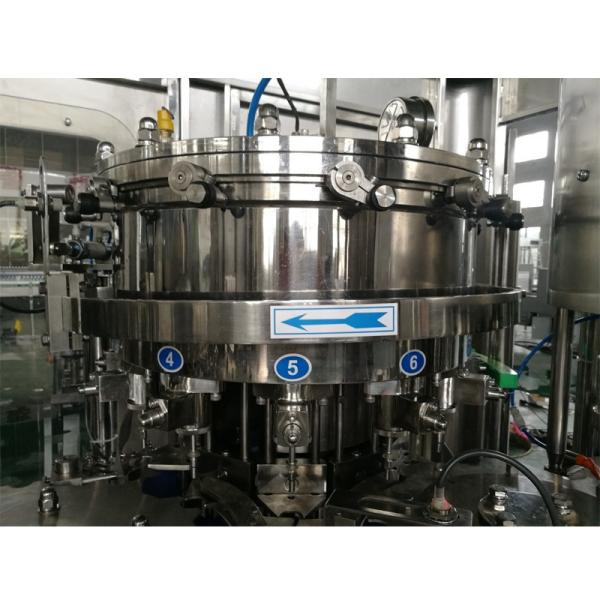

24000 BPH Carbonated Drink Bottling Machine

Product Description

This type of carbonated drink bottling machine combines washing, filling and rotary capping functions in one unit. It is full automatic and high efficiency liquid filling equipment.

It is suitable for packing beverage containing gas.

Characteristics:

Carbonated drink bottling machine's performance is as following all parts, for instance, filling valve, which directly contacts medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation.

Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature.

This carbonated drink bottling machine adopts programmable controller to realize fully automatic control from bottles entering to finishing packing, using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements.

Adopting equal pressure filling principle and current spring valves in order to assure beverage quality, with advanced magnetic coupler to regulate cap-screwing torque assure capping quality.

Technical Parameter:

Technological Flow Sheet (Carbonated Drink Production Line):
1. PET Preform Injection Molding System
PET material→ Dehumidify→ Load material→ Injection machine→ Preform

2. PE/PP Cap Compression Molding System
PE material→ Dehumidify→ Load material→ Compression machine→ Cap

3. PET Bottle Blowing System
PET Preforms→ heat preform→ stretch→ blowing→ bottles

4. Water Purifying System
Raw water→ Multistage centrifugal stainless pump→ Quartz sand filter→ Active carbon filter→ Water softner→ Micro filter→ Reverse osmosis→ UV sterilizer→ Water tank→ Pump

5. Carbonated Beverage Preparing System
Sugar melting tank→ Pump→ Syrup filter→ Mixing tank→ Pump→ Syrup cooler→ Carbonated Mixer←Cooling water tank← Chiller CO2 filter

6. Filling, Labeling and Packing System
(Bottle Unscramble)→ Air conveyor→ Rinsing, Filling& Capping Mono-Block→ Lamp checker→ Conveyor→ Bottle Warmer→ Dryer→ Auto labeling machine→ Date printer→ Auto PE Film pack shrinking machine/Carton packing machine→ Stock
