Specifications
Brand Name :
Leadjet
Model Number :
T300
Certification :
ISO, CE, SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
1000set/year
Delivery Time :
5-7 working days after confirm the payment
Packaging Details :
Carton Box, 44x25x14, 3.7KG
Plate type :
TIJ Inkjet Printer
Automatic grade :
Automatic
Ink type :
Quick-dry cartidge
Ink colors :
Blue,yellow,Black,green,red
Type :
TIJ Inkjet Printer
Print head :
Single,support double and several heads
Description

1- 12.7mm Printing Height TIJ Inkjet Printer , Expiry Date Batch Coding Printer


Using a thin film resistor, the ink is instantaneously heated in the ink ejection area (instantly heated to above 300 ° C) to form numerous tiny bubbles, which accumulate as large bubbles and expand at an extremely high speed, forcing the ink droplets to be ejected from the nozzle to form Required text, numbers, barcodes. As the bubble continues to expand, it will disappear and return to the resistor; the bubble will disappear and the nozzle ink will shrink back. Immediately after the surface tension generates suction, the new ink is added to the ink ejection area to prepare for the next cycle printing.

Tecchnical Specifications

Model T300 Leadjet TIJ High Speed 42ml Cartridges Industrial Inkjet Printer
Display 5-inch color display
Status indication Ink monitoring, device status, USB application, synchronizer, external photoelectric auto-detection and access
Operating language

English/Chinese

Operation interface Full-color touch screen input, making operation easier
Print content Date/time, Expiry date, counter, box/stack counter, class, barcode, QR code, English, numbers, Chinese, graphics, trademarks, symbols
Printing height 1 mm to 12.7mm
Data storage capacity up to 500
Print resolution Standard 300DPI, optional DPI
Input power AC 90V-240V, 50/60Hz, 12V/3A, 36W (dedicated power adapter)
Best print distance Less Than 6mm
Size (L × W × H) Controller: 162×92×31mm
Standard nozzle:144×95×60 mm
Ink Volume: 42 ML
Color: Black, red, blue, green, white
Nature:Water-based, fast-drying, water-based invisible ink, quick-drying invisible ink
USB2.0 interface Support U disk. Standard
External three-color warning light External three-color warning light (Extra charge)
Working conditions Any normal, non-condensing or harsh environment.
Operating environment -10-+45°C; 10%-85%RH
Storage environment -25-+55°C; 10%-90%RH
Warranty 12 month (excluding consumables)



Thermal Foaming Inkjet Printer (TIJ) Advantage
First, the sealed ink cartridge. There is no leakage and waste, and more emphasis is placed on cost control, so that customers can use the process to reduce the purchase cost of consumables to a greater extent.
Second, no need to use solvents. Compared with traditional small characters or large character printers, the cost incurred during use is lower, which is more conducive to the printing of large quantities of products.
Third, the equipment does not require maintenance, and the cost of maintenance and use is low. Around the use process, TIJ inkjet printer does not require common maintenance and maintenance. It only replaces the new ink cartridge when the ink cartridge is used. It greatly reduces the difficulty of the customer's operation and reduces the technical requirements for the production line workers. Simple and practical.


The thermal foaming printer is easy to operate, easy to install, powerful in printing, and can print real-time data, barcodes, QR codes, databases, etc. The editing function is powerful, and it can edit more than 8 lines, exceeding 99% of small characters. Printer.
The structure is simple, generally consists of three parts: main unit, power supply and nozzle. No filter, no need for cleaning and maintenance, multi-head coding can be realized. More than 24 nozzles can work at the same time. Other color inks can be replaced at any time, such as black and yellow. , red, blue, white and other colors.

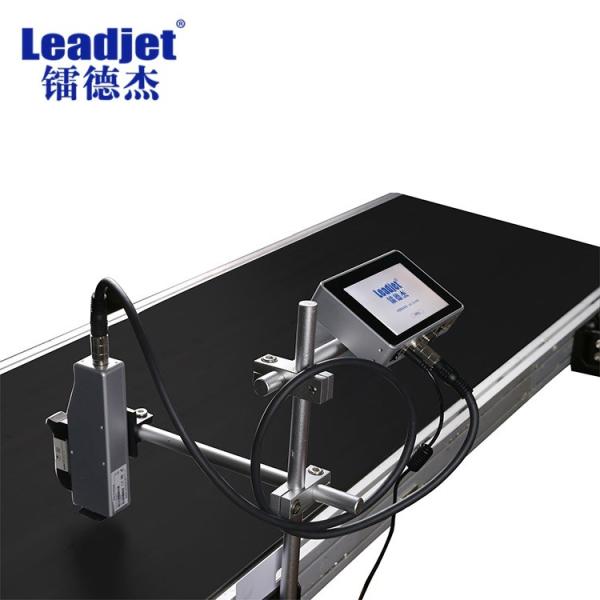

Automatic TIJ Inkjet Coding Printer 12.7mm Printing Height 5 Inch Display


The Photo of TIJ T300 Ink Cartridge
Automatic TIJ Inkjet Coding Printer 12.7mm Printing Height 5 Inch Display

FAQ

Q: Are you factory or trading company?

A: Founded in 1997,located in Wuhan,Leadjet is an integrated industrial and trade enterprise which has 31 branches and offices all over China.We sincerely invite you to visit our enterprise!

Q: Is your machine avaliable to my product?

A: Show us your product and the content you want to print on, we can print on the sample and send the video to you. And you can also deliver your sample to us, we print on the sample and deliver it back to you.The freight shall be borne by the buyer.

Q: I have never operated inkjet printer before, is it easy to operate on?

A: We will provide English Service Manual and you can also view our Youtube about the operating video, there is no problem for you even if you didn’t know it before.

Q: How about the ink consumption?How long can a bottle of ink be used?

A: It’s related to the content you print on and your daily capacity.

Q: What if the machine is broken?

A: We will solve your problem by three steps:

1, Please take a video of the problem to us.

2, Our professional after-sales engineer will test on the problem and provide you a solution.

3, It’s avaliable to free-replace spare parts within guarantee period, and we can also provide you related videos of replacement.The freight of spare parts shall be borne by buyer.

Q: What about your service?

A: We offer 7*24 hours online service,please contact us
