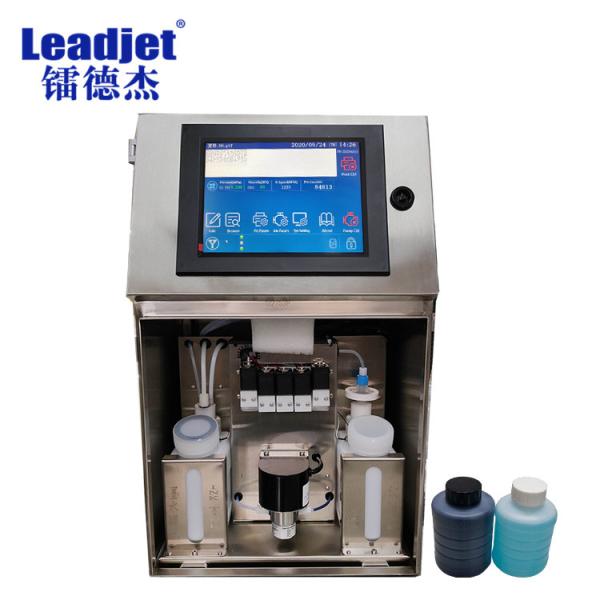

CIJ Inkjet Printer Open Ink Tank Printing Speed 280m/min For Eggs Food Packaging Beverage
Specification
Line Speed Capability | Can print 1-5 lines, 280m/min(5*5 dots) |
Font Matrix Configuration | Single-line:5*5, 5*7, 8*12, 11*16, 17*24, 24*24, 32*32 Twin-line: 5*5, 5*7, 8*12, 12*12 , Tri-line: 5*5, 5*7, 8*8 Quad-line:5*5, 5*7 Pent-line:5*5 |
Character Height | 1.5mm-20mm. Best:10mm Maximum can be widened 9 times |
Memory Capacity | Up to 1000 messages |
Print Distance | 30mm Max. From print-head bottom to printing surface |
Custom Logo/Graphics | Can be created on printer or via USB |
Data Interface | USB |
Printhead Umbilical | Ultra flexible, Length:2.7m, can be customized |
Printhead | Heated printhead Nozzle:62μm standard. 70μm /50μm (optional) |
Fluids Containers | Smart Cartridge, Ink/ Make-up 0.749 qt. (700ml) |
Ink Type | dye-based ink |
Electrical requirements | AC100-220V, 50/60Hz, 100W. 110V~380V(Optional) |
Display and Keyboard | 8-inch full-color high-definition touch screen, |
Feature
1. Quick-dry ink used industrial non-contact small character inkjet printers
2. Improved stability, easier maintenance
3. Intelligent ink system
3. Print features include DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK
4. Easy to be integrated at any position of the production line
5. User friendly interface and most reliable ink system
6. Easy operate and can trouble free run long time
7. USB Port for logo and other complicated printing contents
8. Economic and can satisfy most printing requirements
Print Head
1.Compatible design, maintenance friendly
2.Ruby nozzle and difficult to be blocked
3.Nozzle Size: 62 μm standard, 52 to 70 μm optional
4.Can be installed in any position
5.Integrated design and Easily accessible
