ASTM 309S Stainless Steel Strip Coil Mill Edge / Slit Edge Prime Grade
ASTM 309S Stainless Steel Strip Coil Mill Edge / Slit Edge Prime Grade
Specifications
Brand Name :
YONGJIN HONGWANG BAOSTEEL
Model Number :
309S
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
by T/T 20% at order, balance before shipment; or full payment by irrevocable L/C at sight
Supply Ability :
2000mt / month
Delivery Time :
15-45 days
Packaging Details :
Standard Package or as per customer instruction
Standard :
ASTM A 240/480
Grade :
Prime
Thickness :
0.3mm~3.0mm
Width :
1000 1030 1219 1240 1250 1500 1530 1550
Edge :
Mill edge or Slit edge
Finish :
2B 2D BA No.3 No.4 HL
Paper Interleaved :
Yes
Description

Quick Detail:

Stainless steel strip coil/CR stainless steel strips/Cold rolled stainless steel coils

Description Stainless steel strip coil/CR stainless steel strips/Cold rolled stainless steel coils
Grade 309S
Thickness 0.3-3.0mm
Finish 2B 2D BA No.3 No.4 HL
Width 1000/1030/1219/1240/1250/1500/1530/1550mm
Edge slit edge/mill edge
Standard ASTM
Coil ID 508/610mm
Thickness tolerance to be defined with customers
Surface treatment Cold rolled,annealed, pickled
Coil weight 4-22MT or as per clients request
Q'ty tolerance +/-10% on order quantity
Paper Interleaved Yes
Country of Origin made in China
Payment terms by T/T or L/C
Packaging Seaworthy standard export package with pallet

Finish Definition:

No.2D: Cold-rolled, annealed and pickled without skinpass. the dull products can be used as automobile parts,building materials and pipes

No.2B: The surface brightness and flatness of No.2B is better than No.2D. Then through a special surface treatment to improve its mechanical properties. No.2B could nearly satisfy comprehensive uses.

No.3: Polished with abrasive belt of grit #100-#120, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building.electrical applicances and kitchen utensils etc.

No.4: Polished with abrasive belt of grit #150-#180, have better brightness with discontinuous coarse stria,but thinner than No.3, are used as bathtub building's inner and external ornaments electrical appliances,kitchen utensiles and food processing equipment etc .

HL: Polished with abrasive belt of grit#150-#320 on the No.4 finish and has continuous streaks, mainly used as building's ornaments,elevators,door of building,frontal plate etc.

BA: Cold rolled,brigth annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror,used for electrical applicances,mirrowr,kitchen apparatus,ornament materials etc.

Chemical Composition and Mechanical Properties

Type Grade Chemical Composition(%)
C Si Mn P S Ni Cr
309S 0.08 1.00 2.00 0.045 0.03 12.00～15.00 22.00～24.00
Mechanical Properties
Material Yield Point Tensile Strength Elongation Hardness
YS0.2(Kg/mm2) TS(Kg/mm2) EL(%) HRB HV
309S 205 520 40 200 90

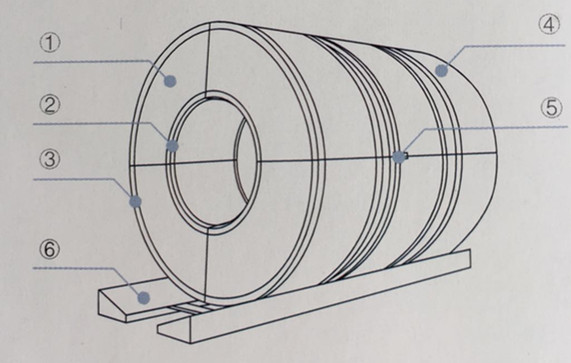

Standard Export Packing:

1. Protection paper between each coil loop

2. Internal wrapped with water proof paper and protection cardboard

3. Internal and external metallic corner.

4. Wrapping bands: No.3 Circumferential straps +No.4 radial straps

5. Locked by wire buckled

6. With pallet, and pallet is fumigated.
