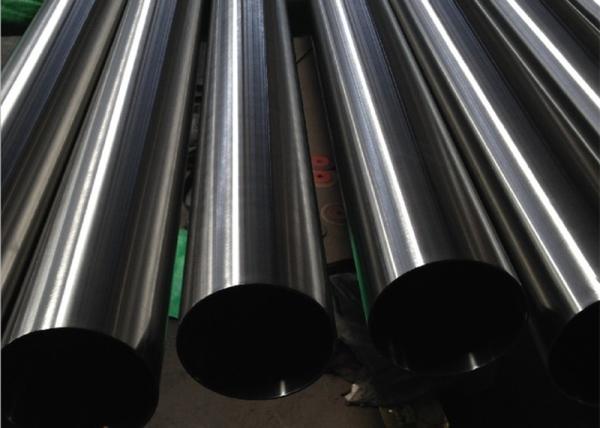

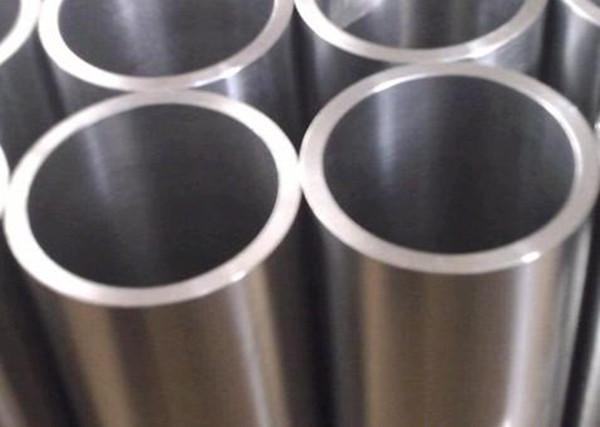

High Performance Stainless Steel Pipe 0.7mm - 4.0mm Outer Side Diameter
High Performance Stainless Steel Pipe 0.7mm - 4.0mm Outer Side Diameter
High Performance Stainless Steel Pipe 0.7mm - 4.0mm Outer Side Diameter
High Performance Stainless Steel Pipe 0.7mm - 4.0mm Outer Side Diameter
Specifications
Brand Name :
Juye
Model Number :
304 310S 309S 409L
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
by Irrevocable L/C
Supply Ability :
500T
Delivery Time :
from 15dd to 45 dd
Packaging Details :
Robust package
Description :
Stainless steel welded pipe
Grade :
304 310S 309S 409L
Nominal Diameter :
16mm~115mm
Outerside Diameter :
0.7mm-4.0mm
Standard :
ASTM A249
Length :
As per request
Application :
For Condenser,Heat exchanger and Boiler
Description

ASTM A249 stainless steel welded pipe for condenser, heat exchange&Boiler

Advantage of stainless welded pipes

Due to product characteristics of high wall thickness uniformity, smooth and delicate surface,high temperature resistance, hight pressure resistance,corrosion resistance,long service life,energy saving and environmental protection and so on. The stainless steel welded pipe gradually tends to expand the scope of application and to enter may fields in which seamless tube could undertake in the past.

Products Range

High Performance Stainless Steel Pipe 0.7mm - 4.0mm Outer Side Diameter

Dimensional Tolerance Table

ASTM A249

Outside Diameter (mm) Thickness (mm) Length (mm)
<25.4 ±0.10 ±10% OD<50.8±3.0-0 OD≥50.8 ±5.0-0.
≥25.4~38.1 ±0.15
≥38.1~50.8 ±0.20
≥50.8~63.50 ±0.25
≥63.5~76.2 ±0.30
≥76.2~101.6 ±0.38
≥101.6~190.5 +0.38 -0.64
≥190.5~228.60 +0.38 -1.14

Main Application:

The pipes are widely used in high pressure power boiler,superheating steam tube,boiling water pipe&superheating tube for locomotive boiler.

High Performance Stainless Steel Pipe 0.7mm - 4.0mm Outer Side Diameter
