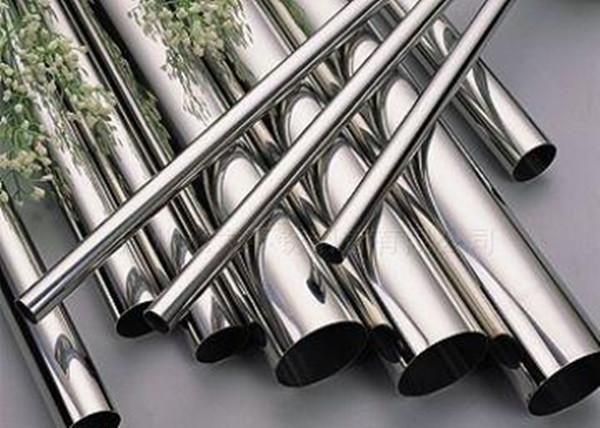

OD 8 - 108mm Stainless Steel Pipe For Mechanical Structure / Building
OD 8 - 108mm Stainless Steel Pipe For Mechanical Structure / Building
Specifications
Brand Name :
JUYE,SINOSTEEL
Model Number :
304 304L 316L 310S 309S
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
20% T/T at PO, 80% before shipment
Supply Ability :
200T
Delivery Time :
within a month
Packaging Details :
Packed in wooden boxes
Description :
Stainless steel tube
Grade :
304 304L 316L 310S 309S
Outer Diameter :
8-108mm
Standard :
ASTM A554 JIS G3446
Thickness :
0.25-3.0mm
Length :
As per request
Application :
Mechanical Structure and Building decoration
Shape :
Round tube
Description

Main Specification:

Description:Stainless steel tube

Shape:Round

Grade:304 304L 316L 310S 309S

Outer Diameter:8-108mm, see here below the attached list.

Standard:ASTM A554 JIS G3446

Thickness:0.25-3.0mm

Payment terms: 20% T/T at PO, 80% before shipment

Delivey:within a month


Products Range

Outside Diameter Thickness(mm)
mm Inch 0.25 0.30 0.35 0.40 0.50 0.60 0.70 0.80 0.90 1.00 1.20 1.50 2.00 2.50 3.00
8 ● ● ● ● ● ● ● ● ● ●
9.5 3/8" ● ● ● ● ● ● ● ● ● ●
10 ● ● ● ● ● ● ● ● ● ●
12 ● ● ● ● ● ● ● ● ● ● ●
12.7 1/2“ ● ● ● ● ● ● ● ● ● ● ●
13 ● ● ● ● ● ● ● ● ● ● ●
14 ● ● ● ● ● ● ● ● ● ● ●
15 ● ● ● ● ● ● ● ● ● ● ●
15.9 5/8“ ● ● ● ● ● ● ● ● ● ● ●
18 ● ● ● ● ● ● ● ● ● ● ●
19.1 3/4“ ● ● ● ● ● ● ● ● ● ● ● ● ●
20.5 ● ● ● ● ● ● ● ● ● ● ● ● ●
22.2 7/8“ ● ● ● ● ● ● ● ● ● ● ● ● ●
24 ● ● ● ● ● ● ● ● ● ● ● ● ●
25.4 1“ ● ● ● ● ● ● ● ● ● ● ● ● ●
28.6 1 18/“ ● ● ● ● ● ● ● ● ● ● ● ● ●
29 ● ● ● ● ● ● ● ● ● ● ● ● ●
30 ● ● ● ● ● ● ● ● ● ● ● ● ●
31.8 1 1/4“ ● ● ● ● ● ● ● ● ● ● ● ● ●
34 ● ● ● ● ● ● ● ● ● ● ● ● ●
35 ● ● ● ● ● ● ● ● ● ● ● ● ●
36 ● ● ● ● ● ● ● ● ● ● ● ●
38.1 1 1/2“ ● ● ● ● ● ● ● ● ● ● ● ●
40.5 ● ● ● ● ● ● ● ● ● ● ● ●
41.3 1 5/8“ ● ● ● ● ● ● ● ● ● ● ● ●
42.7 ● ● ● ● ● ● ● ● ● ● ● ●
44.5 1 3/4“ ● ● ● ● ● ● ● ● ● ● ● ●
47 ● ● ● ● ● ● ● ● ● ●
50.8 2“ ● ● ● ● ● ● ● ● ● ● ●
54 ● ● ● ● ● ● ● ● ● ● ●
57 ● ● ● ● ● ● ● ● ● ● ●
60 ● ● ● ● ● ● ● ● ● ● ●
63.5 2 1/2“ ● ● ● ● ● ● ● ● ● ● ●
70 ● ● ● ● ● ● ● ● ● ● ●
76.2 3“ ● ● ● ● ● ● ● ● ● ● ●
84 ● ● ● ● ● ● ● ● ● ● ●
85 ● ● ● ● ● ● ● ● ● ● ●
86.9 ● ● ● ● ● ● ● ● ● ● ●
88.9 3 1/2“ ● ● ● ● ● ● ● ● ● ● ●
101.6 4“ ● ● ● ● ● ● ● ● ● ● ●
108 ● ● ● ● ● ● ● ● ● ●

Calculation for Stainless steel pipe weight

Grade Density(Kg/dm3) Calculation
SUS304 SUS304L 7.93 W=0.02491 t(D-t)
TP304 TP304L 7.90 W=0.02482 t(D-t)
SUS316 SUS316L 8.00 W=0.02513 t(D-t)
TP316 TP316L 8.00 W=0.02513 t(D-t)

Mechanical Characteristics

Grade Tensile Strength(N/mm2) Hardness (HRB) Yield Strength(N/mm2) Elongation (%) Ref.Standard
304 ≤670 ≤88 ≥205 ≥55% ASTM A240/A 240M-2012
316L ≥485 ≤88 ≥170 ≥55% ASTM A240/A 240M-2012
304J1 ≥450 ≤90 ≥155 ≥40% JIS G4304 -2012
321 ≥520 ≤90 ≥205 ≥55% JIS G4304 -2012
S30100 ≤750 ≤93 ≥205 ≥55% ASTM A240/A 240M-2012
S32205 ≥655 ≤32 ≥450 ≥25% ASTM A240/A 240M-2012
309S ≥515 ≤88 ≥205 ≥40% ASTM A240/A 240M-2012
310S ≥515 ≤88 ≥205 ≥40% ASTM A240/A 240M-2012

Main Application:

  • Machinery
  • Medical Equipment
  • Fitness Equipment
  • High speed Trains
  • Automotives
  • Interior Decoration

OD 8 - 108mm Stainless Steel Pipe For Mechanical Structure / Building
