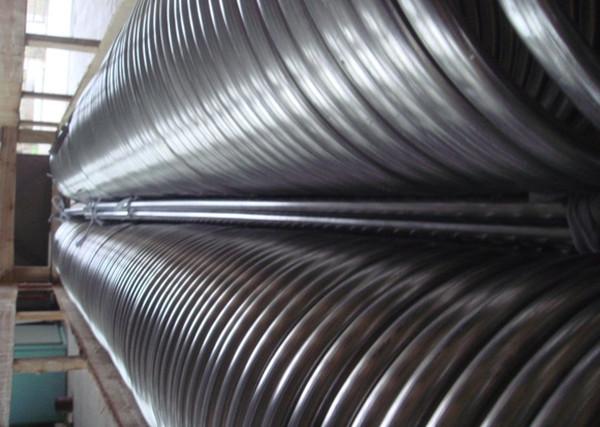

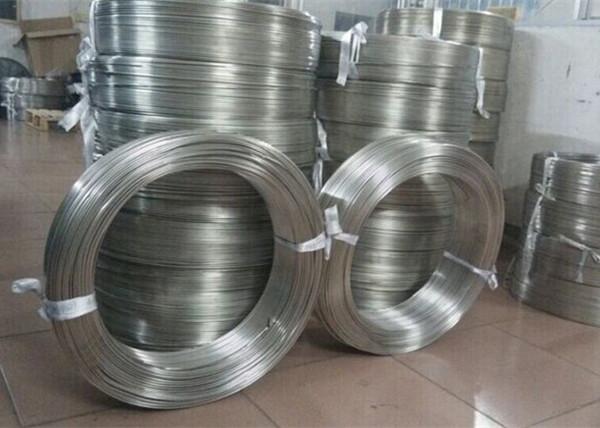

Grade A Stainless Steel Wire Rod Excellent Formability Customized Length
Grade A Stainless Steel Wire Rod Excellent Formability Customized Length
Grade A Stainless Steel Wire Rod Excellent Formability Customized Length
Grade A Stainless Steel Wire Rod Excellent Formability Customized Length
Specifications
Brand Name :
Tsingshan
Model Number :
304L SUS304L S30403 1.4306
Certification :
ISO9001 ISO14001
Place of Origin :
CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
By T/T or by L/C
Supply Ability :
5000T per month
Delivery Time :
from 3-6 weeks
Packaging Details :
Standard packaging
Description :
Stainless steel rod
Grade :
Grade A
Diameter :
5mm~38mm
Application :
metal line and Cold heading
Shipping terms :
CIF FOB CFR
Length :
Cut to customer needs
Coil weight :
500kg~2500kg
Country of origin :
Made in China
Standard :
JIS G4303 JIS G4311 ASTM A959 EN10088-3
Description

304L SUS304L S30403 1.4306 stainless steel wire rods for metal lines and cold heading

Main Specification:

Description:Stainless steel rod

Grade:304L SUS304L S30403 1.4306

Diameter: 5mm,5.5mm,6mm,5mm,7mm,7.5mm,8mm,8.5mm,9mm,9.5mm,10mm,11mm,11.5mm,12mm,13mm,15mm,16mm,17mm,18mm,19mm,20mm,21mm,22mm,23mm,24mm,25mm,26mm,28mm,30mm,32mm,34mm,38mm

Coil weight: 500kg~2500kg

Dimensional Tolerance: Grade A

Dimensional Tolerances for stainless steel wire rod

Diameter (mm) Grade A
Tolerance(mm) Ovality(mm)
≥5.0~10 ±0.30 ≤0.50
>10~15 ±0.40 ≤0.60
>15~25 ±0.50 ≤0.70
>25~38 ±0.60 ≤0.96

Chemical Composition:

CHEMICAL COMPOSITION(%) JIS ASTM EN
C (max) 0.03 0.03 0.03
Si (max) 0.75 0.75 1.00
Mn (max) 2.00 2.00 2.00
P (max) 0.045 0.045 0.045
S (max) 0.03 0.03 0.015
Mn (max) 0.10 0.10 0.11
Ni 9.00~13.00 8.00~12.00 8.00~12.00
Cr 18.00~20.00 17.50~19.50 17.50~19.50

Main Characteristics:

Same as grade 304, grade 304L has good formability, welding, corrosion resistance, and it's without magnetic after solution,but there's micro magnetic after cold processed. As grade 304L has low Carbon composition compared to grade 304, it has more good resistance to intergranular corrosion.

Application

usage: similar to grade 304, it's mainly used for foodware and kitchenware, chemical equipment, various head type,rod type, nail tip shape of the stainless steel screw,bolt, screw, nail rivet, tie line, hose connector and steel wire rope for oil and gas.
