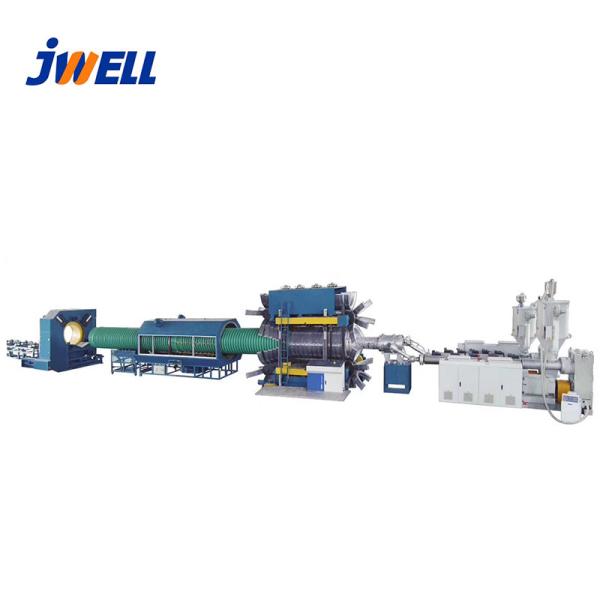

Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated
Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated
Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated
Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
Jwell
Certification :
ISO9001
Supply Ability :
50 Set/Sets per Year
Packaging Details :
wooden pellet with plastic package as standard.
MOQ :
1 Set/Sets
Price :
Negotiable
Condition :
New
Application :
Pipe
Plastic Processed :
HDPE PP PVC
Screw Design :
Single-screw
Automatic Grade :
Automatic
Voltage :
Customized
Power(W) :
690kw
Dimension(L*W*H) :
60m*3m*4m
Weight :
30T
After-sales Service Provided :
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty :
1 Year, 1 Year
Port :
Shanghai
Description
Product Description

Product Application

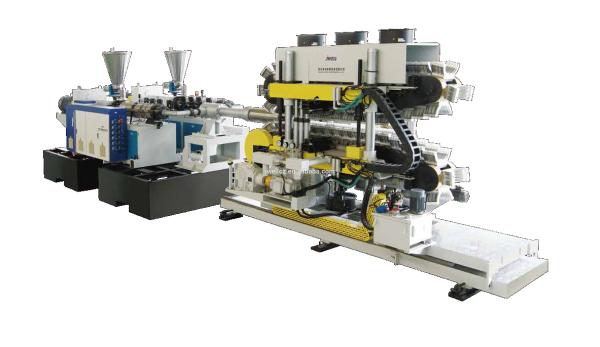

DWC pipe is mainly used for water drainage system.It is a fully computer controlled line.It features high and stable output capacity,and highly automatic operation.For HDPE,you can choose high efficient single screw extruder.For PVC,you can choose conical twin- screw extruder or parallel twin-screw extruder.Forming system consists mold and corrugator.Mold blocks can be easily changed and they have air or water cooling system.The belling process is on line.High precision cutting can be guaranteed by cutting machine.The production line can also be equipped with SIEMENS PLS system.

Type
Pipe Diameter(mm)
PVC output(kg/h)
HDPE Output(kg/h)
Max Speed(m/min)
Total Power(KW)
JWSBL-600
200-600
650-800
600-800
3.5
500
JWSBL-800
200-800
1200
1000
3.0
680
JWSBL-1000
200-1000
1300
1200
2.5
710
JWSBL-1200
600-1200
1400
1400
1.0
800

Main Features

1. High Efficiency Extruder, around 250kW energy cost per ton material.

2. Optimized Die Head design, suitable for wide material, with Inner Cooling System.

3. Non-Dust Cutting system

Certifications
Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall CorrugatedConduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated
Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall CorrugatedConduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated
Detailed Images
Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated

Machine Parts

Name: Main Gearbox

Brand: Falk

Original: USA

High Torque Gear Box, US Brand assembling in China

Machine Parts

Name: Main Motor
Brand: WEG
Original: Brazil
High quality AC motor, global service.

Conduit Pipe Extrusion Line , Plastic Pipe Manufacturing Machine Wall Corrugated

Machine Parts

Name: Die Head
Brand: Jwell
Original: China
Optizimed Hot Runner Design with full Automatic CNC machine production.

Main Features

Name: Vacuum Tank
Brand: Jwell
Original: China
Automatic Water Level and Temperature Control;

Precision Water Flow Control System for Calibrator;

VFD Vucuum Control System.

* Inquiry and consulting support.

* Factory testing available.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
5-6 40 feet containers
Weight
30 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
