Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading
Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading
Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading
Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading
Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading
Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading
Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading
Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading
Specifications
Place of Origin :
Shanghai, China (Mainland)
Brand Name :
Jwell
Certification :
ISO9001
Supply Ability :
50 Set/Sets per Year
Packaging Details :
wooden pellet with plastic package as standard.
MOQ :
1 Set/Sets
Price :
Negotiable
Condition :
New
Application :
Pipe
Plastic Processed :
HDPE PP PVC
Screw Design :
Single-screw
Automatic Grade :
Automatic
Voltage :
Customized
Power(W) :
690kw
Dimension(L*W*H) :
60m*3m*4m
Weight :
30T
After-sales Service Provided :
Field installation, commissioning and training, Engineers available to service machinery overseas
Warranty :
1 Year, 1 Year
Port :
Shanghai
Description

Product Description

Type

Pipe Diameter(mm)

PVC output(kg/h)

HDPE Output(kg/h)

Max Speed(m/min)

Total Power(KW)

JWSBL-600

200-600

650-800

600-800

3.5

500

JWSBL-800

200-800

1200

1000

3.0

680

JWSBL-1000

200-1000

1300

1200

2.5

710

JWSBL-1200

600-1200

1400

1400

1.0

800

Product Application

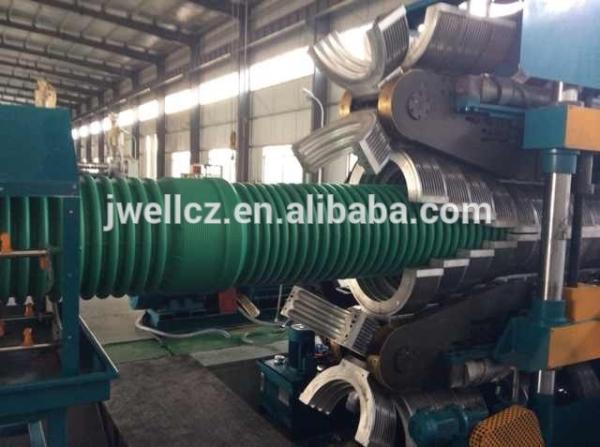

DWC pipe is mainly used for water drainage system.It is a fully computer controlled line.It features high and stable output capacity,and highly automatic operation.For HDPE,you can choose high efficient single screw extruder.For PVC,you can choose conical twin- screw extruder or parallel twin-screw extruder.Forming system consists mold and corrugator.Mold blocks can be easily changed and they have air or water cooling system.The belling process is on line.High precision cutting can be guaranteed by cutting machine.The production line can also be equipped with SIEMENS PLS system.

Main Features

1. High Efficiency Extruder, around 250kW energy cost per ton material.

2. Optimized Die Head design, suitable for wide material, with Inner Cooling System.

3. Non-Dust Cutting system

Detailed Images

Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading

Machine Parts

Name: Main Gearbox

Brand: Falk

Original: USA

High Torque Gear Box, US Brand assembling in China

Machine Parts

Name: Main Motor
Brand: WEG
Original: Brazil
High quality AC motor, global service.

Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading

Machine Parts

Name: Die Head
Brand: Jwell
Original: China
Optizimed Hot Runner Design with full Automatic CNC machine production.

Main Features

Name: Vacuum Tank
Brand: Jwell
Original: China
Automatic Water Level and Temperature Control;

Precision Water Flow Control System for Calibrator;

VFD Vucuum Control System.

Our Service

Double Wall Corrugated PVC Pipe Making Machine Vertical Type Fast Loading

Pre-Sales Service

* Inquiry and consulting support.

* Factory testing available.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging

Size

5-6 40 feet containers

Weight

30 T

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
