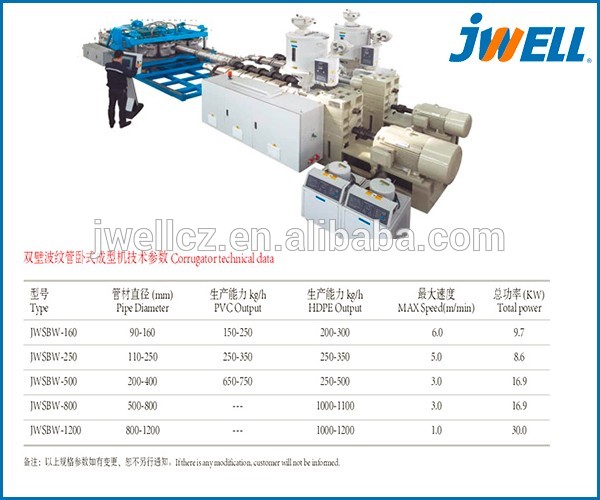

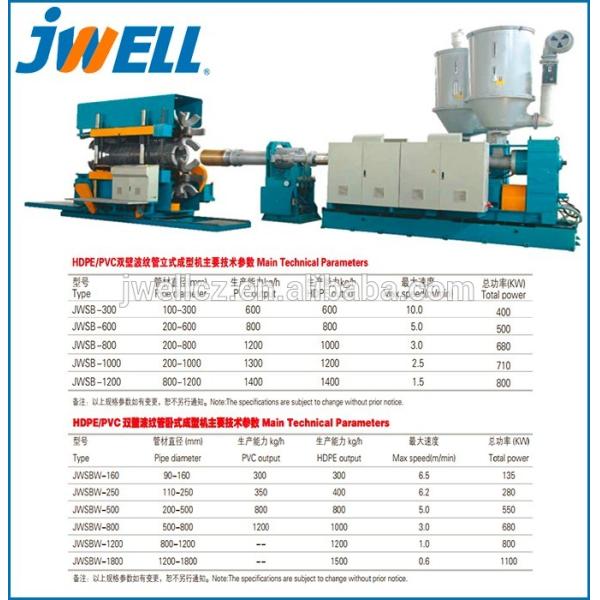

Jwell HDPE/PP/PVC Vertical Type Double Wall Corrugated Pipe and PVC Ribbed Pipe Extrusion Line:

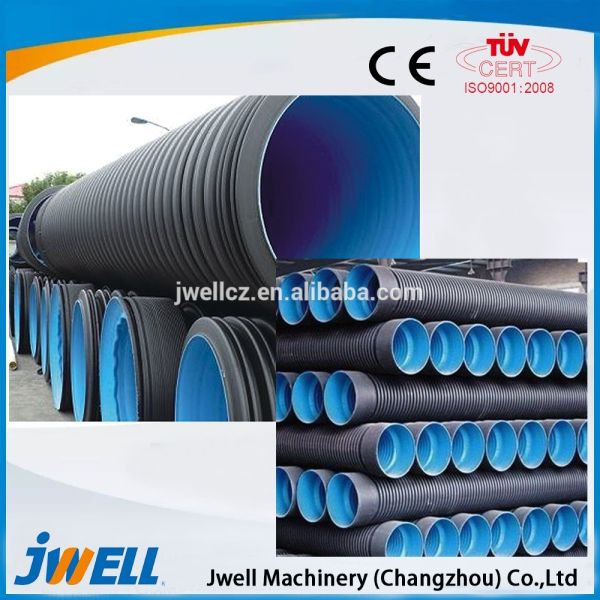

DWC pipe is mainly used for water drainage system. It is a fully computer controlled line. It features high and stable output capacity, and highly automatic operation. For HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin-screw extruder or parallel twin- screw extruder. Forming system consists mould and corrugator. Mould blocks can be easily changed and they have air or water cooling system. The belling process is on line. High precision cutting can be guaranteed by cutting machine. The production line can also be equipped with SIEMENS PLC system.

Properties: HDPE/PP/PVC horizontal type DWC pipe extrusion line produced by Jwell has many patents. Full automatic control, running stable, high capacity. HDPE/PP material use high efficient single screw extruder, and PVC material use conical twin screw extruder or parrallel twin screw extruder. Horizontal type corrugator adopt advanced shuttle-type structure, closed water cooling system, on-line belling. Whole line is controlled by PLC computer.

Special Use Single Wall and Double-wall Corrugated Pipe Extrusion Line

Extruder

Name: YF600 Twin screw extruder

Brand:Jwell

Screw: Jin Hailuo

Type:65/33

Capacity:100-120kg/h

Electrical parts

Power: 37kw
Motor: Siemens
Control Panel: Simens PLC
Electrical Spareparts: Schneider

Frequency convertor: ABB

Haul-off Unit

Quantity of claw: 3

Haul-off motor：1.5KW x 3 sets
Imported inverter
Effective Length of haul-off caterpillar: 1800mm
Speed :1.2-20m/min

Vacuum calibration table

Calibration tanks and basin are made of stainless steel
Vacuum tank length: 8000mm.
Cooling tank: 1800mm
Water pump：3kw+4kw
Vacuum pump: 3kw+4kw

Jwell--The largest plastic extrusion machine manufacturer in the world

Jwell, founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area. JWELL is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. Jwell has imported more than 1000 sets of CNC processing and advanced detective equipment from Korea and Japan. Jwell produces more than 2000 sets of advanced production line exported to more than 20 countries in the world every year.

JWELL MACHINERY (CHANGZHOU) CO., LTD

JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in research and development of plastic extrusion equipment. The factory area is of 400 acres; We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop. Our enterprise spirit is "Attentive, Enduring, Quick and Orderly", keeping on exploring of new extrusion field. Mostly welcome to new and old customers to visit us for investigation, guidance and cooperation. We are happy to offer powerful support!

Jwell has imported more than 1000 sets of CNC processing and advanced detective equipments from Korea and Japan.
