Oil Alcohol Single Head Piston Filler Semi Automatic Liquid Filling 20bpm
Oil Alcohol Single Head Piston Filler Semi Automatic Liquid Filling 20bpm
Oil Alcohol Single Head Piston Filler Semi Automatic Liquid Filling 20bpm
Oil Alcohol Single Head Piston Filler Semi Automatic Liquid Filling 20bpm
Specifications
Brand Name :
JINWANG
Model Number :
CBG500-1Y
Certification :
CE, ISO9001, ISO18000,ISO14000
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 Osets per month
Delivery Time :
15-30 days
Packaging Details :
wooden cases
Name :
CBG500-1Y Single Head Semi Auto Filling Machine
Applicable Bottle Size :
Φ(40-100)*(80－230)mm Round, Square, Flat Bottles
Nozzle Of Filler :
1
Filling Precision :
±1%
High Light :
50ml Semi Automatic Oil Filling Machine, Alcohol Semi Automatic Liquid Filling Machine 20bpm, Semi Automatic Piston Filling Machine
Materails :
The Frame Of Machine Is SS304
Filling Range :
20-500ml
Power :
15W
Description

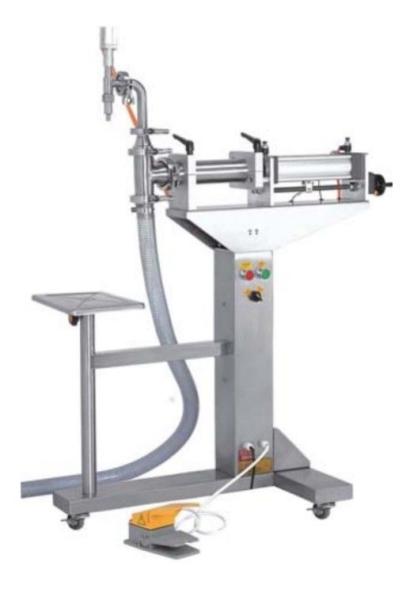

Oil Alcohol Semi Automatic Liquid Filling Machine Single Head Piston Filler 20bpm

20bottles/min,20-500ml CBG500-1Y Single Head Semi Auto Filling Machine

​1.Indroduction:

CBG500-1Y Single Head Semi Auto Filling Machine is making up with the frame, cylinder structure, pistons, three way valve, filling head and control unit. It can be used for the filling of low and high viscosity products. It is with the features of simple structure, high filling precision, easy operation and maintenance.

2. Features:

2.1 SUS304 frame (T=1.5mm), SUS316 product contact parts

2.2 Sealing rings use the material of fluorine rubber which has the features of anti abrasive and corrosive

2.3 Quick change over between different products, easy for operation and clean

2.4 Manual and Auto modes, also has reset function

2.5 Pistons are connected by floating junction which prolong the lifetime of sealing rings

2.6 Liquid Tray is installed on the filling head; it can be customaries by different products

2.7 Filling volume adjusting display, it is easy for the volume adjusting

3. Allocations:

3.1 Pneumatic Parts: Taiwan Airtac

3.2 Electrical Switch: Schneider

3.3 Solenoid Valve: Taiwan Brand

3.4 Power Switch: Mean Well

3.5 Floating Junction: Taiwan Airtac

3.6 Valve: Taiwan Airtac

4. Main Technical Parameters:

1 Capacity ≤1200 Bottles/hour (100ml)
2 Applicable Bottle Size Φ(40-100)*(80－230)mm round, square, flat bottles
3 Filling range,filling nozzles

20-500ml

1 nozzle
4 Accuracy

±1%
5 Power Source: ～220V, 50HZ
6

Power:

 15KW
7

Air Pressure:

 0.4-0.6MPA
8 External Dimension: 1000×560×1120(L×W×H) mm
9 Weight: 30KG

5. Our After-sales Service

a) Machine warranty of one year. Spare parts free of charge are supplied within one warranty year (easily damaged parts and man-made damage are exclusive). After a one-year warranty, we only charge spare parts at cost price.
b) We will provide you with long-term support in technology. We offer you an operation manual in English.
c) We can dispatch our engineer to your company for installing and debugging machines.

d) You can also dispatch engineers to our company to inspect after the production of machines is finished. We are responsible for the training of t your engineers free of charge.

e) Remote Support. In light of the ongoing health risks surrounding Covid-19, we have developed remote support procedures to keep our customers’ orders and production progressing. We are completing machine FAT via video conference call and undertaking remote installations to get new machines up and running ASAP. Documents can be screen-shared, and our teams can connect with your teams to provide the relevant training.

Oil Alcohol Single Head Piston Filler Semi Automatic Liquid Filling 20bpm
