7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
7000BPH Auto Bottle Cap Unscrambler For 80ml-1L Round Flat Bottles
Specifications
Brand Name :
JWIM
Model Number :
LP-200D
Certification :
CE, ISO9001
Place of Origin :
Changzhou, China
MOQ :
1 set
Delivery Time :
15-90 work days
Packaging Details :
wooden cases
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 Osets per month
Material :
SUS304 Frame
Capacity :
7000BPH for 500ml bottles
Applicable Bottle Diameter :
Φ45－90mm
Applicable Bottle Height :
80-230mm
Dimension :
2650*1550*1200mm
Function :
With bottle elevator and unqualified bottle rejecting
Description

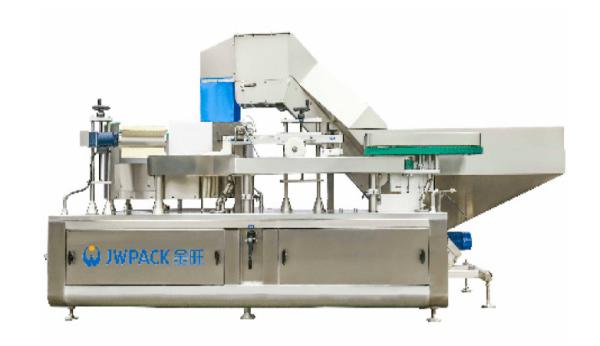

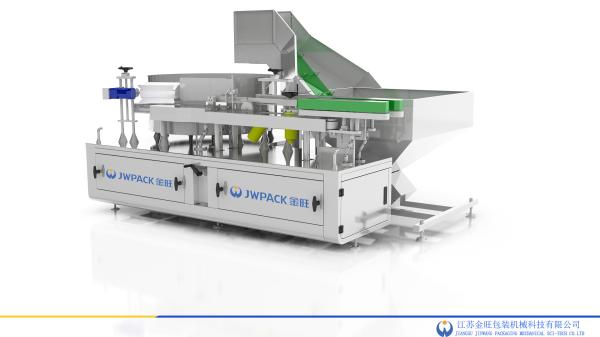

LP-200D 7000BPH Automatic Bottle Unscrambler for 80ml-1L Round & Flat Bottles

Introduction:

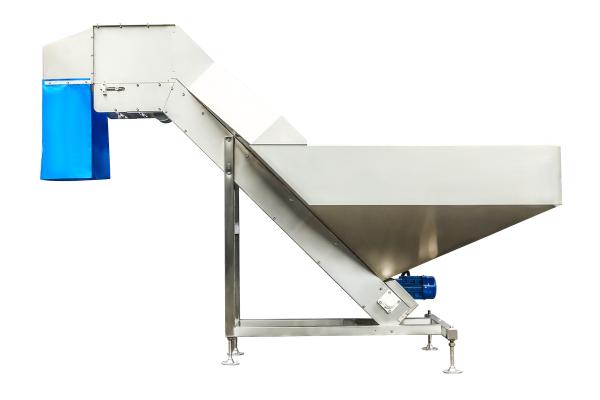

LP-200D Automatic Bottle Unscrambler is making up with the bottle elevator, unscrambling rotary plate, bottle rejecting devices, unscrambling and electrical control cabinet. It can arrange the disordered empty plastic bottles into good order. This is the upgrade version with simple structure; width adjusting and change over can be done in 10 minutes.

Features:

1.The machine is with simple structure and takes less space; it can handle the bottles from 50-1000ml.

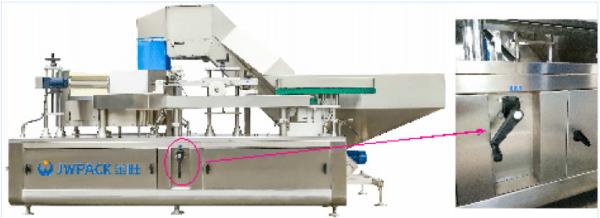

2. No modules are needed when doing change-over, adjustment is fast and simple, and the width can be adjusted by the handle within 10 minutes.

3. Coordination sensor, it will stop bottle unscrambling when there is jam of the other sections of the filling line, it will start again when the jam is cleared. It will have the perfect linkage with the other sections of the filling line.

4. Bottle mouth reverse and blowing function, this will make sure there is nothing in the bottle

5. The bottle unscramble is equipped with mechanical rejecting system, it will reject the unqualified bottles to the bottle hopper automatically.

Technical Parameters:

Model LP-200D
Applicable Bottle Size Φ45－90mm, bottle width: 45-90mm
Applicable Bottle Height 80-240mm
Capacity 100ml: 10000 Bottles/hour, 500ml: 7200 Bottles/hour
Air Pressure 0.5-0.7MPA
Power 220V, 50HZ, 2.07KW
Material SS304
Bottle Unscrambler Dimension 2650*1550*1200mm
Weight 800Kg

Allocations:

No. Name Origin Remark
1 Magnetic Switch Schneider

2 Sensor Sick
3 Power Switch Schneider
4 Solenoid Valve F.Tec
5 Circuit Breaker Schneider
6 Safety Door Switch Schneider
7 Intermediate Relay Schneider
8 Alarm Light Tayee
9 Buttons Schneider
10 Fan Sunon
11 Air Filter F.Tec
12 Worm Reducer Ucan
13 Motor Ucan
