carton automatic drop packing machine 2KW
carton automatic drop packing machine 2KW
carton automatic drop packing machine 2KW
carton automatic drop packing machine 2KW
carton automatic drop packing machine 2KW
carton automatic drop packing machine 2KW
carton automatic drop packing machine 2KW
carton automatic drop packing machine 2KW
Specifications
Brand Name :
JWIM
Model Number :
DZ-D
Certification :
CE，ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 Osets per month
Delivery Time :
15-90 work days
Packaging Details :
wooden cases
Product name :
DZ-D
Boacking speed :
3-8 boxes / min
Carton is applicable :
200-450mm long Width of 150-350mm 100-400mm
Air source :
0.5-0.7MPa.
Power Supply / Power :
~220V. 50Hz/2KW.
Machine size :
4250 × 1000 × 1740mm (L × W × H)
Weight :
About 700Kg
Description

Fully automatic drop-off type packing machine for packing of bottled, pot barrel products of various specifications.

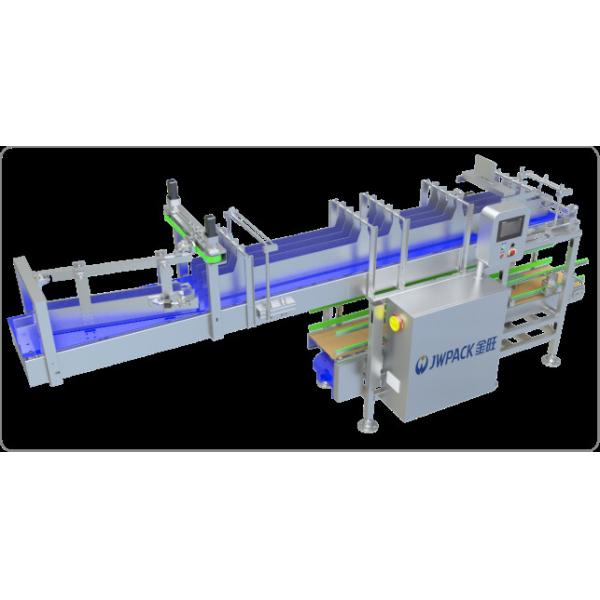

DZ-D fully automatic drop-off type packing machine

The automatic drop packing machine, also known as the drop packing machine, accurately moves the whole bottle above the carton, according to the packing requirements, the whole column into the carton through the positioning device. Suitable for automatic packing of bottled, pot and barrel products of various specifications.

carton automatic drop packing machine 2KW

Process

1, into the bottle,photoinspection bottle

carton automatic drop packing machine 2KW

2, in-box,servo partition

carton automatic drop packing machine 2KW

3, drop and out of box

carton automatic drop packing machine 2KW

Technical

1 Boacking speed 3-8 boxes / min
2 Carton is applicable 200-450mm long Width of 150-350mm 100-400mm
3 Air source 0.5-0.7MPa.
4 Power Supply / Power ~220V. 50Hz/2KW.
5 Machine size 4250 × 1000 × 1740mm (L × W × H)
6 Weight About 700Kg

Equipment dimension drawing:

carton automatic drop packing machine 2KW

Equipme

1, is widely used in pesticides, fine chemical, daily chemical, fertilizer, oil and other industries, 5-10L round, square bottles, automatic drop box.

carton automatic drop packing machine 2KW

2, adopts servo motor controlled lane whole mechanism, which is more stable and reliable. Like: 2 * 2,2 * 3. … Other packing forms can be applicable to the packing requirements of different arrangement methods.

carton automatic drop packing machine 2KW

3, has a simple structure, a small floor area and easy adjustment.

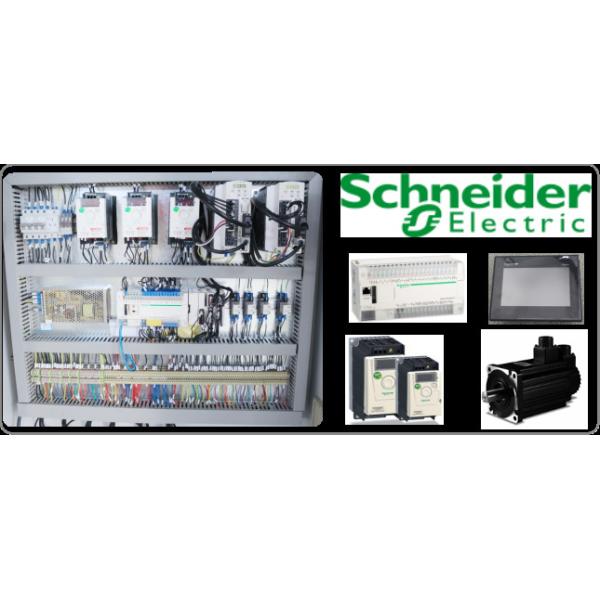

4, electric control system adopts French Schneider configuration, integrated electric control system, more stable, reliable, safe and low energy consumption.

carton automatic drop packing machine 2KW

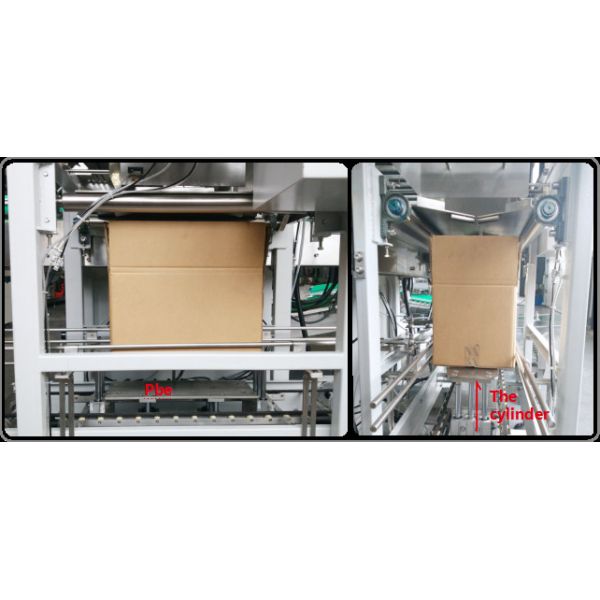

5, unpacking machine is in place under the landing board. The box devices on both sides lift the box up, the arranged bottles fall into the box, the container device goes down to the conveyor belt, and the boxes continue to the next station.

carton automatic drop packing machine 2KW

No ial First name "Said that." Product Card
1

Programmable controller

CPU.

Schneider.

Schneider
2 Touch-screen

Schneider.

Schneider
3 Converconverter

Schneider.

Schneider
4 Servo system

Schneider.

Schneider
5 Photoelectric

SICK.

Schker
6 Switch on the power supply

Schneider.

Schneider
7 Button

Schneider.

Schneider

8

Circuit breaker

Schneider.

Schneider
