Specifications
Brand Name :
JINWANG
Model Number :
KZ-2T
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 Osets per month
Delivery Time :
15-90 work days
Packaging Details :
wooden cases
Name :
KZ-2T Automatic Packing Machine
Applicable Carton size :
L 300-500mm W 200-400mm H 100-300mm
Applicable Bottle size :
Φ40-90mm H80-230mm
Pass rate :
≤99.9%
Air Pressure :
0.6-0.8MPa
Power supply :
～380V 50Hz/3.3KW
Lift Limit :
3400mm from the highest lifting point to the ground
Overload :
≤3kg (with gripper)
External Dimension :
2130×2200×2700-3400mm（L×W×H)
Weight :
1200Kg
Capacity :
≤6-8 Cases/Min
Description
6-8 Cases/Min KZ-2T Automatic Packing Machine 380V 50Hz/3.3KW
1. Introduction

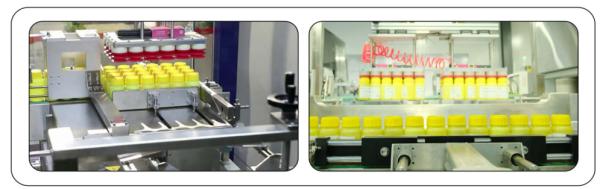

This machine is suitable for automatic packaging of regular round or square glass bottles and plastic bottles, achieving fully automatic secondary packaging of cardboard boxes. It can be applied to automated packaging of bottled products in industries such as agriculture, veterinary medicine, food, daily chemical, pharmaceutical, etc. You can choose one box per pack or two boxes per pack according to production capacity requirements.

2. Technical Parameters

1 Capacity

≤6 Cases/Min (One box, one package, excluding the middle plate)

≤8 Cases/Min (Two boxes, one package, excluding the middle plate)

*The actual production capacity changes according to the product size, packaging material and material characteristics.
2 Applicable Carton size L 300-500mm W 200-400mm H 100-300mm
3 Applicable Bottle size Φ40-90mm H80-230mm
4 Pass rate ≤99.9%
5 Air Pressure 0.6-0.8MPa
6 Power supply ～380V 50Hz/3.3KW
7 Lift Limit 3400mm from the highest lifting point to the ground
8 External Dimension 2130×2200×2700-3400mm(L×W×H)
9 Weight About 1200Kg

3. Allocations

No. Name Brand
1 PLC Schneider
2 Touch Screen Schneider
3 Frequency Converter Schneider
4 Servo System Schneider

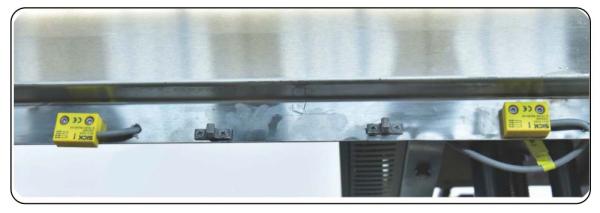

5 Photoelectric Sensor Sick
6 Proximity Switch Schneider
7 Switching Power Supply Schneider
8 Pressure Switch SMC
9 Cylinder FTEC
10 Solenoid Valve FTEC
11 Button Schneider
12 Warming Light Schneider
13 Breaker Schneider
4. Advantages

4.1. Save production cost: save labor and improve production efficiency. It can replace 2-3 packing workers.

4.2. Wide application range: suitable for packing plastic bottles, glass bottles, aluminum bottles, cartons and other packaging materials.

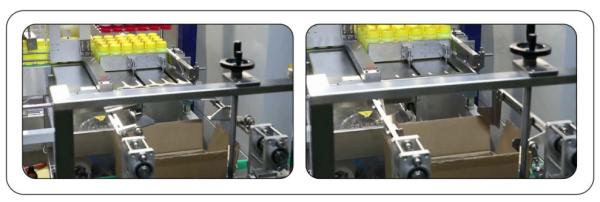

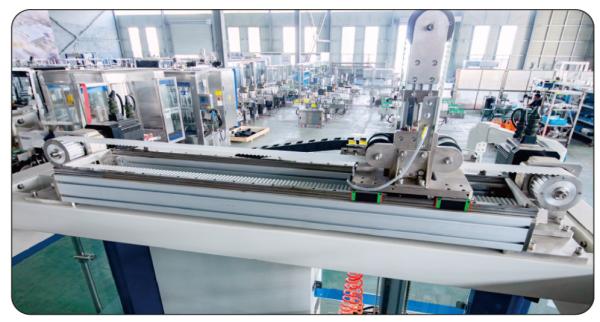

4.3. Double servo drive "cross" motion mechanism realizes bottle taking and packing, patented design, flexible and convenient adjustment.

4.4. Convenient adjustment: through the replacement of different packing molds (bottle gripper, suction cup, gripper, etc.), the quick assembly connection can quickly replace the specifications. The owner is required to provide bottles, caps and supporting cartons. Our company needs to make packing molds according to packaging materials and cartons.

4.5. Safety door switch is added to the machine to open the door and shut down during production to protect the safety of personnel and machine. (this function is optional)

4.6. The electric control system of the whole machine is uniformly configured by Schneider, France, with good compatibility and low energy consumption, ensuring the stability and reliability of the machine. Compared with the mixed use of various brands adopted by other manufacturers, Schneider's European control system has more advantages in protection level, stability and reliability, safety level and service life, especially in subsequent upgrading.
