Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine
Specifications
Brand Name :
Jinwang
Model Number :
TN-150
Certification :
CE, ISO9001
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 set per month
Delivery Time :
15-90 Working Days
Packaging Details :
Wooden Case Packing
Capacity :
≤7000 BPH(100ml)
Label Size :
50-280*40-140mm(L*H)
Labeling Accuracy :
±1mm
Weight :
~234Kg
External Dimension :
2200×1200×1350mm(L×W×H)
Applicable bottle diameter :
Φ30-95mm
Description

TN-150 Intelligent Self-adhesive Labeling Machine

1.Introduction

TN-150DL intelligent self-adhesive labeling machine adopts programmable control, touch human-machine interface, servo-driven labeling, the whole machine is easy to operate, intuitive, and has a fault display function.

It is suitable for automatic labeling of self-adhesive labels of various round containers.

Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine

2.Machine Dimension

Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine

3.Technical Parameters

1 Labeling speed

≤7000 BPH(100ml)

*Actual capacity varies according to product size, package material, material characteristics, etc.
2 Bottle Diameter Φ30-95mm
3 Label Size 50-280*40-140mm(L*H)
4 Label Length 50-280mm
5 Labeling precision ±1mm 95% *Labeling accuracy varies according to material and label material.
6 Applicable Label

Label roll inner diameter Φ76.2mm Maximum label roll outer diameter Φ340mm

Label backing width 16~200mm
7 Power Supply/Power ~220V 50Hz/1.1KW
8 Machine Size 2200×1200×1350mm(L×W×H)
9 Weight ~234Kg

4.Electrical Configuration

No. Name Brand
1 PLC Inovance
2 Touch Screen Inovance
3 Inverter Inovance
4 Servo motor Inovance
5 Switching Power Supply Schneider
6 Breaker Schneider

5.Working Process

Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine

6.Advantage

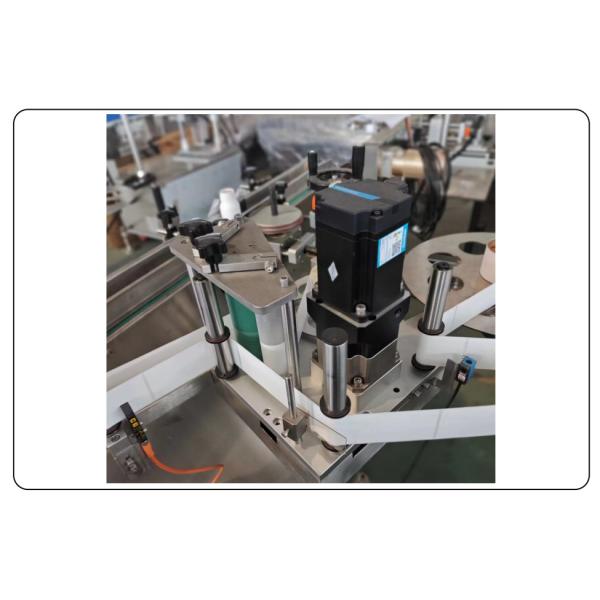

6.1 Servo motor + reducer drive labeling mechanism, supporting double buckle paper pressure mechanism, improve the stability of labeling.

Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine

6.2 The label feeder adopts wear-resistant rubber produced by special process, made of drive roller structure: excellent friction, non-slip characteristics to ensure the lasting stability of the label feeding function.

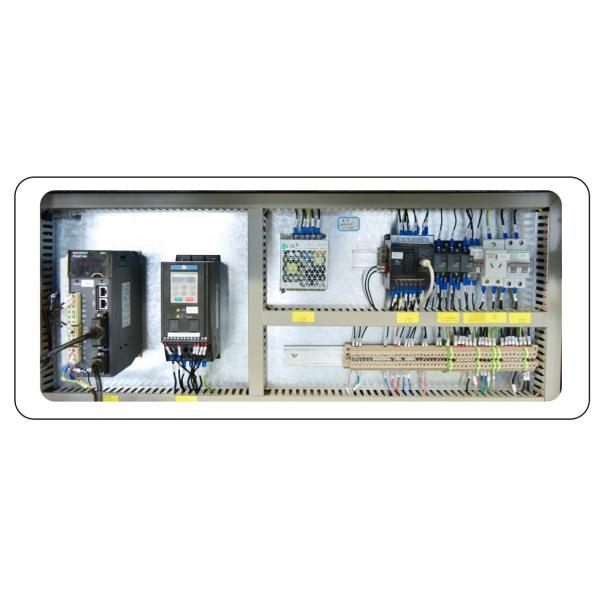

6.3 The whole machine electronic control system adopts domestic famous brand, integrated electronic control system, more economical and applicable.

Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine

6.4 The independent motor controls the speed of rolling label, which is easy to adjust and saves adjustment time.

Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine

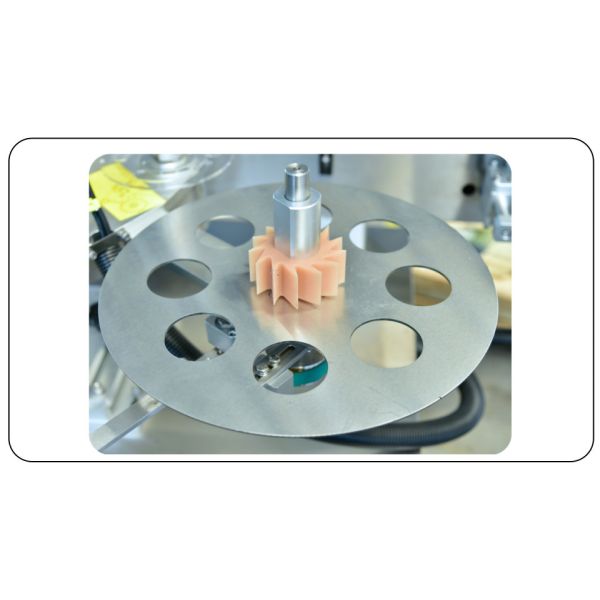

6.5 Adopting single bottle dividing wheel structure, making the spacing of bottles to be labeled more accurate and consistent.

6.6 The center sleeve of the label placing tray adopts double-layer fixation, which can meet the label rolls with different sizes of label rolls within a certain range.

6.7 Put the label tray center sleeve using soft polyurethane production, can meet a certain range of label rolls within the set of different sizes of label rolls

Programmable Control TN-150 Intelligent Self-Adhesive Labeling Machine

7.Support and Services:

Labeling Machine Technical Support & Services

Our technical support and services for the Labeling Machine are designed to provide the most comprehensive assistance for our customers. Our team of experienced engineers and technicians are available to provide assistance with installation, maintenance, troubleshooting, and repair services.

We offer in-house training on the operation and maintenance of the machine to ensure that our customers can get the most out of their purchase. Additionally, we provide online support through our website, which includes FAQs, product manuals, and other helpful resources.

If you ever have any questions or concerns about the Labeling Machine our team of experts are available to help. We believe that customer satisfaction is our top priority, and we strive to provide the best technical support and services possible.

8.Packing and Shipping:

Packaging and Shipping

The Labeling Machine will be securely packaged in a cardboard box to protect it during shipping. We will use a reliable carrier to ship the product to the customer's address.

9.FAQ:

Q1: What is the Brand Name of the Labeling Machine?
A1: The Brand Name of the Labeling Machine is JWIM.
Q2: What is the Model Number of the Pesticide Labeling Machine?
A2: The Model Number of the Bag Packing Machine is TN-150.
Q3: Where is the Labeling Machine manufactured?
A3: The Labeling Machine is manufactured in China.
Q4: Does the Labeling Machine require special maintenance?
A4: The Labeling Machine requires regular maintenance to ensure proper operation.
Q5: What is the capacity of the Labeling Machine?
A5: The capacity of the Labeling Machine is determined by the size of the container to be filled.
